CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

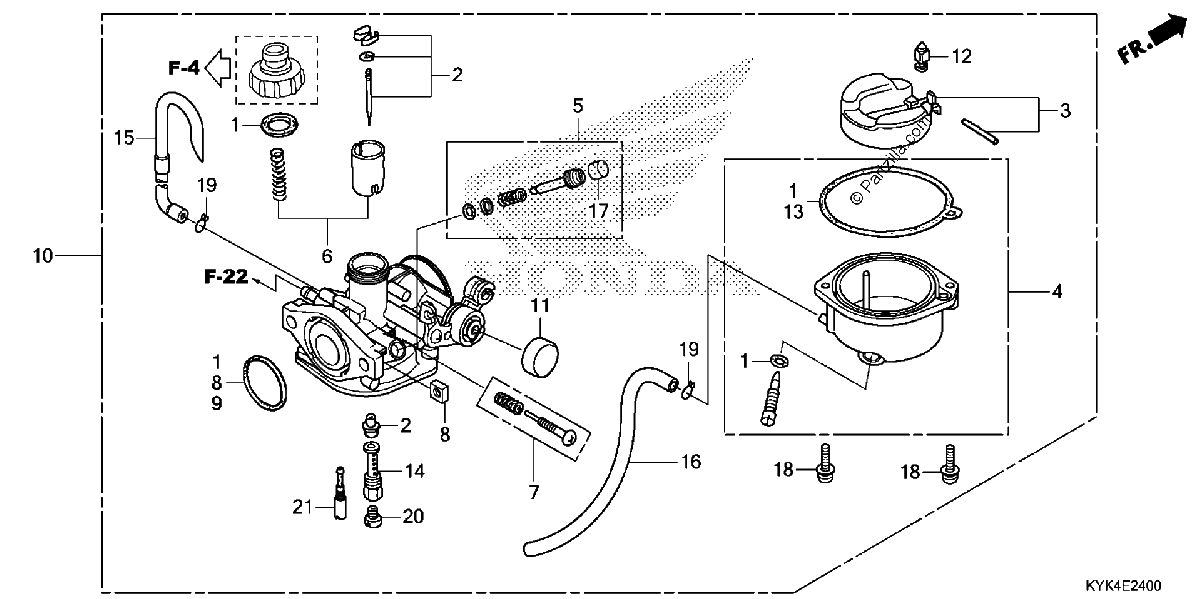

Diagrama de CARBURETOR

Repuestos

#1
16010-KYK-911
GASKET SET
$22.24¢11 121
1
#2
16012-KYK-912
NEEDLE SET, JET
$25.02¢12 512
1
#3
16013-883-005
FLOAT SET
$31.07¢15 536
1
#4
16015-KYK-921
CHAMBER SET, FLOAT
$83.63¢41 814
1
#5
16016-KYK-911
SCREW SET
$23.17¢11 586
1
#6
16022-KYK-921
VALVE SET, THROTTLE
$34.57¢17 284
1
#7
16028-187-003
SCREW SET B
$17.47¢8 734
1
#7
16028-GC8-004
SCREW SET B
$17.47¢8 734
1
#8
16041-GB1-910
NUT SET, SQUARE
$6.18¢3 088
1
#9
16075-GHB-B40
O-RING (2.4X25)
$6.67¢3 335
1
#10
16100-KYK-912
CARBURETOR ASSY. (PB5PF A)
$277.15¢138 575
1
#11
16148-141-881
CAP, CHOKE DUST
$5.30¢2 651
1
#12
16155-883-005
VALVE, FLOAT
$21.47¢10 735
1
#13
16163-KWS-901
GASKET, FLOAT CHAMBER
$2.13¢1 064
1
#14
16165-GCF-670
HOLDER, NEEDLE JET
$28.11¢14 053
1
#15
16198-KYK-921
TUBE, AIR VENT
$7.93¢3 968
1
#16
16199-KYK-921
TUBE, OVERFLOW
$9.71¢4 853
1
#17
16312-KYK-911
CAP, ADJUSTING SCREW
$3.21¢1 604
1
#18
93892-04018-08
SCREW-WASHER (4X18)
$1.15¢575
1
#19
95002-02659
CLIP, TUBE (B6.5)
$1.30¢650
1
#20
99101-KYK-0680
JET, MAIN (#68)
$8.13¢4 065
1
#21
99103-GB0-0380
JET, SLOW (#38)
$15.41¢7 705
1
