SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

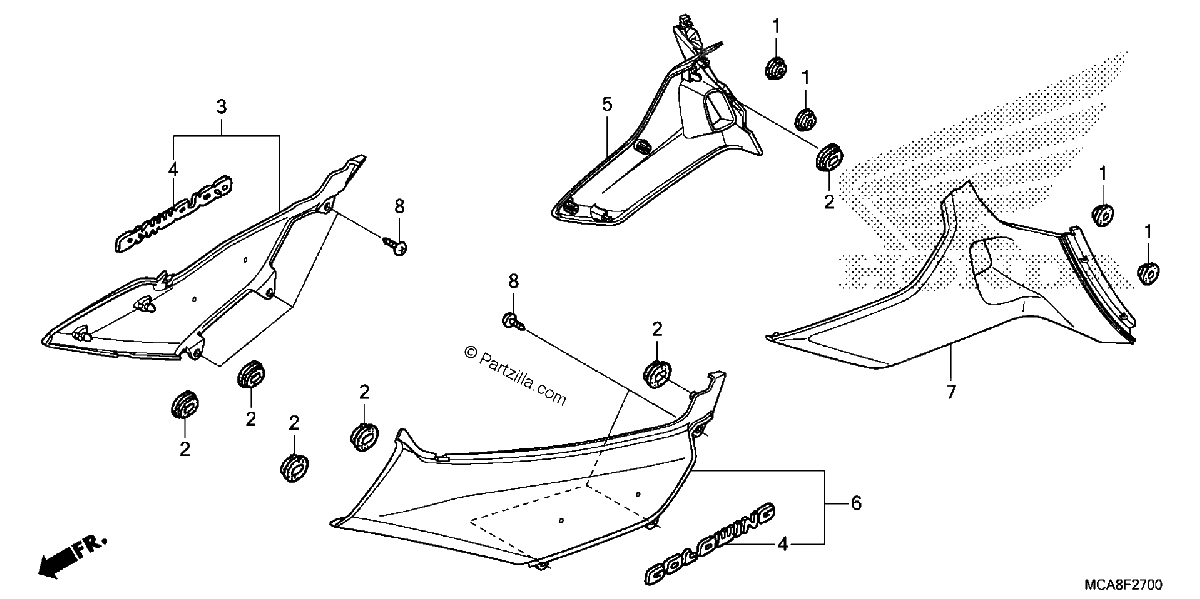

Diagrama de SIDE COVER

Repuestos

#001
83504-GE0-000
GROMMET, RR. COVER
$3.36¢1 679
1
#1
83504-GE0-000
GROMMET, RR. COVER
$3.36¢1 679
1
#002
83551-GE2-000
GROMMET, AIR CLEANER HOUSING
$6.27¢3 134
1
#2
83551-GE2-000
GROMMET, AIR CLEANER HOUSING
$6.27¢3 134
1
#003
83600-MCA-S40ZA
COVER SET, R. SIDE *B197M* (WL) (GLINT WAVE BLUE METALLIC)
$311.91¢155 957
1
#3
83600-MCA-S40ZA
COVER SET, R. SIDE *B197M* (WL) (GLINT WAVE BLUE METALLIC)
$311.91¢155 957
1
#003
83600-MCA-S40ZD
COVER SET, R. SIDE *R345C* (WL) (CANDY ALIZARIN RED)
$311.91¢155 957
1
#3
83600-MCA-S40ZD
COVER SET, R. SIDE *R345C* (WL) (CANDY ALIZARIN RED)
$311.91¢155 957
1
#3
83600-MCA-S40ZE
COVER SET, Right SIDE YR316M (WL)(TITANIUM BLADE METALLIC)
$286.97¢143 485
1
#003
83600-MCA-S40ZE
COVER SET, Right SIDE YR316M (WL)(TITANIUM BLADE METALLIC)
$286.97¢143 485
1
#003
83600-MCA-S40ZF
COVER SET, R. SIDE *NHA30M* (WL) (DIGITAL SILVER METALLIC)
$286.94¢143 468
1
#3
83600-MCA-S40ZF
COVER SET, R. SIDE *NHA30M* (WL) (DIGITAL SILVER METALLIC)
$286.94¢143 468
1
#004
83605-MCA-A40
EMBLEM, SIDE COVER
$36.73¢18 366
1
#4
83605-MCA-A40
EMBLEM, SIDE COVER
$36.73¢18 366
1
#5
83610-MCA-S40
PROTECTOR SET, R. SIDE
$177.74¢88 872
1
#005
83610-MCA-S40
PROTECTOR SET, R. SIDE
$177.74¢88 872
1
#006
83700-MCA-S40ZA
COVER SET, L. SIDE *B197M* (WL) (GLINT WAVE BLUE METALLIC)
$311.91¢155 957
1
#6
83700-MCA-S40ZA
COVER SET, L. SIDE *B197M* (WL) (GLINT WAVE BLUE METALLIC)
$311.91¢155 957
1
#006
83700-MCA-S40ZD
COVER SET, L SIDE R345C (WL)(CANDY ALIZARIN RED)
$311.91¢155 957
1
#6
83700-MCA-S40ZD
COVER SET, L SIDE R345C (WL)(CANDY ALIZARIN RED)
$311.91¢155 957
1
#6
83700-MCA-S40ZE
COVER SET, L SIDE YR316M (WL)(TITANIUM BLADE METALLIC)
$286.97¢143 485
1
#006
83700-MCA-S40ZE
COVER SET, L SIDE YR316M (WL)(TITANIUM BLADE METALLIC)
$286.97¢143 485
1
#006
83700-MCA-S40ZF
COVER SET, L. SIDE *NHA30M* (WL) (DIGITAL SILVER METALLIC)
$275.97¢137 983
1
#6
83700-MCA-S40ZF
COVER SET, L. SIDE *NHA30M* (WL) (DIGITAL SILVER METALLIC)
$275.97¢137 983
1
#006
83700-MCA-S41ZA
CVR, L SI B197M
$311.91¢155 957
1
#006
83700-MCA-S41ZD
CVR, L SI R345C
$311.91¢155 957
1
#006
83700-MCA-S41ZF
SET ILLUS NHA30M
$275.97¢137 983
1
#007
83710-MCA-S40
PROTECTOR SET, L. SIDE
$177.74¢88 872
1
#7
83710-MCA-S40
PROTECTOR SET, L. SIDE
$177.74¢88 872
1
#008
93903-25180
SCREW, TAPPING (5X10)
$1.07¢535
1
#8
93903-25180
SCREW, TAPPING (5X10)
$1.07¢535
1
