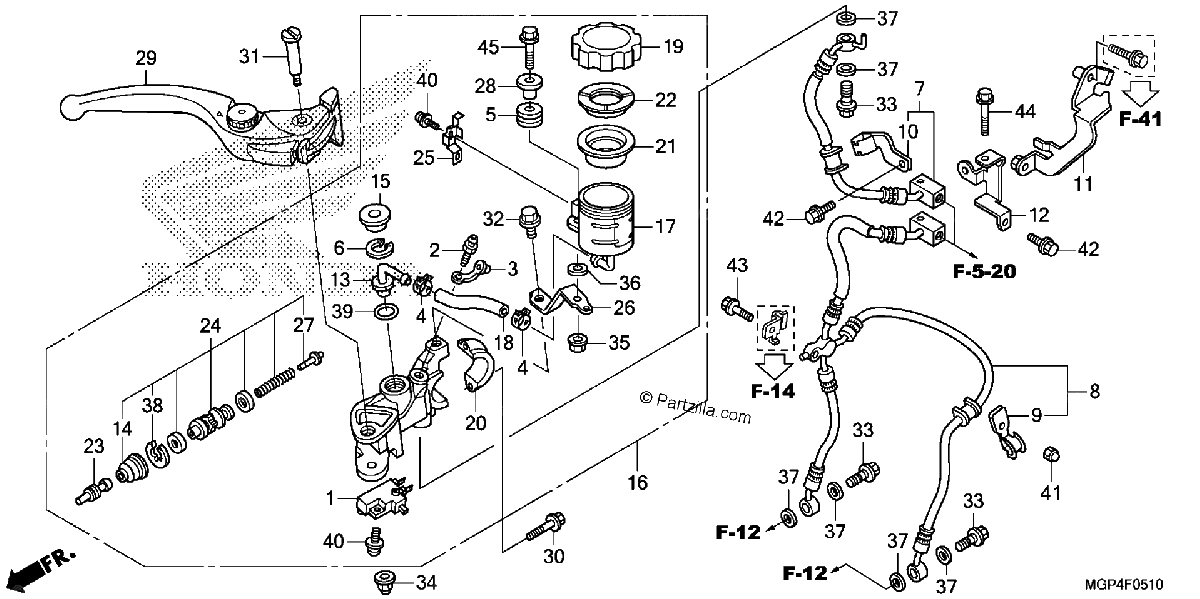

FRONT BRAKE MASTER CYLINDER 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SWITCH ASSY., FR. STOP
$17.66¢8 831
#2
SCREW, BLEEDER (NISSIN)
$9.63¢4 813
#3
CAP, BLEEDER
$6.13¢3 063
#4
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
#5
RUBBER, OIL CUP
$5.99¢2 994
#6
CIRCLIP, Rear MASTER CYLINDER
$4.63¢2 313
#7
HOSE A, Front BRAKE
$68.65¢34 325
#8
HOSE B, FR. BRAKE
$166.66¢83 331
#9
CLAMP A, FR. BRAKE HOSE
$4.69¢2 344
#10
CLAMP B, FR. BRAKE HOSE
$7.25¢3 625
#11
STAY A, FR. BRAKE HOSE
$20.09¢10 044
#12
STAY B, FR. BRAKE HOSE
$10.38¢5 188
#13
CONNECTOR, MASTER CYLINDER
$10.99¢5 494
#14
BOOT
$15.29¢7 644
#15
COVER, DUST
$5.04¢2 519
#16
MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)
$346.51¢173 256
#16
MASTER CYLINDER SUB-ASSY., FR. (COO) (NISSIN)
$346.51¢173 256
#17
CUP, OIL
$11.50¢5 750
#18
HOSE, MASTER CYLINDER OIL
$6.52¢3 262
#19
CAP, OIL CUP
$21.39¢10 694
#20
HOLDER, MASTER CYLINDER
$13.79¢6 894
#21
DIAPHRAGM
$10.59¢5 294
#22
PLATE, DIAPHRAGM
$4.91¢2 456
#23
ROD, PUSH
$17.05¢8 525
#24
MASTER CYLINDER SET
$62.41¢31 206
#25
PLATE, STOP
$6.61¢3 306
#26
STAY, FR. MASTER CYLINDER
$8.05¢4 025
#27
GUIDE, SPRING
$5.71¢2 856
#28
COLLAR (6.3X13)
$5.88¢2 938
#29
LEVER ASSY., R. HANDLE
$59.13¢29 563
#29
LEVER ASSY., R. HANDLE (COO)
$59.13¢29 563
#30
BOLT, FLANGE (6X22)
$1.85¢925
#31
BOLT, HANDLE LEVER
$7.05¢3 525
#32
BOLT, FLANGE (6X12)
$3.84¢1 919
#33
BOLT, OIL (10X22)
$8.89¢4 444
#34
NUT, CAP (6MM)
$2.76¢1 381
#35
NUT, U (6MM)
$8.39¢4 194
#36
WASHER (6X16)
$1.70¢850
#37
WASHER, OIL BOLT
$4.85¢2 425
#38
CIRCLIP
$2.91¢1 456
#39
O-RING (14.8X2.4)
$3.30¢1 650
#40
SCREW-WASHER (4X12)
$1.72¢862
#40
SCREW-WASHER (4X12)
$1.72¢862
#41
NUT, CAP (6MM)
$1.99¢994
#42
BOLT, FLANGE (6X12)
$2.31¢1 156
#43
BOLT, FLANGE (6X18)
$1.63¢813
#44
BOLT, FLANGE (6X35)
$2.79¢1 394
#45
BOLT, FLANGE (6X28)
$2.31¢1 156
