RADIATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

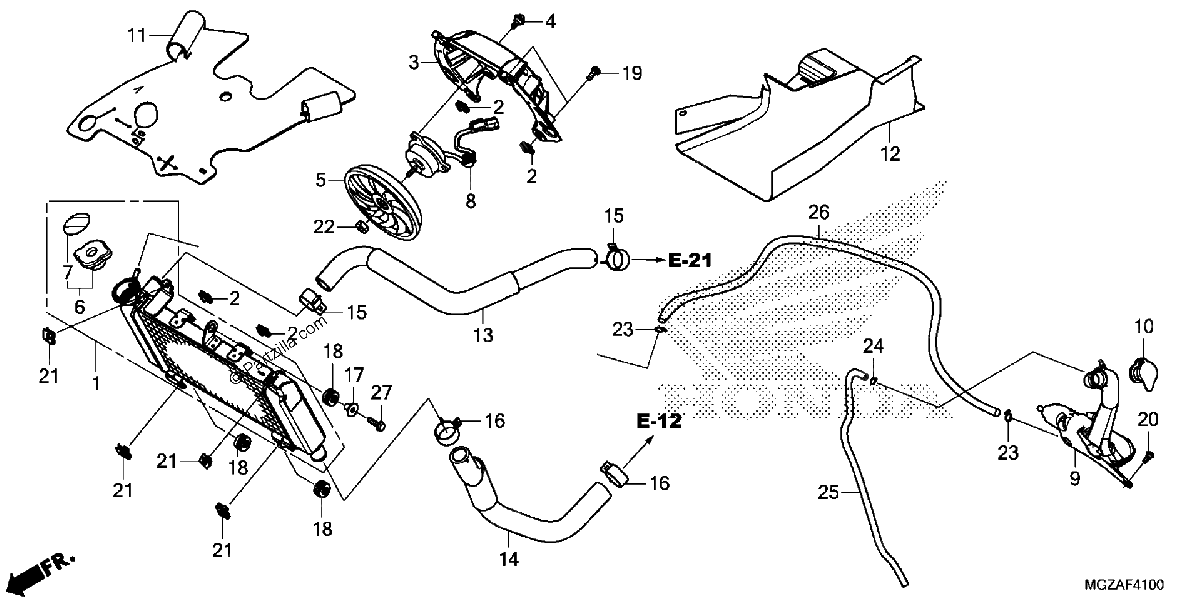

Diagrama de RADIATOR

Repuestos

#001
19010-MGZ-306
RADIATOR (COO)
$229.70¢114 851
1
#1
19010-MGZ-306
RADIATOR (COO)
$229.70¢114 851
1
#002
19014-KEA-003
NUT, SETTING (6MM)
$3.45¢1 725
1
#2
19014-KEA-003
NUT, SETTING (6MM)
$3.45¢1 725
1
#003
19015-MGZ-J01
SHROUD
$14.87¢7 435
1
#3
19015-MGZ-J01
SHROUD
$14.87¢7 435
1
#4
19016-KEA-003
SCREW, PAN (4X8.5)
$1.92¢960
1
#004
19016-KEA-003
SCREW, PAN (4X8.5)
$1.92¢960
1
#005
19020-MGS-D31
FAN, COOLING (TOYO)
$42.38¢21 189
1
#5
19020-MGS-D31
FAN, COOLING (TOYO)
$42.38¢21 189
1
#006
19037-GEE-710
CAP, RADIATOR
$32.35¢16 175
1
#6
19037-GEE-710
CAP, RADIATOR
$32.35¢16 175
1
#007
19046-PAA-A00
LABEL, RADIATOR CAP
$3.36¢1 679
1
#7
19046-PAA-A00
LABEL, RADIATOR CAP
$3.36¢1 679
1
#008
19080-MGZ-J01
MOTOR ASSY., FAN (TOYO)
$147.11¢73 554
1
#8
19080-MGZ-J01
MOTOR ASSY., FAN (TOYO)
$147.11¢73 554
1
#009
19101-MGZ-J00
TANK, RADIATOR RESERVE
$11.05¢5 526
1
#9
19101-MGZ-J00
TANK, RADIATOR RESERVE
$11.05¢5 526
1
#010
19109-KBP-900
CAP, RESERVE TANK
$1.89¢943
1
#10
19109-KBP-900
CAP, RESERVE TANK
$1.89¢943
1
#11
19126-MGZ-J00
RUBBER, HEAT GUARD
$33.22¢16 612
1
#011
19126-MGZ-J00
RUBBER, HEAT GUARD
$33.22¢16 612
1
#012
19127-MGZ-J01
RUBBER, RR. HEAT GUARD
$35.42¢17 710
1
#12
19127-MGZ-J01
RUBBER, RR. HEAT GUARD
$35.42¢17 710
1
#13
19501-MGZ-J00
HOSE, RADIATOR (UPPER)
$38.25¢19 124
1
#013
19501-MGZ-J00
HOSE, RADIATOR (UPPER)
$38.25¢19 124
1
#14
19502-MGZ-J00
HOSE, RADIATOR (LOWER)
$24.62¢12 311
1
#014
19502-MGZ-J00
HOSE, RADIATOR (LOWER)
$24.62¢12 311
1
#15
19531-MGZ-J00
CLIP, WATER HOSE (D27)
$2.36¢1 179
1
#015
19531-MGZ-J00
CLIP, WATER HOSE (D27)
$2.36¢1 179
1
#016
19533-MGZ-J00
CLIP, WATER HOSE (D30)
$4.30¢2 151
1
#16
19533-MGZ-J00
CLIP, WATER HOSE (D30)
$4.30¢2 151
1
#17
61102-KTY-D30
COLLAR, RADIATOR MOUNTING
$4.47¢2 237
1
#017
61102-KTY-D30
COLLAR, RADIATOR MOUNTING
$4.47¢2 237
1
#18
61304-415-000
RUBBER, HEADLIGHT CASE MOUNTING
$3.86¢1 932
1
#018
61304-415-000
RUBBER, HEADLIGHT CASE MOUNTING
$3.86¢1 932
1
#019
90120-KCR-003
BOLT-WASHER (6X16)
$4.90¢2 449
1
#19
90120-KCR-003
BOLT-WASHER (6X16)
$4.90¢2 449
1
#20
90134-KPP-T00
SCREW, PAN (5X14)
$1.13¢564
1
#020
90134-KPP-T00
SCREW, PAN (5X14)
$1.13¢564
1
#021
90303-MGZ-J40
NUT, CLIP (6MM)
$1.26¢633
1
#21
90303-MGZ-J40
NUT, CLIP (6MM)
$1.26¢633
1
#22
94001-03000-0S
NUT, HEX. (3MM)
$1.23¢615
1
#022
90315-MFL-003
NUT, FLANGE (3MM)
$2.75¢1 374
1
#022
94001-03000-0S
NUT, HEX. (3MM)
$1.23¢615
1
#22
90315-MFL-003
NUT, FLANGE (3MM)
$2.75¢1 374
1
#23
95002-02100
CLIP, TUBE (B10)
$2.24¢1 121
1
#023
95002-02100
CLIP, TUBE (B10)
$2.24¢1 121
1
#024
95002-50000
CLIP, TUBE (C9)
$1.41¢707
1
#24
95002-50000
CLIP, TUBE (C9)
$1.41¢707
1
#025
95005-50003-30M
BULK HOSE, VACUUM (5X3000) (5X300)
$22.44¢11 218
1
#25
95005-50003-30M
BULK HOSE, VACUUM (5X3000) (5X300)
$22.44¢11 218
1
#26
95005-55003-20M
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$36.70¢18 348
1
#026
95005-55003-20M
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$36.70¢18 348
1
#027
95701-06022-07
BOLT, FLANGE (6X22)
$1.12¢558
1
#27
95701-06022-07
BOLT, FLANGE (6X22)
$1.12¢558
1
