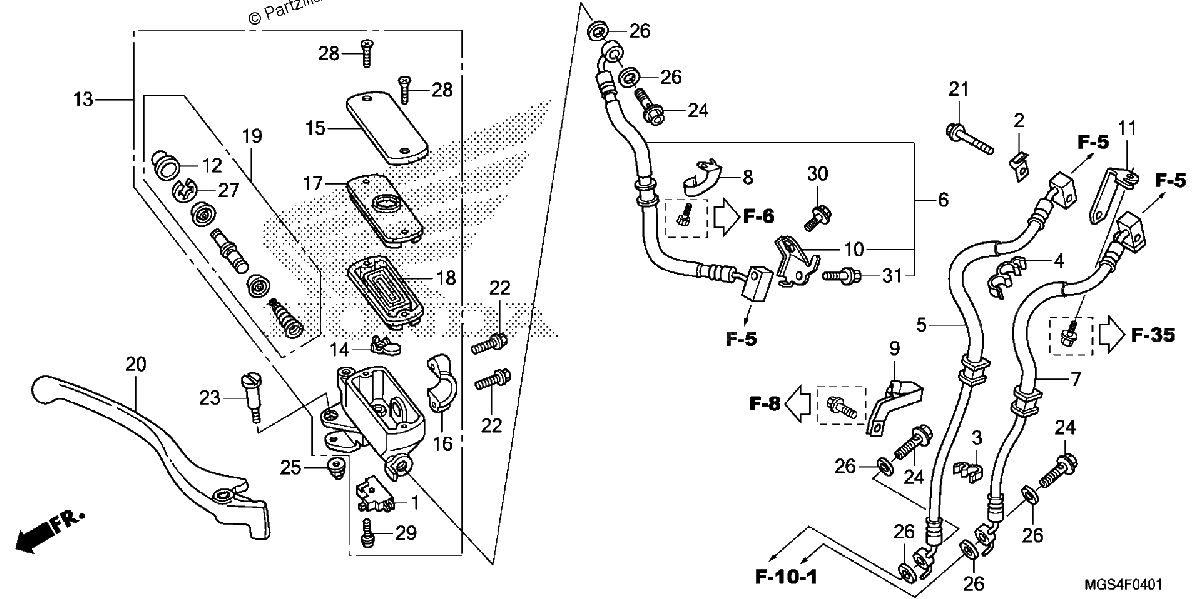

FRONT BRAKE MASTER CYLINDER 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
#2
CLAMP B, SENSOR WIRE
$2.91¢1 456
#3
CLAMP, ABS WIRE (D8.5)
$4.00¢2 000
#4
CLAMP, ABS WIRE (D12)
$3.17¢1 588
#5
HOSE C, BRAKE SUB
$95.54¢47 769
#6
HOSE A, FR. BRAKE
$72.88¢36 438
#7
HOSE D, FR. BRAKE
$83.44¢41 719
#8
CLAMP A, Front BRAKE HOSE
$6.99¢3 494
#9
CLAMP B, FR. BRAKE HOSE
$13.46¢6 731
#10
STAY, FR. BRAKE HOSE
$7.64¢3 819
#11
STAY, FR. BRAKE HOSE
$7.76¢3 881
#12
BOOT
$14.24¢7 119
#13
MASTER CYLINDER SUB-Assembly., Front.(COO)
$360.26¢180 131
#14
PROTECTOR
$5.20¢2 600
#15
CAP, MASTER CYLINDER (NISSIN)
$26.02¢13 013
#16
HOLDER, MASTER CYLINDER
$15.74¢7 869
#17
PLATE, DIAPHRAGM
$12.36¢6 181
#18
DIAPHRAGM
$17.68¢8 838
#19
MASTER CYLINDER SET (NISSIN)
$33.21¢16 606
#20
LEVER, R. HANDLE (COO)
$21.78¢10 888
#21
BOLT, FLANGE (6X35)
$2.31¢1 156
#22
BOLT, FLANGE (6X22)
$1.85¢925
#23
BOLT, HANDLE LEVER PIVOT
$11.03¢5 513
#24
BOLT, OIL (10X22)
$8.89¢4 444
#25
NUT, CAP (6MM)
$2.76¢1 381
#26
WASHER, OIL BOLT
$4.85¢2 425
#27
CIRCLIP
$3.10¢1 550
#28
SCREW, FLAT (4X12)
$1.16¢581
#28
SCREW, FLAT (4X12)
$1.16¢581
#29
SCREW-WASHER (4X12)
$1.72¢862
#29
SCREW-WASHER (4X12)
$1.72¢862
#30
BOLT, FLANGE (6X14)
$1.77¢888
#31
BOLT, FLANGE (6X12)
$2.31¢1 156
