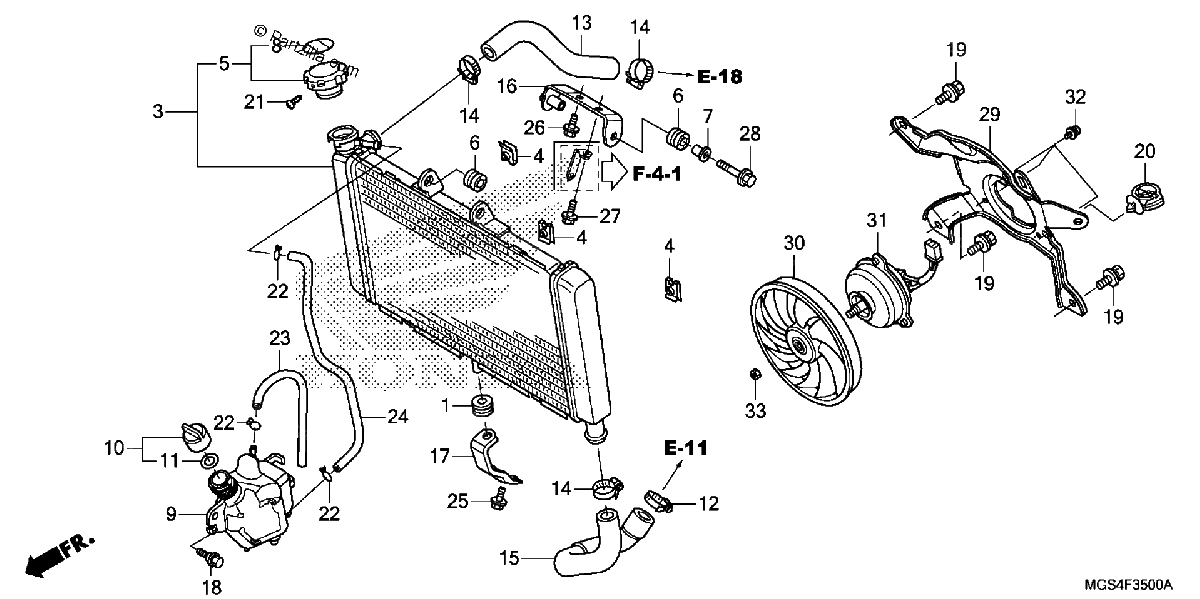

RADIATOR
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
RUBBER, CUSHION
$5.81¢2 906
#2
SHROUD ASSY.
No Disponible
#3
RADIATOR (COO)
$1129.63¢564 813
#4
NUT, SETTING (6MM)
$3.75¢1 875
#5
CAP, RADIATOR
$47.33¢23 663
#6
RUBBER, RADIATOR MOUNTING
$2.34¢1 169
#7
COLLAR, RADIATOR MOUNTING
$3.20¢1 600
#8
SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)
$10.79¢5 394
#9
TANK, RADIATOR RESERVE
$50.03¢25 013
#10
CAP ASSY., RESERVE TANK
$8.36¢4 181
#11
GASKET, RESERVE TANK
$4.54¢2 269
#12
CLAMP, WATER HOSE (35MM)
$12.11¢6 056
#13
HOSE, RADIATOR (UPPER)
$16.85¢8 425
#14
CLAMP, WATER HOSE
$8.58¢4 288
#15
HOSE, RADIATOR (LOWER)
$29.42¢14 712
#16
STAY, RADIATOR (UPPER)
$10.71¢5 356
#17
STAY, RADIATOR (LOWER) *NH167MU* (IRON NAIL SILVER METALLIC-U)
$10.04¢5 019
#18
BOLT, FLANGE (6MM)
$3.65¢1 825
#19
BOLT-WASHER (6X12)
$2.48¢1 238
#20
CLIP, HARNESS
$4.01¢2 006
#21
SCREW, TAPPING (3X8)
$1.16¢581
#22
CLIP, TUBE (B10)
$2.44¢1 219
#23
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$39.89¢19 944
#24
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$39.89¢19 944
#25
BOLT, FLANGE (6X14)
$1.39¢694
#26
BOLT, FLANGE (6X14)
$2.09¢1 044
#27
BOLT, FLANGE (6X18)
$2.09¢1 044
#28
BOLT, FLANGE (6X25)
$2.31¢1 156
#29
SHROUD
$104.01¢52 006
#30
FAN, COOLING (TOYO)
$46.06¢23 031
#31
MOTOR Assembly., FAN
$278.01¢139 006
#32
SCREW-WASHER (4X6)
$1.47¢737
#33
NUT, HEX. (3MM)
$1.34¢669
