PARKING BRAKE LEVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

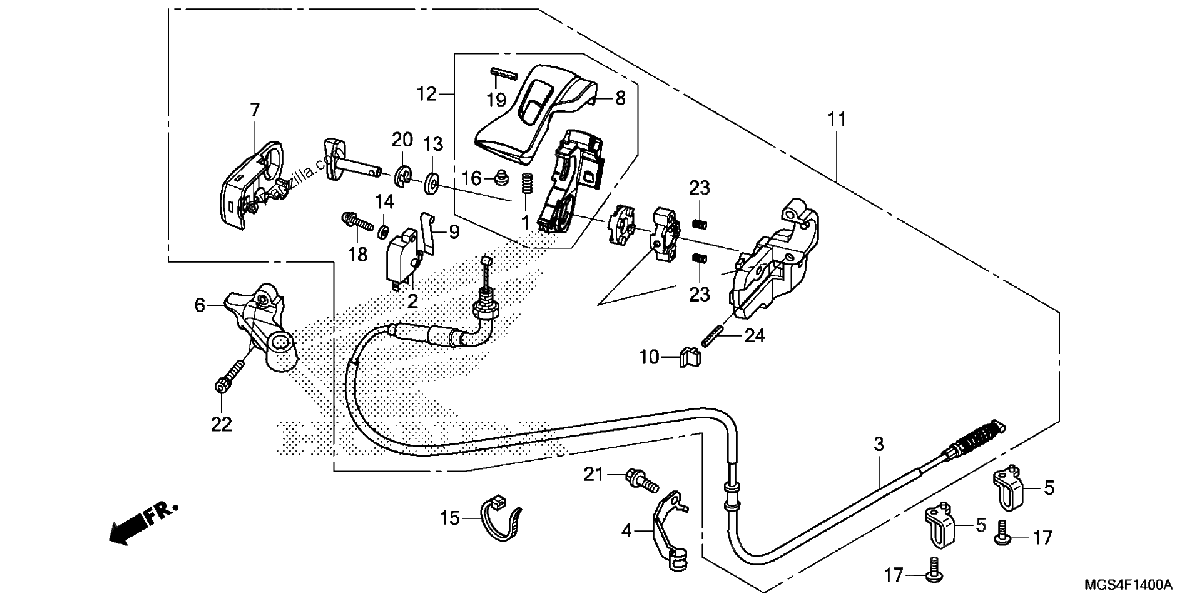

Diagrama de PARKING BRAKE LEVER

Repuestos

#1
24271-743-000
SPRING, BALL SETTING
$2.92¢1 463
1
#2
35340-MGS-D31
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
1
#3
43450-MGS-D51
CABLE, PARKING BRAKE
$71.31¢35 656
1
#4
43455-MGS-D50
CLAMP, PARKING BRAKE
$11.92¢5 962
1
#5
43456-MGS-D70
GUIDE, PARKING BRAKE
$8.81¢4 406
1
#6
47111-MGS-D50
HOLDER (UPPER)
$70.20¢35 100
1
#7
47117-MGS-D50
COVER, HOLDER
$4.91¢2 456
1
#8
47152-MGS-D50
LEVER, PARKING TOP
$14.29¢7 144
1
#9
47154-MGE-D00
SPRING, SWITCH
$10.94¢5 469
1
#10
47156-MGE-D00
CAP, HOLDER (LOWER)
$2.97¢1 487
1
#11
47200-MGS-D50
LEVER ASSY., PARKING
$553.11¢276 556
1
#12
47210-MGS-D50
LEVER, PARKING
$57.59¢28 794
1
#13
90401-430-000
WASHER (10.2MM)
$2.21¢1 106
1
#14
90515-046-810
WASHER, PLAIN (4X8)
$1.60¢800
1
#14
90515-GN5-910
WASHER, PLAIN (4X8)
$1.60¢800
1
#15
90651-KV6-003
BAND, WIRE (165MM) (BLACK)
$3.65¢1 825
1
#16
90801-SB0-000
PLUG, CHANGE REINFORCEMENT
$4.65¢2 325
1
#17
93500-05016-0G
SCREW, PAN (5X16)
$1.16¢581
1
#18
93892-04014-07
SCREW-WASHER (4X14)
$1.27¢638
1
#19
94305-30283
PIN, SPRING (3X28)
$1.95¢975
1
#20
94540-09018
E-RING (9MM)
$4.96¢2 481
1
#21
96001-06014-00
BOLT, FLANGE (6X14)
$2.31¢1 156
1
#22
96600-06020-07
BOLT, SOCKET (6X20)
$1.34¢669
1
#23
47155-MGE-D00
SPRING, PLUNGER
$4.39¢2 194
1
#24
94305-30223
PIN, SPRING (3X22)
$1.54¢769
1
