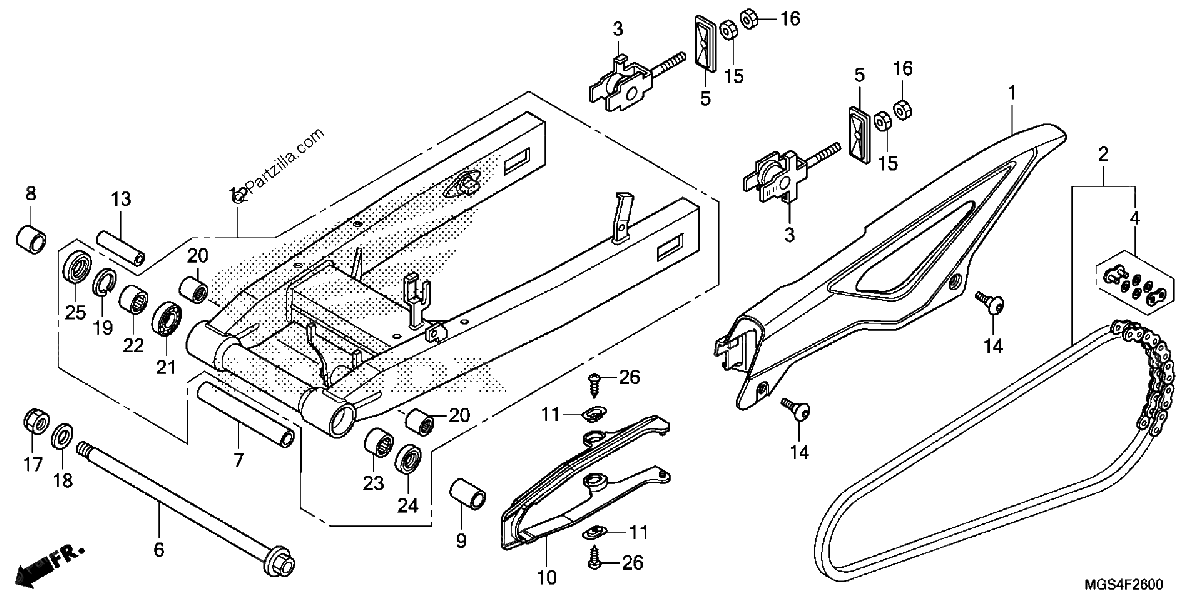

SWINGARM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CASE, DRIVE CHAIN
$147.64¢73 819
#2
CHAIN, DRIVE (DID520V0-120ZB) (DAIDO) (STANDARD LINK 112L) (STANDARD LINK 114L)
$297.69¢148 844
#2
CHAIN, DRIVE (RK520MKO-120LJ-FZ) (RK EXCEL)
$293.24¢146 619
#2
CHAIN, DRIVE (RK520KHO-120LJFZ) (RK JAPAN) (STANDARD LINK 112L) (STANDARD LINK 114L)
$293.24¢146 619
#3
ADJUSTER, CHAIN
$36.41¢18 206
#4
MASTER LINK (DAIDO)
$17.30¢8 650
#4
MASTER LINK (RK EXCEL)
$17.91¢8 956
#5
CAP, SWINGARM END
$23.05¢11 525
#6
BOLT, SWINGARM PIVOT
$50.86¢25 431
#7
COLLAR, PIVOT DISTANCE CENTER
$44.33¢22 163
#8
COLLAR, R. PIVOT DISTANCE
$24.00¢12 000
#9
COLLAR, L PIVOT DISTANCE
$25.90¢12 950
#10
SLIDER, CHAIN
$49.86¢24 931
#11
WASHER, CHAIN SLIDER
$3.33¢1 663
#12
SWINGARM SUB-Assembly., Rear.
$1492.02¢746 012
#12
SWINGARM SUB-ASSY., RR.
$1636.19¢818 094
#13
COLLAR B, CUSHION ARM
$15.06¢7 531
#14
SCREW, PAN (6X14)
$4.74¢2 369
#15
NUT, HEX. (8MM)
$1.11¢556
#16
NUT, HEX. (8MM)
$0.99¢494
#17
NUT, U (18MM)
$8.26¢4 131
#18
WASHER (20X31.5X2)
$3.89¢1 944
#19
CIRCLIP (INNER) (37)
$4.04¢2 019
#20
BEARING, NEEDLE (17X24X30)
$11.44¢5 719
#21
BEARING, RADIAL BALL (20X37X9)
$12.89¢6 444
#22
BEARING, NEEDLE (30X37X20)
$24.74¢12 369
#23
BEARING, NEEDLE
$29.82¢14 913
#24
DUST SEAL (28X37X4)
$7.70¢3 850
#25
DUST SEAL (30X37X4)
$10.15¢5 075
#26
SCREW, TAPPING (5X12)
$1.16¢581
