FRONT BRAKE CALIPER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

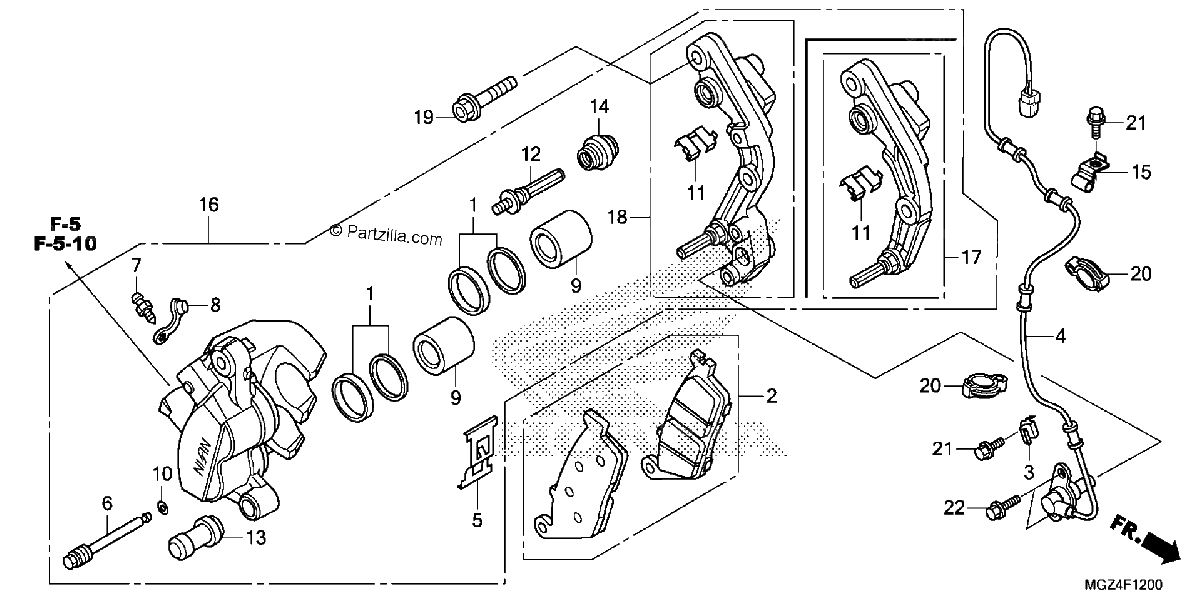

Diagrama de FRONT BRAKE CALIPER

Repuestos

#001
06431-MA3-405
SEAL SET, PISTON
$8.18¢4 088
1
#1
06431-MA3-405
SEAL SET, PISTON
$8.18¢4 088
1
#002
06455-MGS-D31
PAD SET, FR.
No Disponible
1
#2
06455-MGS-D31
PAD SET, FR.
No Disponible
1
#002
06455-MGS-D32
PAD SET, FR.
$53.99¢26 996
1
#003
38517-MGS-D80
CLAMP, SENSOR WIRE
$6.11¢3 053
1
#3
38517-MGS-D80
CLAMP, SENSOR WIRE
$6.11¢3 053
1
#004
38520-MGZ-J11
SENSOR, FR. WHEEL SPEED
$115.59¢57 793
1
#4
38520-MGZ-J11
SENSOR, FR. WHEEL SPEED
$115.59¢57 793
1
#005
43108-MCT-006
SPRING, PAD
$5.49¢2 743
1
#5
43108-MCT-006
SPRING, PAD
$5.49¢2 743
1
#6
43215-KZ4-J41
PIN, HANGER
$5.86¢2 932
1
#006
43215-KZ4-J41
PIN, HANGER
$5.86¢2 932
1
#7
43352-568-003
SCREW, BLEEDER (NISSIN)
$8.85¢4 427
1
#007
43352-568-003
SCREW, BLEEDER (NISSIN)
$8.85¢4 427
1
#8
43353-461-771
CAP, BLEEDER
$5.63¢2 818
1
#008
43353-461-771
CAP, BLEEDER
$5.63¢2 818
1
#009
45107-ML4-006
PISTON
$40.45¢20 223
1
#9
45107-ML4-006
PISTON
$40.45¢20 223
1
#010
45111-MAJ-G41
RING, STOPPER
$4.24¢2 122
1
#10
45111-MAJ-G41
RING, STOPPER
$4.24¢2 122
1
#11
45112-ML7-921
RETAINER
$6.08¢3 042
1
#011
45112-ML7-921
RETAINER
$6.08¢3 042
1
#012
45131-ML7-921
BOLT A, PIN
$16.50¢8 251
1
#12
45131-ML7-921
BOLT A, PIN
$16.50¢8 251
1
#13
45132-166-016
BOOT, PIN BUSH (NISSIN)
$6.08¢3 042
1
#013
45132-166-016
BOOT, PIN BUSH (NISSIN)
$6.08¢3 042
1
#14
45133-MA3-006
BOOT B
$6.08¢3 042
1
#014
45133-MA3-006
BOOT B
$6.08¢3 042
1
#015
45159-MGZ-J00
CLAMP, SENSOR CORD
$1.62¢811
1
#15
45159-MGZ-J00
CLAMP, SENSOR CORD
$1.62¢811
1
#016
45250-MGZ-J11
CALIPER SUB-Assembly., Right Front. (NISSIN)
$209.13¢104 564
1
#16
45250-MGZ-J11
CALIPER SUB-Assembly., Right Front. (NISSIN)
$209.13¢104 564
1
#018
45290-MGZ-J11
BRACKET SUB-Assembly., Right Front.
$59.10¢29 549
1
#18
45290-MGZ-J11
BRACKET SUB-Assembly., Right Front.
$59.10¢29 549
1
#019
90131-KZZ-900
BOLT, FLANGE (8X32)
$0.98¢489
1
#19
90131-KZZ-900
BOLT, FLANGE (8X32)
$0.98¢489
1
#020
90690-MCA-003
CLIP, CABLE (14MM)
$2.09¢1 047
1
#20
90690-MCA-003
CLIP, CABLE (14MM)
$2.09¢1 047
1
#21
96001-06012-07
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#021
96001-06012-07
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#022
96001-06016-00
BOLT, FLANGE (6X16)
$1.24¢621
1
#22
96001-06016-00
BOLT, FLANGE (6X16)
$1.24¢621
1
