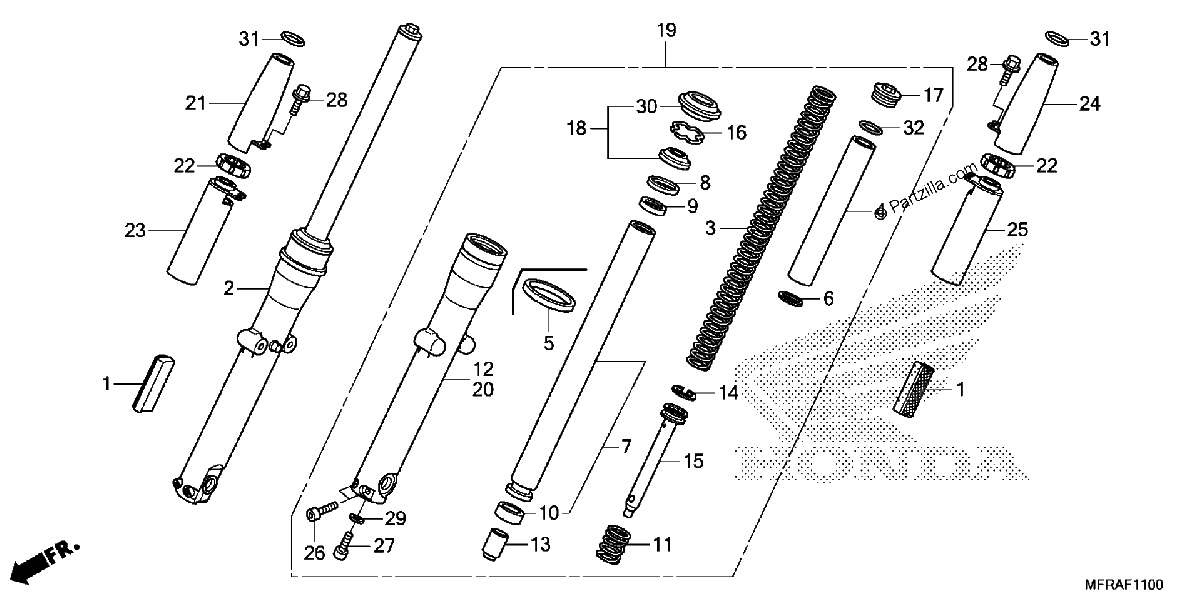

FRONT FORK 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
REFLECTOR, FR. REFLEX
$41.31¢20 654
#2
FORK ASSY., R. FR. (COO) (SHOWA)
No Disponible
#2
FORK ASSY., R. FR. (SHOWA)
No Disponible
#3
SPRING, FR. FORK
$97.86¢48 932
#4
COLLAR, SPRING (SHOWA)
$25.63¢12 817
#5
GUIDE, CASE
$7.52¢3 760
#6
PLATE, SPRING JOINT
$5.51¢2 754
#7
PIPE, FR. FORK
$472.71¢236 354
#8
RING, BACK-UP (SHOWA)
$10.38¢5 192
#9
BUSH, GUIDE
$8.10¢4 048
#10
BUSH, SLIDER
$8.10¢4 048
#11
SPRING, FR. REBOUND (SHOWA)
$6.57¢3 283
#12
CASE, R. (LOWER)
$542.88¢271 440
#13
PIECE, OIL LOCK (SHOWA)
$26.52¢13 259
#14
RING, PISTON
$10.30¢5 152
#15
PIPE, SEAT
$51.58¢25 789
#16
RING, OIL SEAL STOPPER (SHOWA)
$5.04¢2 519
#17
BOLT, FR. FORK
$40.97¢20 487
#18
SEAL SET, Front FORK
$24.32¢12 161
#19
FORK ASSY., L. FR. (COO) (SHOWA)
No Disponible
#19
FORK ASSY., L. FR. (SHOWA)
No Disponible
#20
CASE, L. (LOWER)
$567.44¢283 722
#21
COVER, Right Front FORK TOP
No Disponible
#22
MOUNT, Front FORK COVER
$11.56¢5 779
#23
COVER, Right Front FORK (LOWER)
$104.41¢52 204
#24
COVER, L. FR. FORK TOP
No Disponible
#25
COVER, L Front FORK (LOWER)
$104.41¢52 204
#26
BOLT, SOCKET (8X35)
$3.36¢1 679
#27
BOLT, SOCKET (8MM) (SHOWA)
$4.34¢2 168
#28
BOLT, FLANGE (6X12)
$2.89¢1 443
#29
WASHER, SPECIAL (8MM) (SHOWA)
$3.36¢1 679
#30
DUST SEAL (SHOWA)
$9.20¢4 600
#31
O-RING (39.5X5)
$3.69¢1 846
#32
O-RING (33.2X2.4)
$4.20¢2 099
