HEADLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

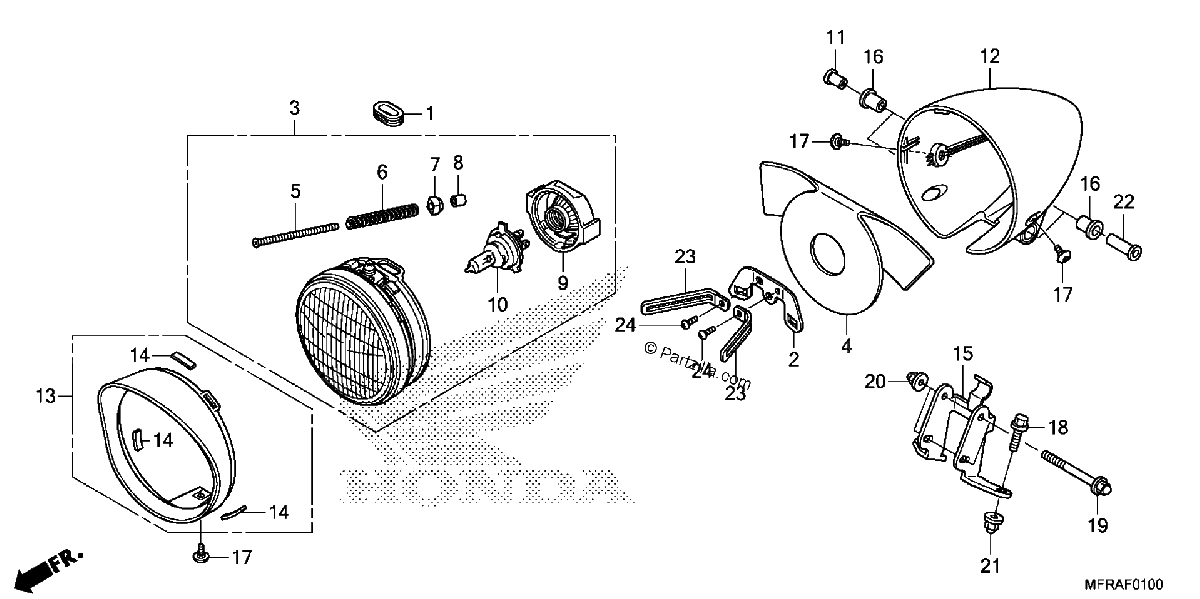

Diagrama de HEADLIGHT

Repuestos

#1
17247-240-000
GROMMET A, AIR CLEANER HOUSING
$3.65¢1 825
1
#2
32111-MFR-670
CLAMP, HARNESS
$5.70¢2 850
1
#3
33100-MFR-305
HEADLIGHT ASSY. (12V 60/55W) (COO) (STANLEY)
$377.05¢188 525
1
#4
33101-MFR-670
SHEET, HEADLIGHT RUBBER
$29.59¢14 794
1
#5
33103-MM2-003
SCREW, BEAM ADJUSTING
$3.52¢1 763
1
#6
33108-MM2-003
SPRING, BEAM ADJUSTING
$4.20¢2 100
1
#7
33118-438-841
NUT, BEAM ADJUSTING
$2.88¢1 438
1
#8
33136-426-830
COVER, SCREW
$2.41¢1 206
1
#9
33180-MR7-003
COVER, RUBBER
$16.53¢8 263
1
#10
34901-MC7-602
BULB, HEADLIGHT (12V 60/55W) (STANLEY)
$43.17¢21 588
1
#11
52157-GC5-000
COLLAR, CHAIN GUARD
$5.42¢2 713
1
#12
61301-MFR-670
CASE ASSY., HEADLIGHT
$212.14¢106 069
1
#13
61302-MFR-670
RIM, HEADLIGHT
$47.27¢23 638
1
#14
61303-MFR-670
RUBBER, HEADLIGHT
$2.81¢1 406
1
#15
61311-MFR-A00
STAY, HEADLIGHT
$43.26¢21 631
1
#16
61315-MK7-000
RUBBER, HEADLIGHT MOUNTING
$3.65¢1 825
1
#17
90106-MBY-000
SCREW, SPECIAL (5X12)
$3.44¢1 719
1
#18
90123-KR3-000
BOLT, SPECIAL FLANGE (8X23)
$4.44¢2 219
1
#19
90132-MFR-670
BOLT, CAP (6MM)
$6.50¢3 250
1
#20
90201-425-700
NUT, CAP (6MM)
$5.13¢2 563
1
#21
90208-438-000
NUT, CAP (8MM)
$3.65¢1 825
1
#22
90501-MCF-000
COLLAR A
$6.29¢3 144
1
#23
91411-679-000
CLIP
$20.86¢10 431
1
#24
93500-05010-0A
SCREW, PAN (5X10)
$1.16¢581
1
