FUEL TANK FUEL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

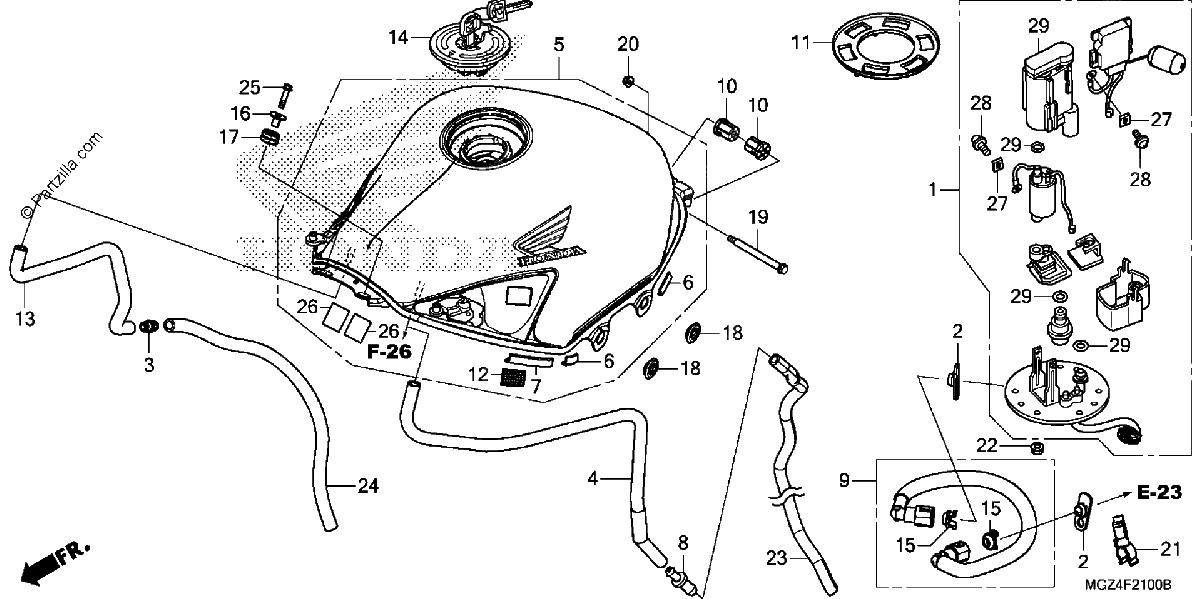

Diagrama de FUEL TANK FUEL PUMP

Repuestos

#001
16700-MGZ-J01
PUMP ASSY., FUEL (MSDS)
$916.06¢458 031
1
#1
16700-MGZ-J02
PUMP Assembly., FUEL
$916.06¢458 031
1
#001
16700-MGZ-J02
PUMP Assembly., FUEL
$916.06¢458 031
1
#001
16700-MGZ-J03
PUMP Assembly., FUEL
$916.06¢458 031
1
#001
16700-MGZ-J04
PUMP Assembly., FUEL (MSDS)
$916.06¢458 031
1
#1
16700-MGZ-J01
PUMP ASSY., FUEL (MSDS)
$916.06¢458 031
1
#2
16719-MEW-920
DAMPER, CONNECTOR
$3.65¢1 825
1
#002
16719-MEW-920
DAMPER, CONNECTOR
$3.65¢1 825
1
#3
17359-419-670
JOINT, BREATHER TUBE
$2.64¢1 319
1
#003
17359-419-670
JOINT, BREATHER TUBE
$2.64¢1 319
1
#004
17418-MGZ-J00
TUBE, FUEL TANK BREATHER
$13.69¢6 844
1
#4
17418-MGZ-J00
TUBE, FUEL TANK BREATHER
$13.69¢6 844
1
#5
17500-MGZ-J01ZC
TANK Assembly., FUEL (TYPE1) (WL) (NHB01,GRAPHITE BLACK)
$1002.17¢501 088
1
#005
17500-MGZ-J01ZC
TANK Assembly., FUEL (TYPE1) (WL) (NHB01,GRAPHITE BLACK)
$1002.17¢501 088
1
#005
17500-MGZ-J01ZB
TANK ASSY., FUEL (TYPE2) (WL)
$1002.17¢501 088
1
#5
17500-MGZ-J01ZB
TANK ASSY., FUEL (TYPE2) (WL)
$1002.17¢501 088
1
#6
17501-MGZ-J00
RUBBER, FUEL TANK
$8.75¢4 375
1
#006
17501-MGZ-J00
RUBBER, FUEL TANK
$8.75¢4 375
1
#007
17521-KY1-300
SEAL, TANK
$2.97¢1 487
1
#7
17521-KY1-300
SEAL, TANK
$2.97¢1 487
1
#8
17561-KVG-900
JOINT, FUEL TUBE
$2.48¢1 238
1
#008
17561-KVG-900
JOINT, FUEL TUBE
$2.48¢1 238
1
#9
17570-MGZ-J01
HOSE, FUEL FEED
$78.95¢39 475
1
#009
17570-MGZ-J01
HOSE, FUEL FEED
$78.95¢39 475
1
#010
17572-KPP-T00
CUSHION, RR. FUEL TANK PIVOT
$2.97¢1 487
1
#10
17572-KPP-T00
CUSHION, RR. FUEL TANK PIVOT
$2.97¢1 487
1
#11
17574-MGS-D30
GASKET, BASE
$28.36¢14 181
1
#011
17574-MGS-D30
GASKET, BASE
$28.36¢14 181
1
#12
17580-MGZ-J00
FASTENER A, DUAL LOCK (18X28)
$3.15¢1 575
1
#012
17580-MGZ-J00
FASTENER A, DUAL LOCK (18X28)
$3.15¢1 575
1
#013
17590-MGZ-J00
TUBE, FUEL TANK DRAIN
$11.13¢5 563
1
#13
17590-MGZ-J00
TUBE, FUEL TANK DRAIN
$11.13¢5 563
1
#014
17620-MCB-612
CAP, FUEL FILLER
$160.29¢80 144
1
#14
17620-MCB-611
CAP, FUEL FILLER
$160.29¢80 144
1
#014
17620-MCB-611
CAP, FUEL FILLER
$160.29¢80 144
1
#15
17711-MGE-003
RETAINER
$7.69¢3 844
1
#015
17711-MGE-003
RETAINER
$7.69¢3 844
1
#016
61102-KTY-D30
COLLAR, RADIATOR MOUNTING
$4.86¢2 431
1
#16
61102-KTY-D30
COLLAR, RADIATOR MOUNTING
$4.86¢2 431
1
#17
77208-KW7-900
RUBBER B, SEAT MOUNTING
$3.98¢1 988
1
#017
77208-KW7-900
RUBBER B, SEAT MOUNTING
$3.98¢1 988
1
#018
83551-300-000
GROMMET, AIR CLEANER HOUSING
$4.45¢2 225
1
#18
83551-300-000
GROMMET, AIR CLEANER HOUSING
$4.45¢2 225
1
#19
90135-MS2-000
BOLT, TANK HINGE
$7.55¢3 775
1
#019
90135-MS2-000
BOLT, TANK HINGE
$7.55¢3 775
1
#20
90301-KGH-901
NUT, U (6MM) (FUJI SEIMITSU)
$1.79¢894
1
#020
90301-KGH-901
NUT, U (6MM) (FUJI SEIMITSU)
$1.79¢894
1
#21
91593-MGZ-J01
CLAMP, FUEL HOSE (BLACK)
$2.91¢1 456
1
#021
91593-MGZ-J01
CLAMP, FUEL HOSE (BLACK)
$2.91¢1 456
1
#022
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#22
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#023
95005-75001-20M
BULK HOSE, VACUUM (7.3X1000) OEM CUT SIZE: (7.3X500)
$26.24¢13 119
1
#23
95005-75001-20M
BULK HOSE, VACUUM (7.3X1000) OEM CUT SIZE: (7.3X500)
$26.24¢13 119
1
#24
95005-80001-20M
BULK HOSE, VACUUM (8X1000) (8X50)
$27.96¢13 981
1
#024
95005-80001-20M
BULK HOSE, VACUUM (8X1000) (8X50)
$27.96¢13 981
1
#025
96001-06025-07
BOLT, FLANGE (6X25)
$1.72¢862
1
#25
96001-06025-07
BOLT, FLANGE (6X25)
$1.72¢862
1
#026
17528-KCZ-930
TAPE B, TANK GUARD
$4.80¢2 400
1
#26
17528-KCZ-930
TAPE B, TANK GUARD
$4.80¢2 400
1
#027
16711-MGS-D31
STOPPER
$6.23¢3 113
1
#27
16711-MGS-D31
STOPPER
$6.23¢3 113
1
#28
16712-MGS-D31
SCREW (4X6.6)
$2.41¢1 206
1
#028
16712-MGS-D31
SCREW (4X6.6)
$2.41¢1 206
1
#029
16730-MKA-D83
FILTER Assembly., FUEL
$49.11¢24 556
1
#029
16730-MGS-D31
FILTER Assembly., FUEL
No Disponible
1
#29
16730-MGS-D31
FILTER Assembly., FUEL
No Disponible
1
#029
16730-MKA-D82
FILTER Assembly., FUEL
$49.11¢24 556
1
#029
16730-MKT-D01
FILTER Assembly., FUEL
$49.11¢24 556
1
