MIDDLE COWL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

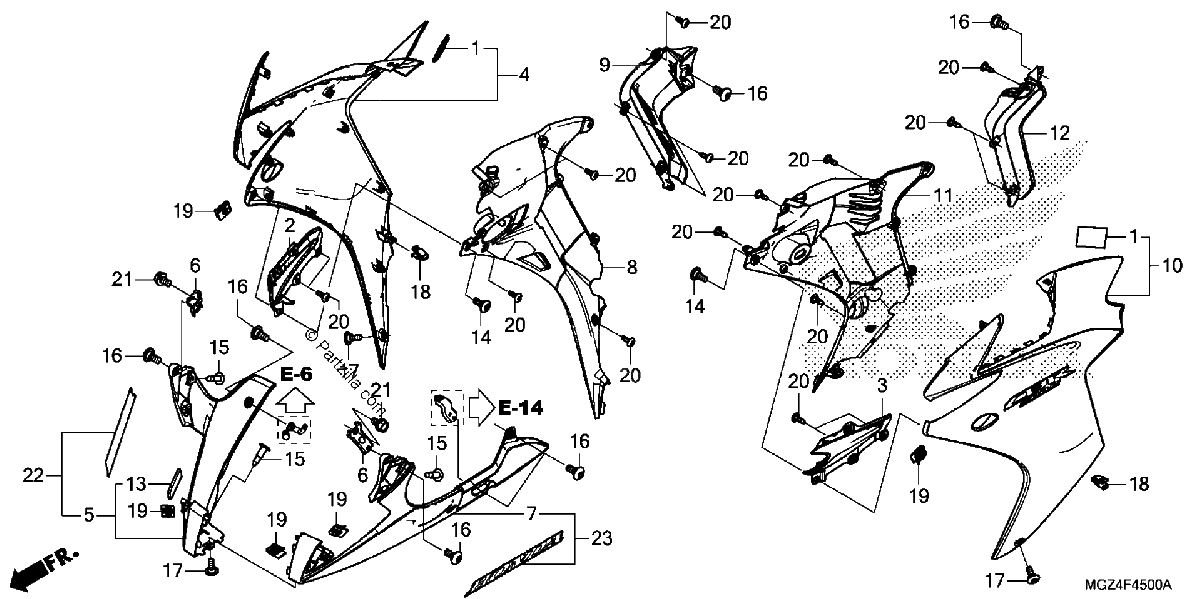

Diagrama de MIDDLE COWL

Repuestos

#001
17581-MGZ-J00
FASTENER B, DUAL LOCK (20X30)
$3.05¢1 525
1
#1
17581-MGZ-J00
FASTENER B, DUAL LOCK (20X30)
$3.05¢1 525
1
#2
64230-MGZ-J00
COVER, Right HEADLIGHT (LOWER)
$4.49¢2 244
1
#002
64230-MGZ-J00
COVER, Right HEADLIGHT (LOWER)
$4.49¢2 244
1
#3
64240-MGZ-J00
COVER, L HEADLIGHT (LOWER)
$4.49¢2 244
1
#003
64240-MGZ-J00
COVER, L HEADLIGHT (LOWER)
$4.49¢2 244
1
#004
64300-MGZ-D00ZC
COWL SET, R. MIDDLE (TYPE2) (WL)
$145.82¢72 913
1
#4
64300-MGZ-D00ZC
COWL SET, R. MIDDLE (TYPE2) (WL)
$145.82¢72 913
1
#004
64300-MGZ-D00ZD
COWL SET, R. MIDDLE (TYPE1) (WL)
$147.34¢73 669
1
#4
64300-MGZ-D00ZD
COWL SET, R. MIDDLE (TYPE1) (WL)
$147.34¢73 669
1
#5
64310-MGZ-J00ZB
COWL ASSY., R. (LOWER) *NH436M* (MAT GUNPOWDER BLACK METALLIC)
$96.86¢48 431
1
#005
64310-MGZ-J00ZB
COWL ASSY., R. (LOWER) *NH436M* (MAT GUNPOWDER BLACK METALLIC)
$96.86¢48 431
1
#006
64315-MGZ-J00
STAY, FR. COWL (LOWER)
$4.07¢2 037
1
#6
64315-MGZ-J00
STAY, FR. COWL (LOWER)
$4.07¢2 037
1
#7
64320-MGZ-J00ZA
COWL, Left (LOWER) NH436M (MAT GUNPOWDER BLACK METALLIC)
$70.35¢35 175
1
#007
64320-MGZ-J00ZA
COWL, Left (LOWER) NH436M (MAT GUNPOWDER BLACK METALLIC)
$70.35¢35 175
1
#7
64320-MGZ-J01ZA
COWL, Left (LOWER) NH436M (MAT GUNPOWDER BLACK METALLIC)
$70.35¢35 175
1
#007
64320-MGZ-J01ZA
COWL, Left (LOWER) NH436M (MAT GUNPOWDER BLACK METALLIC)
$70.35¢35 175
1
#008
64335-MGZ-J00
COWL, R. (INNER)
$24.39¢12 194
1
#8
64335-MGZ-J00
COWL, R. (INNER)
$24.39¢12 194
1
#009
64336-MGZ-J00
COWL, R. LAYER
$20.78¢10 388
1
#9
64336-MGZ-J00
COWL, R. LAYER
$20.78¢10 388
1
#010
64400-MGZ-D00ZD
COWL SET, L. MIDDLE (TYPE1) (WL)
$130.96¢65 481
1
#10
64400-MGZ-D00ZD
COWL SET, L. MIDDLE (TYPE1) (WL)
$130.96¢65 481
1
#10
64400-MGZ-D00ZC
COWL SET, L. MIDDLE (TYPE2) (WL)
$129.71¢64 856
1
#010
64400-MGZ-D00ZC
COWL SET, L. MIDDLE (TYPE2) (WL)
$129.71¢64 856
1
#011
64435-MGZ-J00
COWL, L. (INNER)
$20.81¢10 406
1
#11
64435-MGZ-J00
COWL, L. (INNER)
$20.81¢10 406
1
#012
64436-MGZ-J00
COWL, L. LAYER
$20.78¢10 388
1
#12
64436-MGZ-J00
COWL, L. LAYER
$20.78¢10 388
1
#13
84703-KC2-960
CUSHION, NUMBER PLATE
$1.25¢625
1
#013
84703-KC2-960
CUSHION, NUMBER PLATE
$1.25¢625
1
#014
90114-MGZ-J00
SCREW, SPECIAL (5X14)
$1.13¢563
1
#14
90114-MGZ-J00
SCREW, SPECIAL (5X14)
$1.13¢563
1
#15
90116-MCS-G00
RIVET, PUSH
$1.79¢894
1
#015
90116-MCS-G00
RIVET, PUSH
$1.79¢894
1
#016
90133-KPP-T00
SCREW, PAN (6X14)
$1.64¢819
1
#16
90133-KPP-T00
SCREW, PAN (6X14)
$1.64¢819
1
#017
90134-KPP-T00
SCREW, PAN (5X14)
$1.23¢613
1
#17
90134-KPP-T00
SCREW, PAN (5X14)
$1.23¢613
1
#18
90601-SJA-003
CLIP, SNAP FITTING
$3.94¢1 969
1
#018
90601-SJA-003
CLIP, SNAP FITTING
$3.94¢1 969
1
#19
90677-KAN-T00
NUT, CLIP (5MM)
$0.83¢413
1
#019
90677-KAN-T00
NUT, CLIP (5MM)
$0.83¢413
1
#20
93903-24380
SCREW, TAPPING (4X12)
$1.16¢581
1
#020
93903-24380
SCREW, TAPPING (4X12)
$1.16¢581
1
#21
95701-06010-00
BOLT, FLANGE (6X10)
$1.63¢813
1
#021
95701-06010-00
BOLT, FLANGE (6X10)
$1.63¢813
1
