HANDLEBAR TOP BRIDGE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

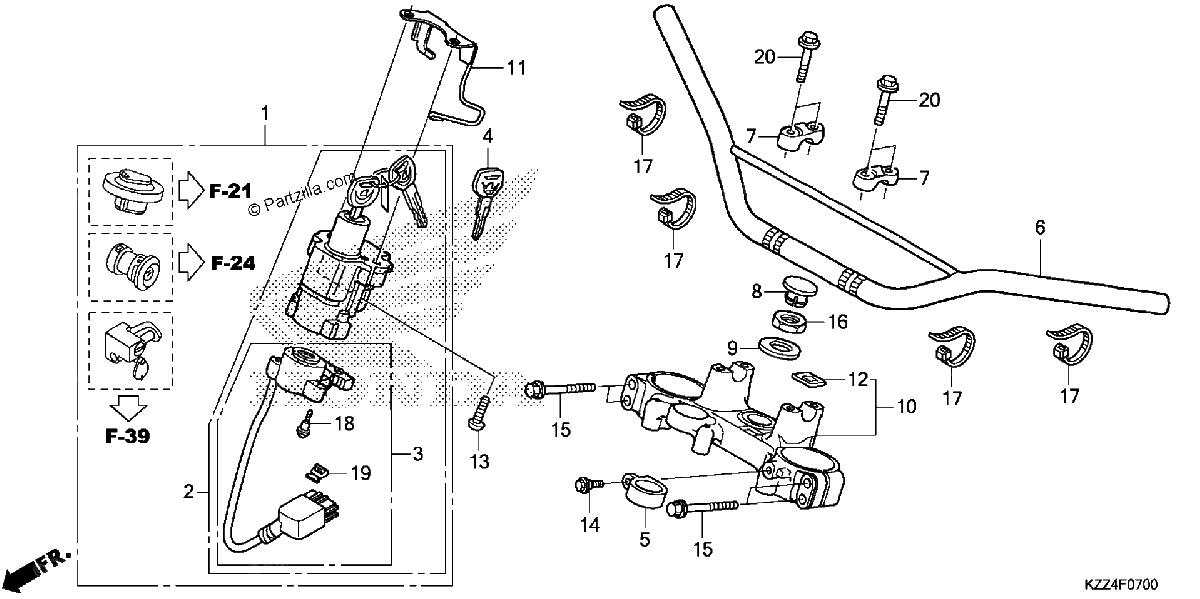

Diagrama de HANDLEBAR TOP BRIDGE

Repuestos

#1
35010-KZZ-900
LOCK SET
$332.19¢166 094
1
#2
35100-KZZ-901
SWITCH ASSY., COMBINATION LOCK
$201.34¢100 669
1
#3
35101-KZZ-901
BASE, CONTACT
$80.71¢40 356
1
#4
35121-MAS-G01
KEY, BLANK
$14.79¢7 394
1
#5
45468-KZZ-900
GUIDE, FR. BRAKE HOSE
$10.65¢5 325
1
#6
53100-KZZ-305
HANDLEBAR (COO)
$26.13¢13 063
1
#7
53131-KZZ-900
HOLDER (UPPER)
$5.24¢2 619
1
#8
53208-KCH-900
CAP, STEERING STEM
$3.65¢1 825
1
#9
53215-GF8-000
WASHER, DUST SEAL
$5.06¢2 531
1
#10
53300-KZZ-900
BRIDGE, FORK TOP
$116.44¢58 219
1
#11
61325-KZZ-900
GUIDE, CLUTCH CABLE
$15.93¢7 963
1
#12
86150-KPG-901
EMBLEM, PRODUCT (MARUI)
$4.39¢2 194
1
#12
86150-KPG-902
EMBLEM, PRODUCT (UEHARA)
$5.16¢2 581
1
#13
90107-MBG-000
BOLT, ONE-WAY (8MM)
$3.65¢1 825
1
#14
90113-KZZ-900
BOLT, FLANGE (6MM)
$0.70¢350
1
#15
90155-KZZ-900
BOLT, FLANGE (8X45)
$1.02¢513
1
#16
90304-425-000
NUT, STEERING STEM
$11.34¢5 669
1
#17
90650-KW3-000
BAND, WIRE
$5.42¢2 713
1
#18
91059-KY2-711
SCREW, TAPPING (3X16)
$3.65¢1 825
1
#19
91533-S04-003
CLIP, CONNECTOR (NATURAL)
$5.02¢2 512
1
#20
96300-08035-00
BOLT, FLANGE (8X35)
$2.52¢1 263
1
