FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

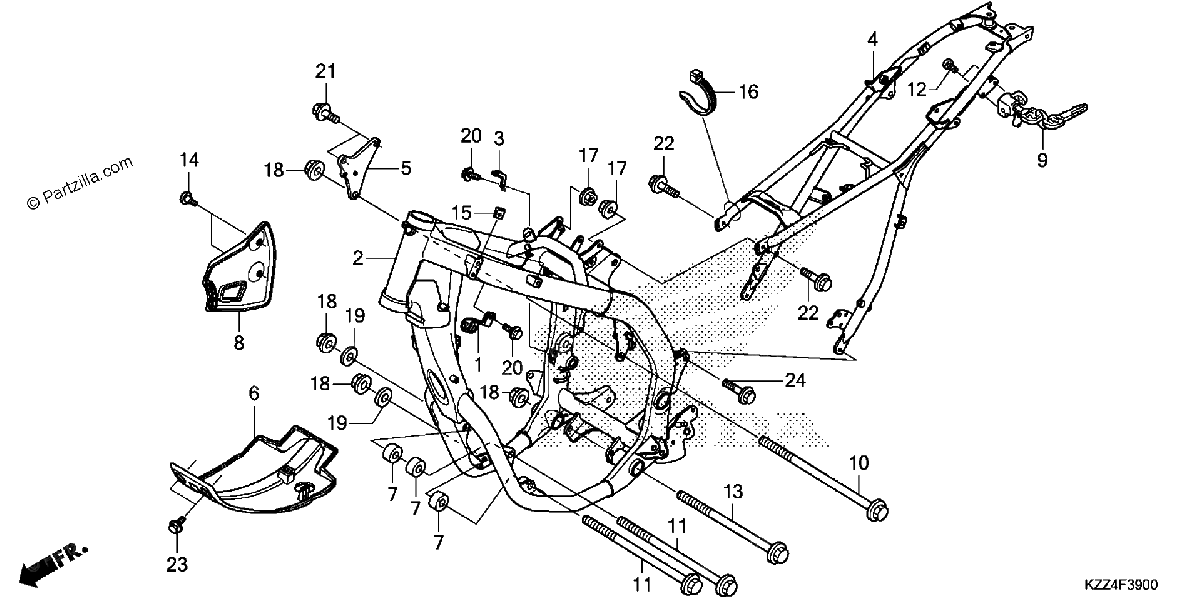

Diagrama de FRAME

Repuestos

#1
32111-KZZ-900
CLAMP, HARNESS
$15.88¢7 938
1
#2
50100-KZZ-900ZB
FRAME *NH146M* (ACCURATE SILVER METALLIC)
$715.38¢357 688
1
#3
50175-KZZ-900
STAY, STOP SWITCH
$2.24¢1 119
1
#4
50200-KZZ-900ZB
FRAME, RR. *NH146M* (ACCURATE SILVER METALLIC)
$252.85¢126 425
1
#5
50351-KZZ-900
PLATE, R. ENGINE HANGER
$11.23¢5 613
1
#6
50355-KZZ-900
PLATE, SKID
$24.36¢12 181
1
#7
50361-KZZ-900
COLLAR, ENGINE HANGER
$3.21¢1 606
1
#8
50615-KZZ-900
GUARD, HEEL
$6.51¢3 256
1
#9
50710-KCZ-J71
HOLDER ASSY., HELMET
$51.76¢25 881
1
#10
90102-KZZ-900
BOLT, FLANGE (10X150)
$4.24¢2 119
1
#11
90104-HP6-A00
BOLT, FLANGE (10X140)
$10.39¢5 194
1
#12
90105-KGA-B00
BOLT, ONE-WAY (6X10)
$3.11¢1 556
1
#13
90127-KR3-000
BOLT, FLANGE (10X130)
$11.15¢5 575
1
#14
90133-KPP-T00
SCREW, PAN (6X14)
$1.64¢819
1
#15
90201-KPR-901
NUT, CLIP (6MM)
$2.40¢1 200
1
#17
94050-08000
NUT, FLANGE (8MM)
$1.15¢575
1
#18
94050-10000
NUT, FLANGE (10MM)
$1.90¢950
1
#19
94101-10800
WASHER, PLAIN (10MM)
$2.41¢1 206
1
#20
95701-06012-00
BOLT, FLANGE (6X12)
$2.09¢1 044
1
#21
95701-08016-00
BOLT, FLANGE (8X16)
$2.31¢1 156
1
#22
95701-08018-00
BOLT, FLANGE (8X18)
$2.31¢1 156
1
#23
96300-06010-08
BOLT, FLANGE (6X10)
$2.21¢1 106
1
#24
96300-08020-00
BOLT, FLANGE (8X20)
$2.03¢1 013
1
