CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

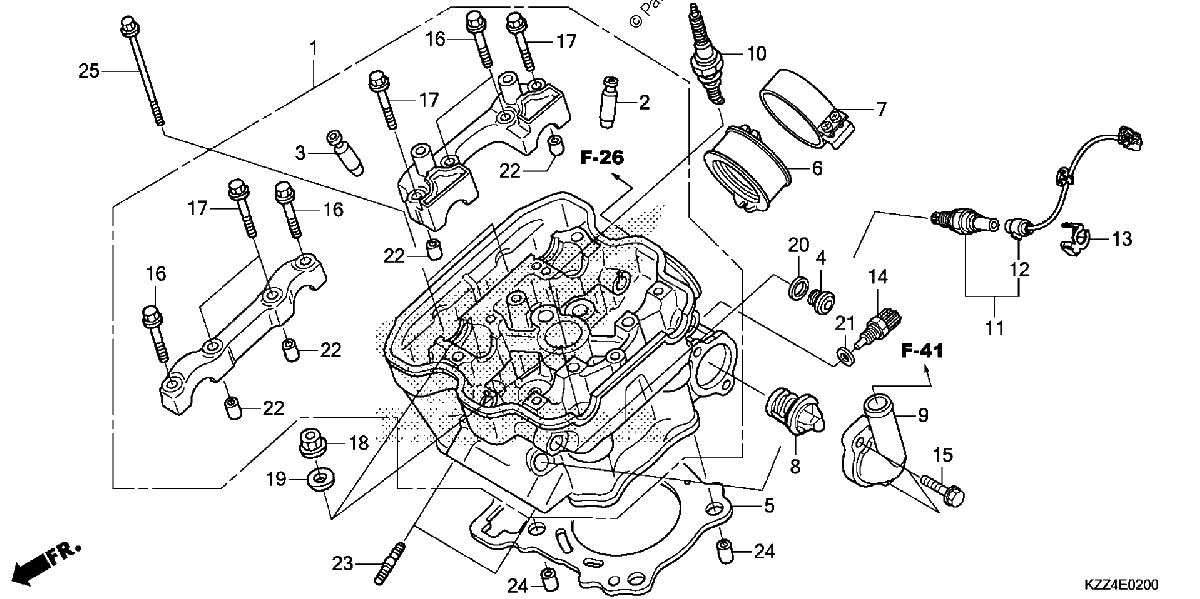

Diagrama de CYLINDER HEAD

Repuestos

#1
12010-KZZ-901
CYLINDER HEAD ASSY.
$240.84¢120 422
1
#2
12204-KYJ-305
GUIDE, VALVE (OVER SIZE)
$20.70¢10 350
1
#3
12205-KYJ-305
GUIDE, EX. VALVE (OVER SIZE)
$20.70¢10 350
1
#4
12207-KYJ-900
BOLT, SEALING (12MM)
$1.75¢874
1
#5
12251-KYJ-901
GASKET, CYLINDER HEAD
$24.16¢12 081
1
#6
16211-KZZ-900
INSULATOR, THROTTLE BODY
$22.55¢11 276
1
#7
16217-KYJ-900
BAND, INSULATOR
$6.43¢3 214
1
#8
19300-KGF-911
THERMOSTAT
$60.23¢30 113
1
#9
19321-KZZ-900
COVER, THERMOSTAT
$14.57¢7 285
1
#10
31916-MEH-003
SPARK PLUG (SIMR8A9) (NGK)
$19.65¢9 827
1
#11
36532-KZZ-901
SENSOR, OXYGEN
$112.61¢56 304
1
#12
36533-KZZ-900
WIRE, OXYGEN SENSOR
$46.23¢23 115
1
#13
36538-KPP-T00
COVER, SENSOR (O2)
$17.17¢8 585
1
#14
37870-KRJ-901
SENSOR ASSY., WATER TEMPERATURE
$33.09¢16 543
1
#15
90011-KYJ-900
BOLT, FLANGE (6X22)
$0.56¢282
1
#16
90017-KYJ-900
BOLT, FLANGE (6X32)
$0.91¢454
1
#17
90019-KYJ-900
BOLT, FLANGE (6X39.5)
$0.98¢489
1
#18
90204-634-000
NUT, FLANGE (10MM)
$1.75¢874
1
#18
94030-10000-07
NUT, HEX. (10MM)
$1.75¢874
1
#18
94050-10000
NUT, FLANGE (10MM)
$1.75¢874
1
#19
90410-GCC-000
WASHER (10MM)
$2.54¢1 271
1
#20
90418-KYJ-900
WASHER (12.2X17X1.5)
$1.12¢558
1
#21
90454-MC7-000
WASHER, SPECIAL (12MM)
$3.09¢1 547
1
#22
90702-KRM-840
PIN, DOWEL (8X14)
$0.79¢397
1
#22
91105-KSP-910
PIN, DOWEL (8X14)
$0.79¢397
1
#22
94301-08140
PIN, DOWEL (8X14)
$2.66¢1 328
1
#23
92900-08022-3E
BOLT, STUD (8X22)
$2.74¢1 368
1
#24
94301-12160
PIN A, DOWEL (12X16)
$2.69¢1 346
1
#25
95701-06120-00
BOLT, FLANGE (6X120)
$1.28¢638
1
