FRONT WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

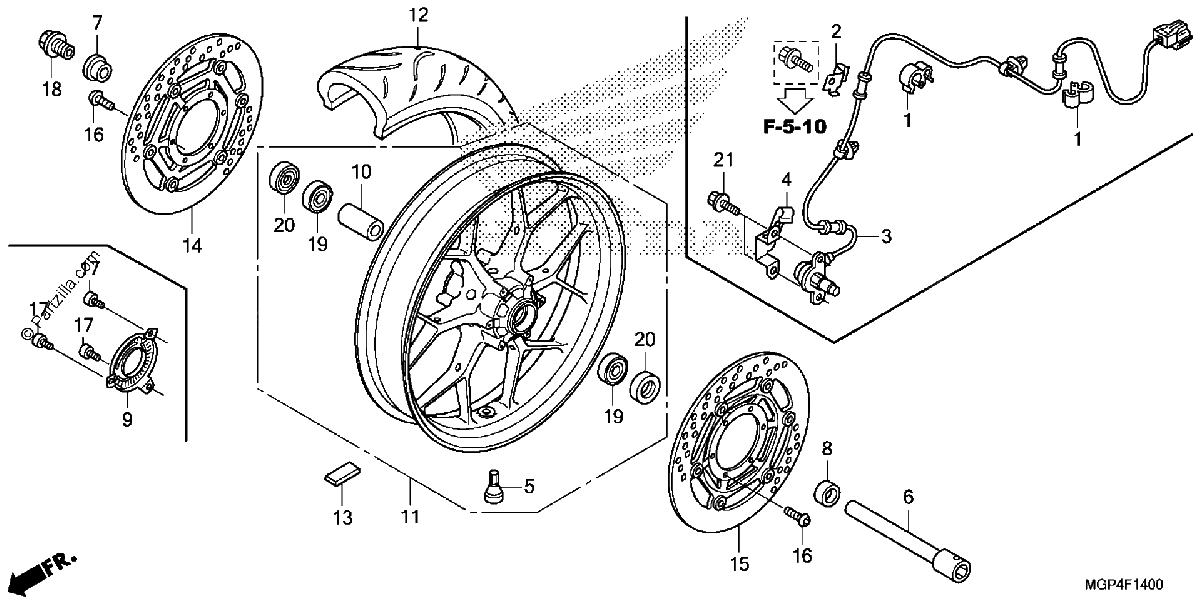

Diagrama de FRONT WHEEL

Repuestos

#5
42753-ML7-003
VALVE, RIM (BS)
$14.79¢7 394
1
#005
42753-ML7-004
VALVE, RIM (DUNLOP)
$14.79¢7 394
1
#5
42753-ML7-004
VALVE, RIM (DUNLOP)
$14.79¢7 394
1
#005
42753-ML7-003
VALVE, RIM (BS)
$14.79¢7 394
1
#006
44301-MFL-000
AXLE, FR. WHEEL
$100.25¢50 125
1
#6
44301-MFL-000
AXLE, FR. WHEEL
$100.25¢50 125
1
#7
44311-MFL-000
COLLAR, R. FR. WHEEL SIDE
$12.51¢6 256
1
#007
44311-MFL-000
COLLAR, R. FR. WHEEL SIDE
$12.51¢6 256
1
#008
44312-MFL-000
COLLAR, L. FR. WHEEL SIDE
$9.50¢4 750
1
#8
44312-MFL-000
COLLAR, L. FR. WHEEL SIDE
$9.50¢4 750
1
#010
44620-MCJ-000
COLLAR, FR. WHEEL DISTANCE
$24.47¢12 237
1
#10
44620-MCJ-000
COLLAR, FR. WHEEL DISTANCE
$24.47¢12 237
1
#11
44650-MGP-305ZB
WHEEL SUB-ASSY., FR. *YR250* (COO) (VIBRANT ORANGE)
$1287.95¢643 975
1
#011
44650-MGP-305ZB
WHEEL SUB-ASSY., FR. *YR250* (COO) (VIBRANT ORANGE)
$1287.95¢643 975
1
#12
44711-MGP-004
TIRE, Front. (120/70ZR17) (M/C 58W) (DUNLOP) (NOT AVAILABLE)
No Disponible
1
#012
44711-MGP-013
TIRE, Front. (120/70ZR17) (M/C 58W) (BS)
$189.69¢94 844
1
#012
44711-MGP-004
TIRE, Front. (120/70ZR17) (M/C 58W) (DUNLOP) (NOT AVAILABLE)
No Disponible
1
#012
44711-MGP-003
TIRE, FR. (120/70ZR17) (M/C 58W) (BS)
$189.69¢94 844
1
#12
44711-MGP-003
TIRE, FR. (120/70ZR17) (M/C 58W) (BS)
$189.69¢94 844
1
#013
44721-MGC-003
WEIGHT, BALANCE (10G)
$5.67¢2 838
1
#13
44721-MGC-003
WEIGHT, BALANCE (10G)
$5.67¢2 838
1
#13
44722-MGC-003
WEIGHT, BALANCE (15G)
$6.76¢3 381
1
#013
44722-MGC-003
WEIGHT, BALANCE (15G)
$6.76¢3 381
1
#013
44723-MGC-003
WEIGHT, BALANCE (20G)
$6.76¢3 381
1
#13
44723-MGC-003
WEIGHT, BALANCE (20G)
$6.76¢3 381
1
#14
45120-MGP-M31
DISK, R. FR. BRAKE
$939.96¢469 981
1
#014
45120-MGP-M31
DISK, R. FR. BRAKE
$939.96¢469 981
1
#15
45220-MGP-M31
DISK, L. FR. BRAKE
$939.96¢469 981
1
#015
45220-MGP-M31
DISK, L. FR. BRAKE
$939.96¢469 981
1
#16
90106-MFL-D20
BOLT, BRAKE DISK (6X17)
$3.20¢1 600
1
#016
90106-MFL-D20
BOLT, BRAKE DISK (6X17)
$3.20¢1 600
1
#018
90306-MFL-010
BOLT, FR. AXLE
$12.15¢6 075
1
#18
90306-MFL-010
BOLT, FR. AXLE
$12.15¢6 075
1
#019
91052-MCF-003
BEARING, RADIAL BALL (6005)
$17.43¢8 713
1
#19
91052-MCF-003
BEARING, RADIAL BALL (6005)
$17.43¢8 713
1
#020
91253-MFL-003
DUST SEAL (31X47X7)
$7.69¢3 844
1
#20
91253-MFL-003
DUST SEAL (31X47X7)
$7.69¢3 844
1
