REAR SHOCK ABSORBER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

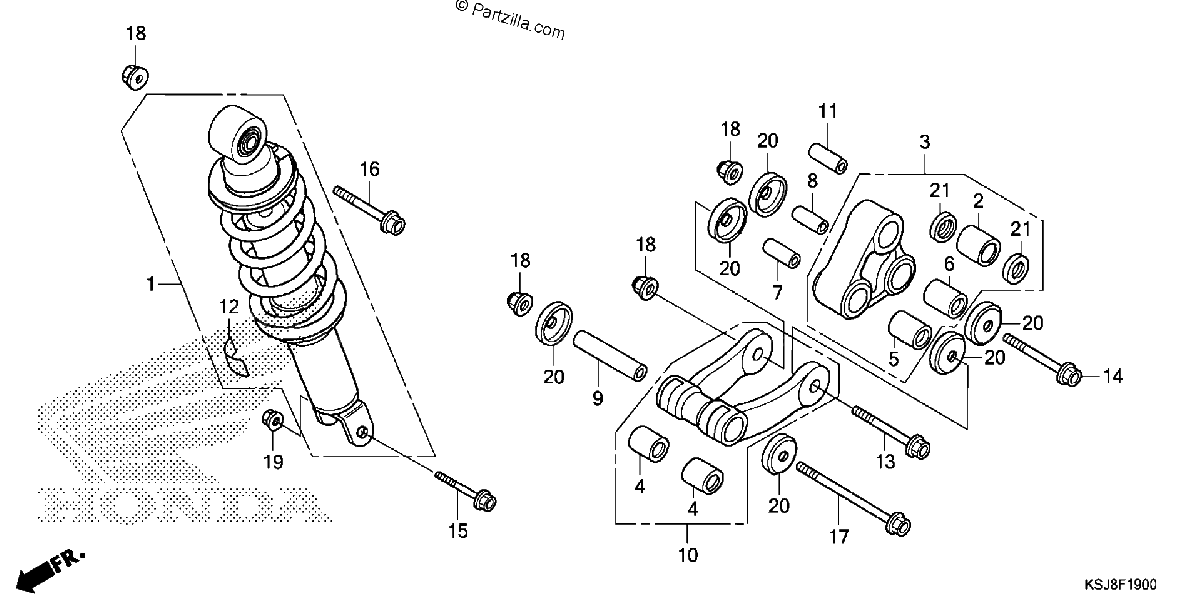

Diagrama de REAR SHOCK ABSORBER

Repuestos

#1
52400-KSJ-305
CUSHION ASSY., RR. (COO) (SHOWA)
$631.73¢315 865
1
#2
52452-GN1-000
BUSH, DAMPER (LOWER)
$13.06¢6 532
1
#3
52465-KSJ-000
ARM SUB-ASSY., CUSHION
$199.29¢99 648
1
#4
52472-GJ1-003
BUSH, CUSHION CONNECTING ROD
$26.13¢13 064
1
#5
52472-GN1-000
BUSH, CUSHION ARM
$26.33¢13 167
1
#6
52472-KN4-A60
BUSH, CUSHION ARM
$23.85¢11 925
1
#7
52473-GE2-000
COLLAR, CONNECTING ROD PIVOT
$19.70¢9 850
1
#8
52464-GW6-000
COLLAR, CUSHION ARM
$9.33¢4 663
1
#9
52473-GN1-000
COLLAR, CONNECTING ROD
$18.87¢9 436
1
#10
52475-KTK-000
ROD SUB-ASSY., CUSHION CONNECTING
$216.14¢108 071
1
#11
52486-GN1-000
COLLAR, DAMPER (LOWER)
$10.03¢5 014
1
#12
87516-KV6-610
LABEL, RR. DAMPER (ENGLISH)
$5.84¢2 921
1
#13
90128-GN1-000
BOLT, FLANGE (10X61)
$7.64¢3 818
1
#14
90128-GC5-000
BOLT, FLANGE (10X70)
$16.96¢8 481
1
#15
90150-GN1-000
BOLT, FLANGE (8X47)
$6.69¢3 347
1
#16
90152-GN1-000
BOLT, FLANGE (10X55)
$1.66¢828
1
#17
90130-KA3-730
BOLT, FLANGE (10X98)
$23.11¢11 558
1
#18
90304-KN4-A61
NUT, U FLANGE (10MM)
$3.36¢1 679
1
#19
90309-428-731
NUT, FLANGE (M8X1.25) (SELF-LOCK)
$3.74¢1 869
1
#19
90309-KF0-003
NUT, FLANGE (8MM)
$3.74¢1 869
1
#20
91262-KN4-A61
CAP, DUST SEAL
$7.73¢3 864
1
#21
91263-GN1-003
SEAL, DAMPER (LOWER)
$5.30¢2 651
1
