CARBURETOR CRF100F

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

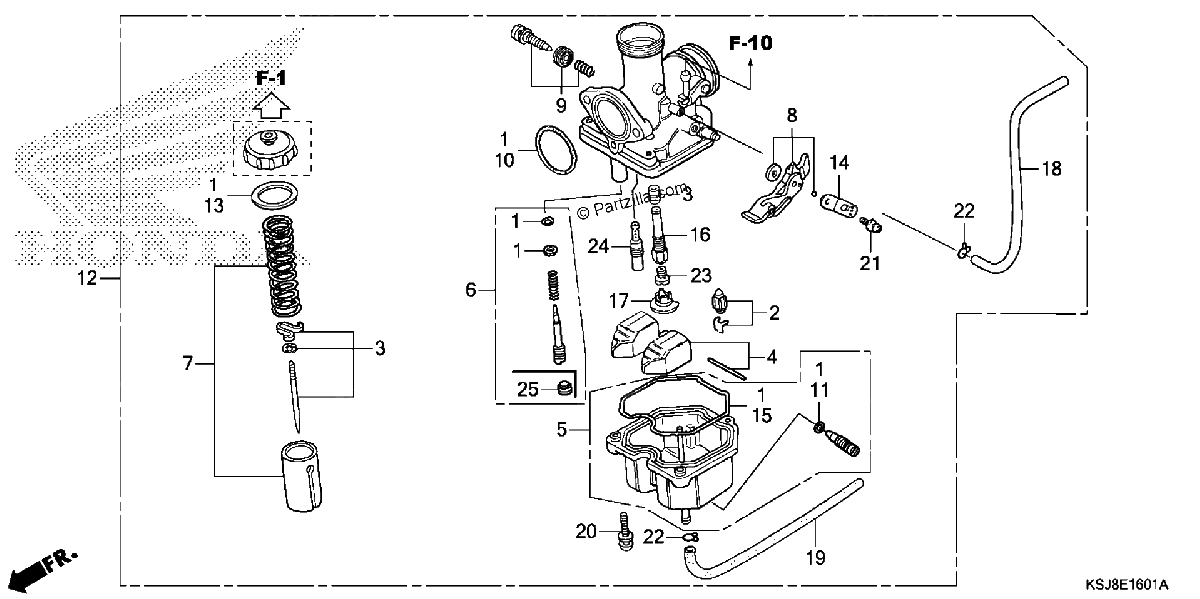

Diagrama de CARBURETOR CRF100F

Repuestos

#1
16010-KN4-A10
GASKET SET
$14.13¢7 067
1
#2
16011-KN4-A61
VALVE SET, FLOAT
$53.96¢26 979
1
#3
16012-KSJ-A01
NEEDLE SET, JET
$34.80¢17 400
1
#4
16013-KN4-A10
FLOAT SET
$37.02¢18 509
1
#5
16015-KN4-A10
CHAMBER SET, FLOAT
$115.53¢57 764
1
#6
16016-KSJ-A81
SCREW SET A
No Disponible
1
#7
16022-KN4-A61
VALVE SET, THROTTLE
$42.61¢21 304
1
#8
16025-KCN-751
LEVER SET, CHOKE
$45.36¢22 678
1
#9
16028-KEB-G01
SCREW SET B
$12.83¢6 417
1
#9
16028-KEH-900
SCREW SET B
$12.83¢6 417
1
#10
16075-GHB-B70
O-RING (2.4X29)
$8.72¢4 358
1
#11
16075-GHB-640
O-RING (1.3X4.3)
$3.36¢1 679
1
#12
16100-KSJ-A81
CARBURETOR ASSY. (PDCDC A)
$325.89¢162 943
1
#13
16110-KN4-651
GASKET, TOP
$9.11¢4 554
1
#14
16119-440-004
PLATE, STAY
$11.56¢5 779
1
#15
16163-KCS-920
GASKET, FLOAT CHAMBER
$12.72¢6 360
1
#16
16165-KN4-A61
HOLDER, NEEDLE JET
$32.75¢16 376
1
#17
16168-382-014
HOLDER, JET
$9.63¢4 813
1
#18
16199-KN4-A61
TUBE, AIR VENT
$6.80¢3 398
1
#19
16199-435-771
TUBE, OVERFLOW
$12.17¢6 084
1
#20
93892-04016-08
SCREW-WASHER (4X16)
$0.86¢431
1
#21
93892-05012-08
SCREW-WASHER (5X12)
$1.36¢678
1
#21
93892-05012-18
SCREW-WASHER (5X12)
$1.36¢678
1
#22
95002-02659
CLIP, TUBE (B6.5)
$1.30¢650
1
#23
99101-393-0920
JET, MAIN (#92)
$8.90¢4 451
1
#23
99101-GHB-0920
JET, MAIN (#92)
$8.90¢4 451
1
#23
99101-GHB-0980
JET, MAIN (#98)
$7.14¢3 571
1
#24
99104-KN4-0350
JET, SLOW (#35)
$11.81¢5 905
1
#25
16312-KYK-911
CAP, ADJUSTING SCREW
$3.21¢1 604
1
