FRONT FORK 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

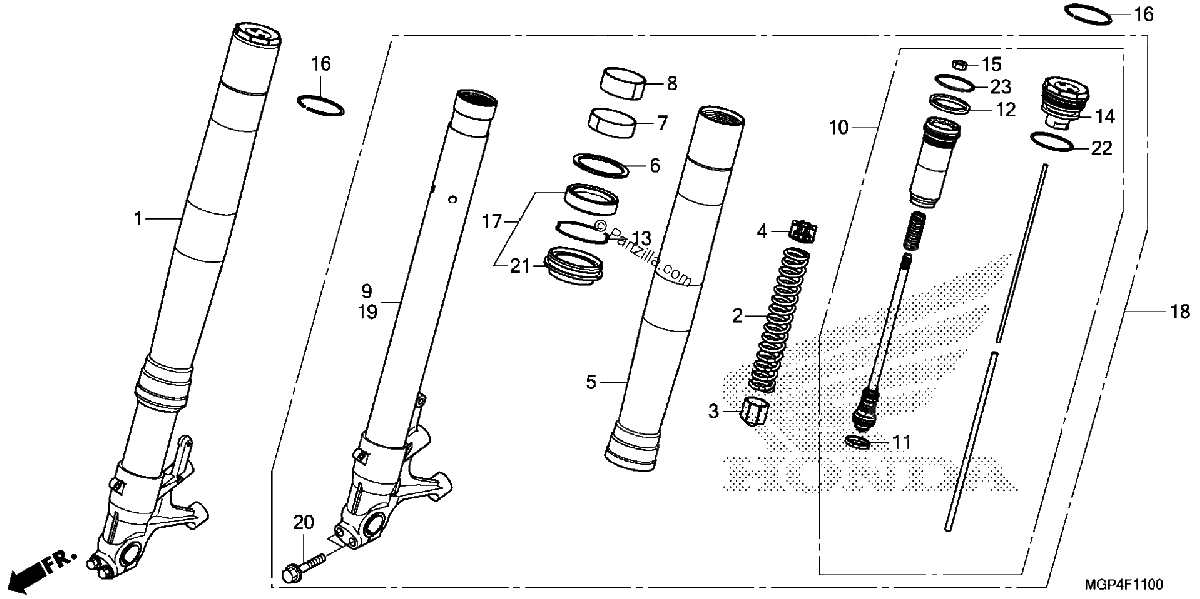

Diagrama de FRONT FORK 1

Repuestos

#1
51400-MGP-307
FORK ASSY., R. FR. (COO) (SHOWA)
$1654.79¢827 396
1
#2
51401-MGP-D01
SPRING, FR. FORK
$110.91¢55 453
1
#3
51403-MGP-D01
COLLAR, SPRING
$14.21¢7 107
1
#4
51404-MGP-D01
COLLAR B, SPRING
$10.88¢5 440
1
#5
51410-MGP-M31
TUBE (OUTER)
$644.09¢322 046
1
#6
51412-MEL-003
RING, BACK-UP
$6.24¢3 122
1
#7
51414-MFN-D01
BUSH, GUIDE
$7.89¢3 944
1
#8
51415-MGP-D01
BUSH, SLIDER
$15.85¢7 923
1
#9
51425-MGP-D01
PIPE, R. SLIDE
$527.53¢263 764
1
#10
51430-MGP-D01
ROD, PISTON
$893.19¢446 597
1
#11
51437-MGP-D01
RING, PISTON
$9.12¢4 560
1
#12
51438-MGP-D01
RING B, PISTON
$6.81¢3 404
1
#13
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.04¢2 519
1
#14
51450-MGP-D01
BOLT, Front FORK
$129.50¢64 751
1
#15
51451-MGP-D01
NUT, HEX.
$2.27¢1 133
1
#16
51455-MW4-003
RING, STOPPER
$13.12¢6 561
1
#17
51490-MFL-003
SEAL SET, FR. FORK
$21.36¢10 678
1
#18
51500-MGP-307
FORK ASSY., L. FR. (COO) (SHOWA)
$1654.79¢827 396
1
#18
51500-MGP-M31
FORK ASSY., L. FR. (SHOWA)
No Disponible
1
#19
51525-MGP-D01
PIPE, L SLIDE
$527.53¢263 764
1
#20
90109-MR7-000
BOLT, FLANGE (8X45)
$5.51¢2 754
1
#21
91254-MEJ-003
DUST SEAL
$13.80¢6 900
1
#22
91258-GF4-003
O-RING (42.2X2.4)
$6.59¢3 295
1
#23
91258-MGP-D01
O-RING (39.5X1.8)
$4.47¢2 237
1
