FRONT BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

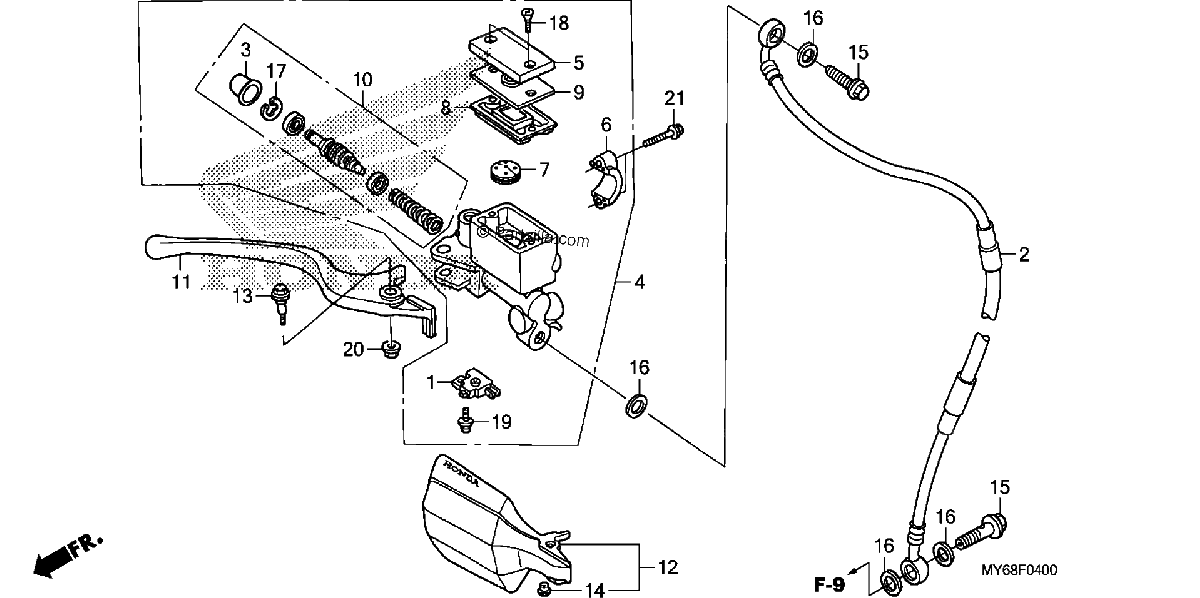

Diagrama de FRONT BRAKE MASTER CYLINDER

Repuestos

#1
35340-MA5-671
SWITCH ASSY., FR. STOP
$28.44¢14 219
1
#001
35340-MA5-671
SWITCH ASSY., FR. STOP
$28.44¢14 219
1
#002
45125-MY6-671
HOSE, FR. BRAKE
$122.01¢61 006
1
#2
45125-MY6-671
HOSE, FR. BRAKE
$122.01¢61 006
1
#3
45504-410-003
BOOT
$14.24¢7 119
1
#003
45504-410-003
BOOT
$14.24¢7 119
1
#004
45510-MGW-305
MASTER CYLINDER SUB-ASSY., FR. (COO)
$366.85¢183 425
1
#4
45510-MGW-305
MASTER CYLINDER SUB-ASSY., FR. (COO)
$366.85¢183 425
1
#5
45513-KK1-771
CAP, MASTER CYLINDER
$5.04¢2 519
1
#005
45513-KK1-771
CAP, MASTER CYLINDER
$5.04¢2 519
1
#5
45513-HR0-305
CAP, MASTER CYLINDER (COO)
$5.04¢2 519
1
#005
45513-HR0-305
CAP, MASTER CYLINDER (COO)
$5.04¢2 519
1
#6
45517-166-006
HOLDER, MASTER CYLINDER
$15.74¢7 869
1
#006
45517-166-006
HOLDER, MASTER CYLINDER
$15.74¢7 869
1
#007
45518-MG3-016
SEPARATOR
$15.48¢7 738
1
#7
45518-MG3-016
SEPARATOR
$15.48¢7 738
1
#008
45520-MG7-006
DIAPHRAGM
$12.31¢6 156
1
#8
45520-MG7-006
DIAPHRAGM
$12.31¢6 156
1
#009
45521-HA2-006
PLATE, DIAPHRAGM
$12.60¢6 300
1
#9
45521-HA2-006
PLATE, DIAPHRAGM
$12.60¢6 300
1
#010
45530-KJ1-702
MASTER CYLINDER SET
$60.04¢30 019
1
#10
45530-KJ1-702
MASTER CYLINDER SET
$60.04¢30 019
1
#011
53175-MGW-305
LEVER, R. HANDLEBAR (COO)
$21.65¢10 825
1
#11
53175-MGW-305
LEVER, R. HANDLEBAR (COO)
$21.65¢10 825
1
#011
53175-KBR-000
LEVER, Right HANDLEBAR
$21.65¢10 825
1
#12
53180-KF0-770ZF
GUARD, Right KNUCKLE NH196 (ROSS WHITE)
$28.90¢14 450
1
#012
53180-KF0-770ZF
GUARD, Right KNUCKLE NH196 (ROSS WHITE)
$28.90¢14 450
1
#13
90113-KF0-770
BOLT, HANDLE LEVER PIVOT
$6.95¢3 475
1
#013
90113-KF0-770
BOLT, HANDLE LEVER PIVOT
$6.95¢3 475
1
#14
90127-KF0-770
COLLAR (6X4)
$4.15¢2 075
1
#014
90127-KF0-770
COLLAR (6X4)
$4.15¢2 075
1
#015
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#15
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#16
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#016
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#17
90651-MA5-671
CIRCLIP
$3.10¢1 550
1
#017
90651-MA5-671
CIRCLIP
$3.10¢1 550
1
#18
93600-04012-0G
SCREW, FLAT (4X12)
$1.16¢581
1
#018
93600-04012-0G
SCREW, FLAT (4X12)
$1.16¢581
1
#018
93600-04012-1G
SCREW, FLAT (4X12)
$1.16¢581
1
#18
93600-04012-1G
SCREW, FLAT (4X12)
$1.16¢581
1
#019
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#19
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#019
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
#19
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
#020
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#20
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#021
96001-06022-07
BOLT, FLANGE (6X22)
$2.38¢1 188
1
#21
96001-06022-07
BOLT, FLANGE (6X22)
$2.38¢1 188
1
