FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

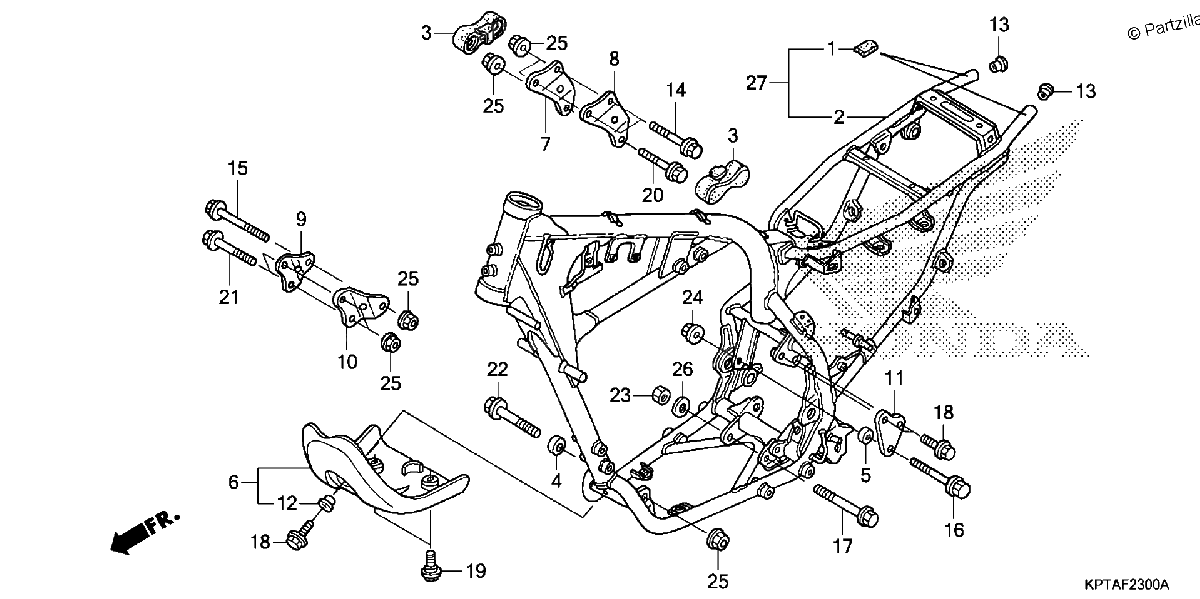

Diagrama de FRAME

Repuestos

#1
17518-KPF-900
RUBBER B, FUEL TANK
$2.24¢1 119
1
#2
50100-KPT-A00ZA
FRAME *NH146M* (ACCURATE SILVER METALLIC)
$938.84¢469 419
1
#3
50212-KPS-900
RUBBER, TANK GUARD
$4.86¢2 431
1
#4
50318-GE2-000
COLLAR, ENGINE MOUNTING
$7.95¢3 975
1
#5
50318-KPT-A00
COLLAR, RR. ENGINE MOUNT (UPPER)
$3.61¢1 806
1
#6
50351-KPT-A00ZA
PLATE, SKID *NH201R* (HUSKY GRAY)
$38.91¢19 456
1
#7
50531-KPT-A00
PLATE, R. ENGINE HANGER (UPPER)
$9.91¢4 956
1
#8
50532-KPT-A00
PLATE, L. ENGINE HANGER (UPPER)
$7.75¢3 875
1
#9
50533-KPS-900
PLATE, R. FR. ENGINE HANGER
$5.00¢2 500
1
#10
50534-KPS-900
PLATE, L. FR. ENGINE HANGER
$5.00¢2 500
1
#11
50535-KPT-900
PLATE, L. RR. ENGINE HANGER (UPPER)
$3.34¢1 669
1
#12
80138-KPS-900
COLLAR (14X5)
$2.73¢1 363
1
#13
84103-392-000
CAP, RR. BUMPER
$4.71¢2 356
1
#14
90013-KRH-D20
BOLT, FLANGE (8X56)
$2.01¢1 006
1
#15
90024-MV9-670
BOLT, FLANGE (8X88)
$9.65¢4 825
1
#16
90102-KPT-A00
BOLT, FLANGE (10X118)
$10.80¢5 400
1
#17
90105-MG3-000
BOLT, FLANGE (10X110)
$11.89¢5 944
1
#18
90107-KPS-900
BOLT, FLANGE (8X16)
$1.31¢656
1
#19
90111-162-000
BOLT, FLANGE (6MM)
$3.65¢1 825
1
#20
90150-GN1-000
BOLT, FLANGE (8X47)
$7.28¢3 638
1
#21
90154-KB7-700
BOLT, FLANGE (8X73)
$27.21¢13 606
1
#22
90156-KK6-000
BOLT, FLANGE (8X96)
$11.68¢5 838
1
#23
90203-GHR-850
NUT, HEX. (10MM)
$1.23¢613
1
#23
94030-10200
NUT, HEX. (10MM)
$1.25¢625
1
#24
90208-GHR-650
NUT, FLANGE (10MM)
$1.09¢544
1
#24
90303-KPS-900
NUT, FLANGE (10MM)
$1.09¢544
1
#25
90208-GHR-640
NUT, FLANGE (8MM)
$3.01¢1 506
1
#25
90306-KPS-900
NUT, FLANGE (8MM)
$3.01¢1 506
1
#26
90441-MT3-000
WASHER (10MM)
$12.66¢6 331
1
