REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

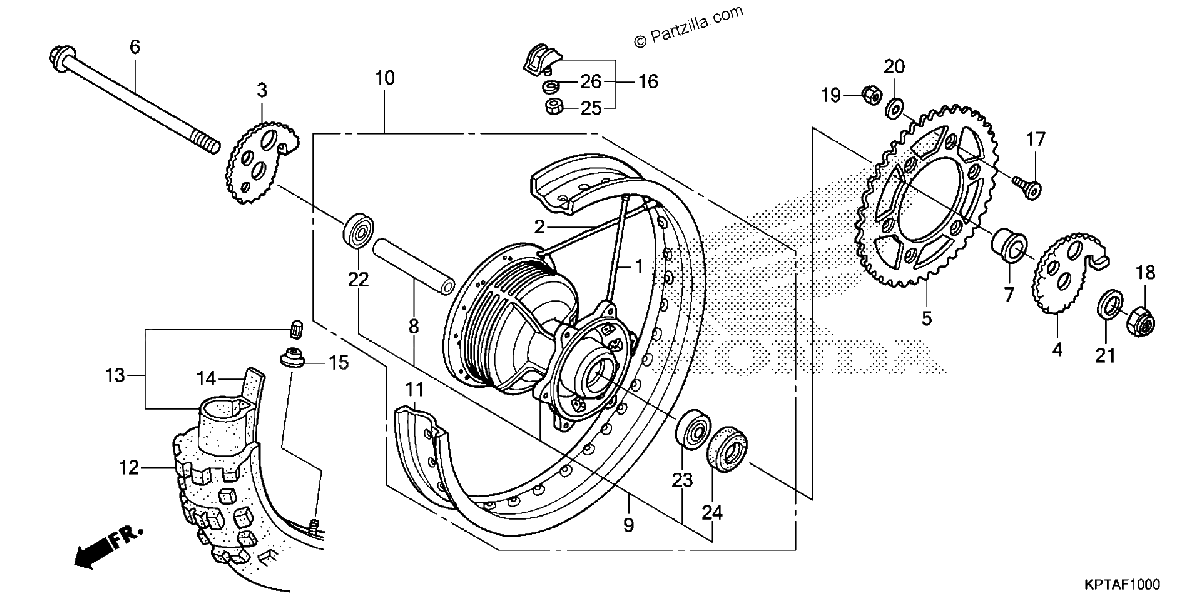

Diagrama de REAR WHEEL

Repuestos

#1
06420-KPT-A00
SPOKE SET A, RR.
$4.07¢2 037
1
#2
06421-KPT-A00
SPOKE SET B, RR.
$3.93¢1 963
1
#3
40544-KPS-730
ADJUSTER, R. CHAIN
$11.56¢5 781
1
#4
40545-KPS-730
ADJUSTER, L. CHAIN
$11.56¢5 781
1
#5
41201-KPT-A00
SPROCKET, FINAL DRIVEN (47T)
$123.56¢61 781
1
#6
42301-KPS-900
AXLE, RR. WHEEL
$29.46¢14 731
1
#7
42312-KPS-900
COLLAR, RR. WHEEL
$9.63¢4 813
1
#8
42620-KPS-900
COLLAR, RR. AXLE DISTANCE
$20.96¢10 481
1
#9
42635-KPT-A00
HUB SUB-ASSY., RR.
$339.20¢169 600
1
#10
42650-KPT-305
WHEEL SET, RR. (COO)
$578.61¢289 306
1
#11
42701-KPT-902
RIM, RR. WHEEL
$275.09¢137 544
1
#12
42711-KPT-902
TIRE, RR. (90/100-16 NHS 51M) (PIRELLI)
$359.31¢179 656
1
#13
42712-KPT-901
TUBE, TIRE (90/100-16) (PIRELLI)
$65.82¢32 912
1
#14
42713-KPT-900
FLAP, TIRE (1.60-16) (PIRELLI)
$3.55¢1 775
1
#15
42714-KA3-710
CAP, VALVE
$12.15¢6 075
1
#16
44715-MA0-770
STOPPER, BEAD (1.60)
$42.71¢21 356
1
#17
90125-KA4-000
SCREW, FLAT (8X31)
$3.74¢1 869
1
#18
90305-GW2-711
NUT, U (16MM)
$19.01¢9 506
1
#19
90309-ML3-791
NUT, U (8MM) (FUSE RASHI)
$5.29¢2 644
1
#20
90465-MC4-000
WASHER (8MM)
$3.24¢1 619
1
#21
90559-KPS-900
WASHER, RR. AXLE
$1.15¢575
1
#22
91013-KPS-731
BEARING, RADIAL BALL (6203U) (FUJIKOSHI)
$11.84¢5 919
1
#22
91013-KPS-732
BEARING, RADIAL BALL (6203U) (NSK)
$11.84¢5 919
1
#22
96140-62030-10
BEARING, RADIAL BALL (6203U)
$13.83¢6 913
1
#23
91051-KPS-731
BEARING, RADIAL BALL (6303U) (NACHI) (NA USE ALT:91051-KPS-732)
No Disponible
1
#23
91051-KPS-732
BEARING, RADIAL BALL (6303U) (NSK)
$14.07¢7 038
1
#23
96140-63030-10
BEARING, RADIAL BALL (6303U)
$16.94¢8 469
1
#24
91253-033-003
OIL SEAL (25X47X6.5)
$7.21¢3 606
1
#25
94001-08000-0S
NUT, HEX. (8MM)
$1.68¢838
1
#26
94111-08000
WASHER, SPRING (8MM)
$1.21¢606
1
