CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

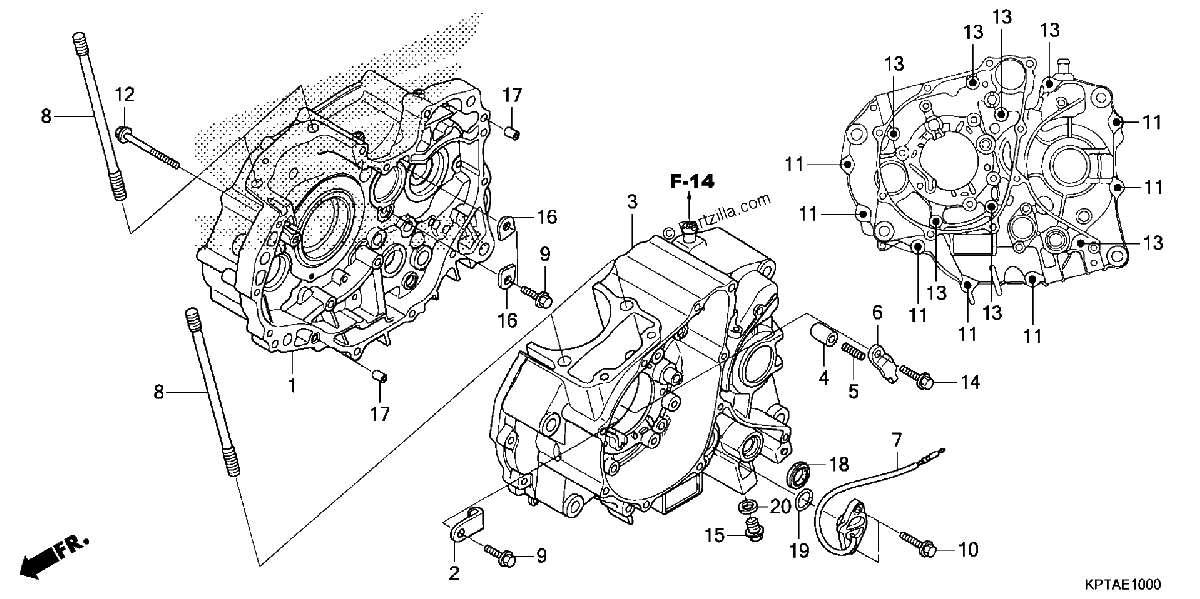

Diagrama de CRANKCASE

Repuestos

#1
11100-KRE-B00
CRANKCASE, R.
$122.27¢61 137
1
#2
11108-KTT-900
PLATE, L. BEARING SETTING
$22.73¢11 363
1
#3
11200-KRE-B00
CRANKCASE, L.
$128.11¢64 056
1
#4
11215-KRM-840
PLUG, BEARING PUSH
$2.97¢1 487
1
#5
11216-KRM-840
SPRING, BEARING PUSH
$1.06¢531
1
#6
11217-KRM-840
PLATE, BEARING PUSH
$14.80¢7 400
1
#7
35759-KPT-A01
CONTACT ASSY., NEUTRAL SWITCH
$23.51¢11 756
1
#8
90031-KRM-840
BOLT, CYLINDER STUD (8X140)
$4.63¢2 313
1
#9
90032-GHR-660
BOLT, FLANGE (6X16)
$1.79¢894
1
#9
95701-06016-00
BOLT, FLANGE (6X16)
$2.09¢1 044
1
#10
90032-GHR-680
BOLT, FLANGE (6X20)
$2.31¢1 156
1
#11
95701-06040-00
BOLT, FLANGE (6X40)
$2.41¢1 206
1
#11
90032-GHR-760
BOLT, FLANGE (6X40)
No Disponible
1
#12
90032-GHR-770
BOLT, FLANGE (6X45)
$4.40¢2 200
1
#12
95701-06045-07
BOLT, FLANGE (6X45)
$2.79¢1 394
1
#12
95701-06045-00
BOLT, FLANGE (6X45)
$2.79¢1 394
1
#13
90032-GHR-820
BOLT, FLANGE (6X70)
$17.30¢8 650
1
#13
95701-06070-00
BOLT, FLANGE (6X70)
$2.95¢1 475
1
#14
90040-GHR-670
BOLT, FLANGE (6X18)
$1.41¢706
1
#14
96001-06018-00
BOLT, FLANGE (6X18)
$2.21¢1 106
1
#15
90131-KRM-840
BOLT, DRAIN PLUG (12MM)
$2.19¢1 094
1
#16
90441-KRM-840
PLATE, BEARING HOLDER
$0.78¢388
1
#17
90702-KRM-840
PIN, DOWEL (8X14)
$0.86¢431
1
#18
91203-KRM-841
OIL SEAL (14X22X5)
$2.48¢1 238
1
#19
91305-KPH-900
O-RING (19.4X2.3)
$1.85¢925
1
#20
90401-KRM-R20
WASHER, DRAIN PLUG (12MM)
$7.49¢3 744
1
