SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

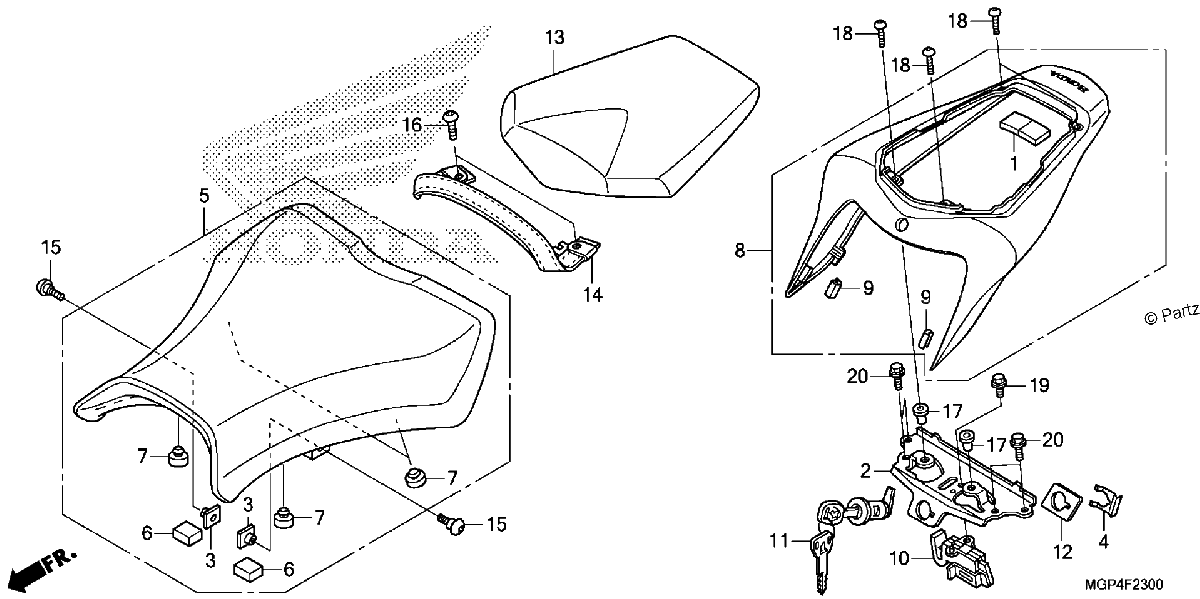

Diagrama de SEAT

Repuestos

#1
11353-KSV-J10
MAT A, L. FR. COVER
$2.71¢1 357
1
#2
50217-MFL-000
PLATE, CROSS (UPPER)
$39.01¢19 504
1
#3
61304-162-013
NUT, HEADLIGHT SETTING
$3.86¢1 932
1
#4
75581-GN8-920
SPRING, LOCK KEY SETTING
$5.35¢2 674
1
#5
77100-MFL-003
SEAT ASSY., SINGLE
$220.06¢110 032
1
#6
77103-MFL-300
CUSHION, SINGLE SEAT
$2.17¢1 087
1
#7
77207-MEL-000
RUBBER, SEAT CUSHION
$3.69¢1 846
1
#8
77210-MGP-M20ZA
COWL SET, RR. SEAT (TYPE1) (WL)
$444.69¢222 347
1
#9
77212-MFJ-D00
PROTECTOR, RUBBER
$2.06¢1 029
1
#10
77220-MEE-D01
HOOK, SEAT CATCH
$35.95¢17 975
1
#11
77225-MFJ-D01
LOCK ASSY., SEAT
$41.20¢20 602
1
#12
77236-GW0-000
WASHER, SEAT LOCK
$3.36¢1 679
1
#12
77236-GZ5-000
WASHER, SEAT LOCK
$3.36¢1 679
1
#13
77300-MFL-003
SEAT ASSY., PILLION
$200.51¢100 257
1
#14
77310-MFL-000
SEAT BELT
$25.45¢12 725
1
#15
90104-MJ0-660
SCREW, SPECIAL (6X8)
$4.62¢2 311
1
#16
90106-MFL-000
BOLT, SPECIAL (6X17)
$2.51¢1 254
1
#17
90111-KW3-003
NUT, COWL SETTING (5MM)
$5.04¢2 519
1
#18
90120-MEL-000
SCREW, PAN (5X20)
$2.32¢1 162
1
#19
96001-06012-00
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#20
96001-06014-00
BOLT, FLANGE (6X14)
$2.13¢1 064
1
