COWLING UPPER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

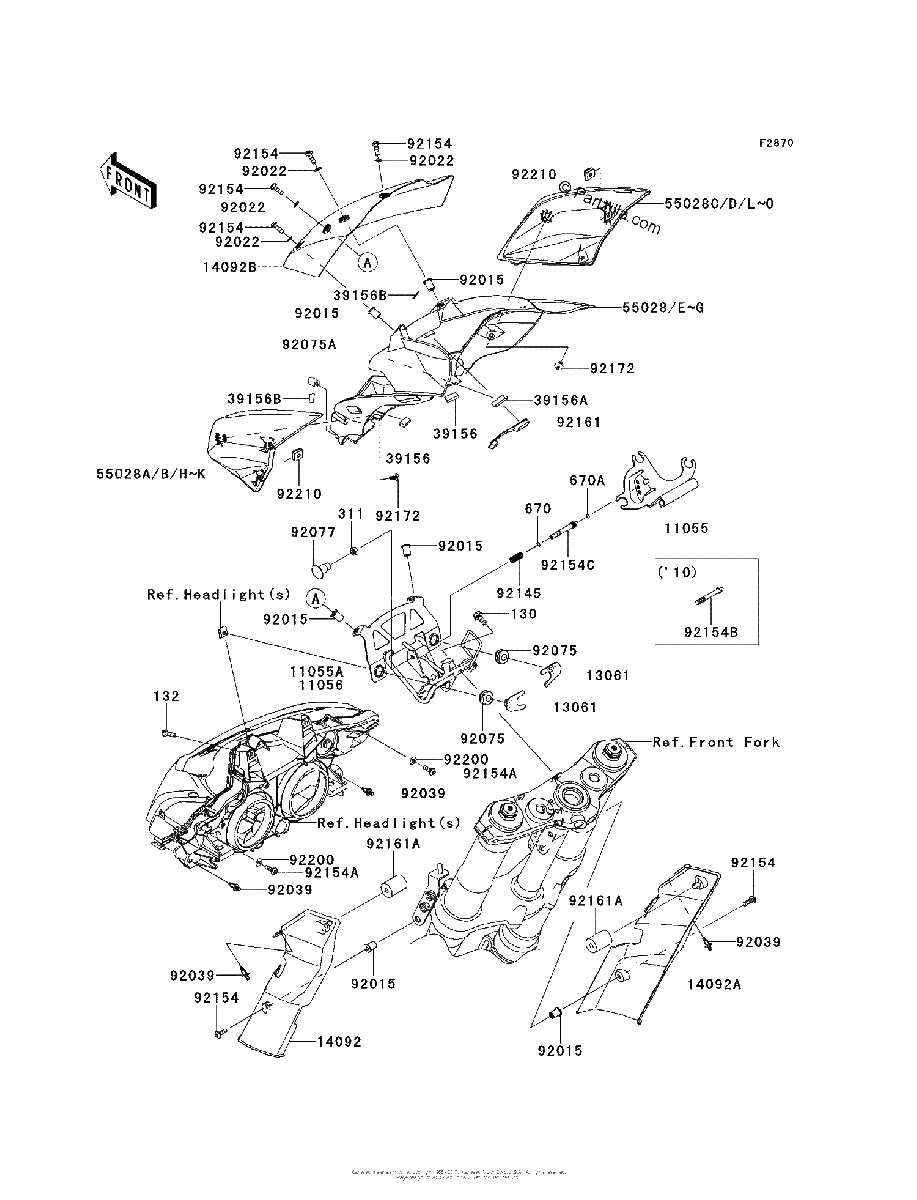

Diagrama de COWLING UPPER

Repuestos

#130
130BA0614
BOLT FLANGED,6X14
$1.26¢631
1
#132
132BB0516
BOLT FLANGED SMALL
$1.38¢688
1
#311
311AB0600
NUT HEX,6MM,BLACK
$0.61¢306
1
#670
670B1503
O RING,3MM
$4.31¢2 156
1
#670A
670B1505
O RING,5MM
$2.91¢1 456
1
#11055
11055-1700
BRACKET,METER
$36.29¢18 144
1
#11055A
11055-1702
BRACKET,HEAD LAMP
No Disponible
1
#11056
11056-0707
BRACKET,HEAD LAMP
$88.83¢44 413
1
#13061
13061-0378
BOSS
$12.96¢6 481
1
#14092
14092-0017-6Z
COVER,FORK,Left Hand,F BLACK
$44.19¢22 094
1
#14092A
14092-0018-6Z
COVER,FORK,Right Hand,F BLACK
$44.19¢22 094
1
#14092B
14092-0082
COVER,COWLING
$197.00¢98 500
1
#39156B
39156-0632
PAD,Upper COWLING,CNT
$4.42¢2 213
1
#39156
39156-0284
PAD
$1.41¢706
1
#39156A
39156-0548
PAD,RUBBER
$2.63¢1 313
1
#55028C
55028-0364-40R
COWLING,Upper,Right Hand,G B GREEN
$107.00¢53 500
1
#55028N
55028-0364-40R
COWLING,Upper,Right Hand,G B GREEN
$107.00¢53 500
1
#55028C
55028-0364-660
COWLING,Upper,Right Hand,M S BLACK
$107.00¢53 500
1
#55028C
55028-0364-H8
COWLING,Upper,Right Hand,EBONY
$108.91¢54 456
1
#55028A
55028-0363-H8
COWLING,Upper,Left Hand,EBONY
$108.91¢54 456
1
#55028C
55028-0364-17L
COWLING,Upper,Right Hand,C B ORANGE
$108.91¢54 456
1
#55028A
55028-0363-660
COWLING,Upper,Left Hand,M S BLACK
$107.00¢53 500
1
#55028
55028-0285-18T
COWLING,Upper,CNT,F S BLACK
No Disponible
1
#55028J
55028-0363-40R
COWLING,Upper,Left Hand,G B GREEN
$107.00¢53 500
1
#55028A
55028-0286-25Y
COWLING,Upper,Left Hand,P S WHITE
No Disponible
1
#55028A
55028-0286-660
COWLING,Upper,Left Hand,M S BLACK
No Disponible
1
#55028C
55028-0287-25Y
COWLING,Upper,Right Hand,P S WHITE
No Disponible
1
#55028C
55028-0287-660
COWLING,Upper,Right Hand,M S BLACK
No Disponible
1
#55028
55028-0362-17P
COWLING,UPP,CNT,C.L.GREEN
$220.17¢110 087
1
#55028F
55028-0362-18T
COWLING,Upper,CNT,F S BLACK
$215.54¢107 769
1
#55028
55028-0362-18T
COWLING,Upper,CNT,F S BLACK
$215.54¢107 769
1
#55028
55028-0362-32N
COWLING,Upper,CNT,F EBONY
$220.17¢110 087
1
#55028A
55028-0363-17L
COWLING,Upper,Left Hand,C B ORANGE
$108.91¢54 456
1
#55028A
55028-0363-40R
COWLING,Upper,Left Hand,G B GREEN
$107.00¢53 500
1
#92015
92015-1757
NUT,WELL,5MM
$7.26¢3 631
1
#92022
92022-1521
WASHER,NYLON,5.3X11.5X1.5
$3.90¢1 950
1
#92039
92039-0051
RIVET
$4.61¢2 306
1
#92075
92075-1028
DAMPER
$4.65¢2 325
1
#92075A
92075-1964
DAMPER
$4.96¢2 481
1
#92077
92077-0027
KNOB
$17.96¢8 981
1
#92145
92145-0756
SPRING
$4.35¢2 175
1
#92154
92154-0026
BOLT,SOCKET,5X16
$2.36¢1 181
1
#92154A
92154-0209
BOLT,SOCKET,5X16
$2.54¢1 269
1
#92154B
92154-0453
BOLT,6X42
$11.61¢5 806
1
#92154C
92154-0540
BOLT,6X42
$11.80¢5 900
1
#92161
92161-0191
DAMPER,TAIL LAMP
$4.56¢2 281
1
#92161A
92161-0865
DAMPER,6.3X22X30
$2.76¢1 381
1
#92172
92172-1061
SCREW,TAPPING,5X10
No Disponible
1
#92200
92200-1480
WASHER,NYLON,5.3X11.5X0.5
$1.56¢781
1
#92210
92210-0351
NUT,5MM
$5.56¢2 781
1
