REAR CASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

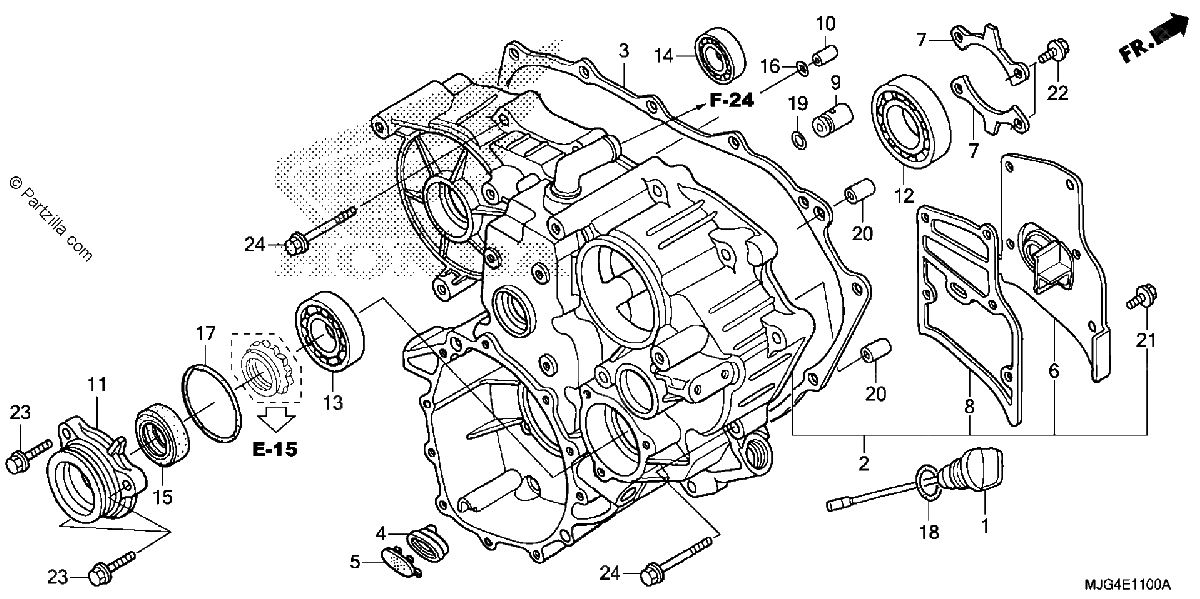

Diagrama de REAR CASE

Repuestos

#001
15650-MCA-010
DIPSTICK, OIL
$21.34¢10 672
1
#1
15650-MCA-010
DIPSTICK, OIL
$21.34¢10 672
1
#002
21100-MJG-670
CASE ASSY., RR.
$1207.58¢603 790
1
#2
21100-MJG-670
CASE ASSY., RR.
$1207.58¢603 790
1
#003
21112-MCA-010
GASKET, RR. CASE
$43.76¢21 879
1
#3
21112-MCA-010
GASKET, RR. CASE
$43.76¢21 879
1
#4
21116-MCA-780
BODY, SCAVENGE OIL PUMP STRAINER
$8.76¢4 382
1
#004
21116-MCA-780
BODY, SCAVENGE OIL PUMP STRAINER
$8.76¢4 382
1
#005
21117-MCA-780
CAP, SCAVENGE OIL PUMP STRAINER
$6.31¢3 157
1
#5
21117-MCA-780
CAP, SCAVENGE OIL PUMP STRAINER
$6.31¢3 157
1
#006
21120-MEC-000
PLATE, BREATHER
$19.29¢9 643
1
#6
21120-MEC-000
PLATE, BREATHER
$19.29¢9 643
1
#7
21122-MN5-000
PLATE, PRIMARY BEARING SETTING
$11.56¢5 779
1
#007
21122-MN5-000
PLATE, PRIMARY BEARING SETTING
$11.56¢5 779
1
#008
21125-MEC-003
GASKET, BREATHER PLATE
$17.57¢8 786
1
#8
21125-MEC-003
GASKET, BREATHER PLATE
$17.57¢8 786
1
#9
22360-MEC-000
VALVE ASSY., CLUTCH REGULATOR
$36.18¢18 089
1
#009
22360-MEC-000
VALVE ASSY., CLUTCH REGULATOR
$36.18¢18 089
1
#010
22465-MCA-000
ORIFICE, CLUTCH CONTROL
$4.86¢2 432
1
#10
22465-MCA-000
ORIFICE, CLUTCH CONTROL
$4.86¢2 432
1
#11
23751-MN5-000
HOLDER, FINAL SHAFT BEARING
$132.84¢66 418
1
#011
23751-MN5-000
HOLDER, FINAL SHAFT BEARING
$132.84¢66 418
1
#12
91002-MN5-003
BEARING, RADIAL BALL (6010) (NTN)
$91.62¢45 810
1
#012
91002-MN5-003
BEARING, RADIAL BALL (6010) (NTN)
$91.62¢45 810
1
#013
91006-MT3-003
BEARING, RADIAL BALL (6206) (NTN)
$26.77¢13 386
1
#13
91006-MT3-003
BEARING, RADIAL BALL (6206) (NTN)
$26.77¢13 386
1
#13
91011-MN5-003
BEARING, RADIAL BALL (6206) (TOYO)
$26.77¢13 386
1
#013
91011-MN5-003
BEARING, RADIAL BALL (6206) (TOYO)
$26.77¢13 386
1
#014
91015-MCA-003
BEARING, RADIAL BALL (6905)
$12.27¢6 135
1
#14
91015-MCA-003
BEARING, RADIAL BALL (6905)
$12.27¢6 135
1
#15
91204-MN5-005
OIL SEAL (28X48X9) (NOK)
$14.46¢7 228
1
#015
91204-MN5-005
OIL SEAL (28X48X9) (NOK)
$14.46¢7 228
1
#016
91304-MC7-003
O-RING B (6.8X2.5) (ARAI)
$3.36¢1 679
1
#16
91304-MC7-003
O-RING B (6.8X2.5) (ARAI)
$3.36¢1 679
1
#017
91316-PT6-003
O-RING (62.4X3.1)
$6.35¢3 174
1
#17
91316-PT6-003
O-RING (62.4X3.1)
$6.35¢3 174
1
#17
91316-PE7-730
O-RING (62.4X3.1)
$6.35¢3 174
1
#017
91316-PE7-730
O-RING (62.4X3.1)
$6.35¢3 174
1
#17
91304-MN5-003
O-RING (63X3) (ARAI)
$6.35¢3 174
1
#017
91304-MN5-003
O-RING (63X3) (ARAI)
$6.35¢3 174
1
#018
91307-035-000
O-RING (18X3)
$3.36¢1 679
1
#18
91307-035-000
O-RING (18X3)
$3.36¢1 679
1
#019
91313-MB0-003
O-RING (14.7X2.2) (ARAI)
$4.09¢2 047
1
#19
91313-MB0-003
O-RING (14.7X2.2) (ARAI)
$4.09¢2 047
1
#19
91313-MG7-004
O-RING (14.8X2.2)
$4.09¢2 047
1
#019
91313-MG7-004
O-RING (14.8X2.2)
$4.09¢2 047
1
#20
94301-10160
PIN, DOWEL (10X16)
$2.69¢1 346
1
#020
94301-10160
PIN, DOWEL (10X16)
$2.69¢1 346
1
#021
95701-06012-00
BOLT, FLANGE (6X12)
$1.92¢960
1
#21
95701-06012-00
BOLT, FLANGE (6X12)
$1.92¢960
1
#22
95701-06016-00
BOLT, FLANGE (6X16)
$1.92¢960
1
#022
95701-06016-00
BOLT, FLANGE (6X16)
$1.92¢960
1
#23
95701-08028-00
BOLT, FLANGE (8X28)
$1.64¢822
1
#023
95701-08028-00
BOLT, FLANGE (8X28)
$1.64¢822
1
#24
95701-08045-00
BOLT, FLANGE (8X45)
$1.74¢868
1
#024
95701-08045-00
BOLT, FLANGE (8X45)
$1.74¢868
1
