FUEL TANK 12 14

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

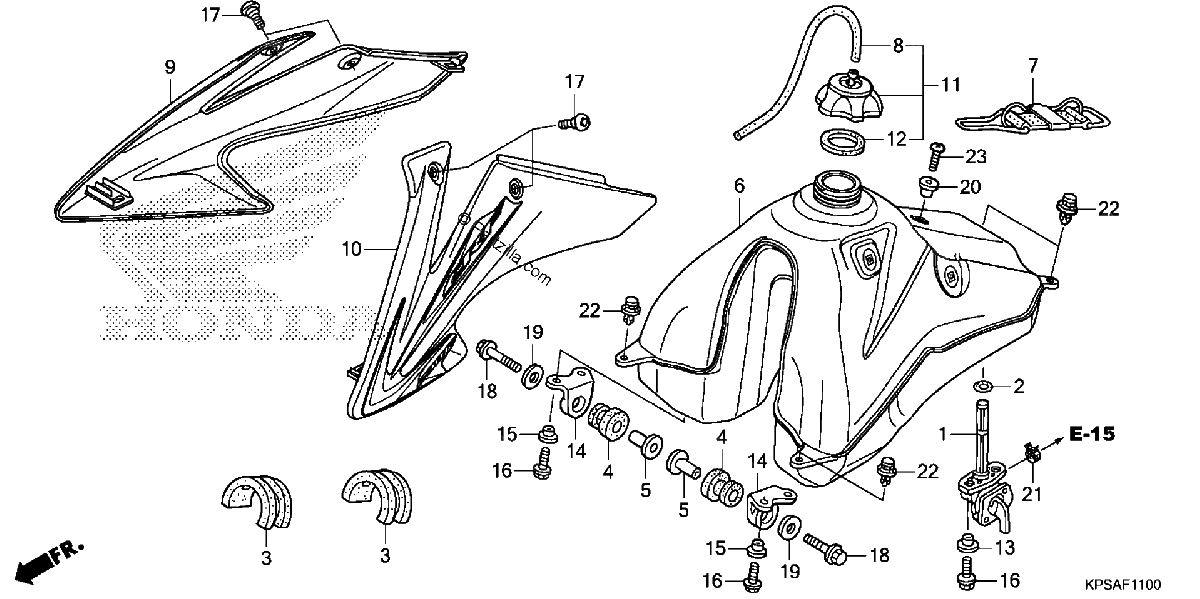

Diagrama de FUEL TANK 12 14

Repuestos

#1
16950-GCF-671
PETCOCK ASSY.
$79.13¢39 566
1
#2
16997-467-000
O-RING (11.8X3.55)
$2.62¢1 311
1
#3
17506-KPS-900
RUBBER, TANK SETTING
$4.62¢2 311
1
#4
17508-GBF-830
RUBBER, TANK MOUNTING
$6.59¢3 295
1
#5
17509-KPS-900
COLLAR, TANK SETTING
$10.74¢5 371
1
#6
17510-KPS-A10
TANK, FUEL
$431.48¢215 740
1
#7
17516-KPS-900
BAND, RR. TANK
$16.43¢8 217
1
#8
17521-429-000
TUBE, FUEL CAP BREATHER
$7.77¢3 887
1
#9
17545-KPS-B30ZA
SHROUD SET, R. TANK (TYPE1) (WL)
$192.49¢96 243
1
#10
17555-KPS-B30ZA
SHROUD SET, L. TANK (TYPE1) (WL)
$192.49¢96 243
1
#11
17620-GEL-770
CAP ASSY., FUEL TANK
$33.59¢16 796
1
#12
17624-GEL-770
GASKET, FUEL CAP
$5.12¢2 559
1
#13
17626-KPS-900
COLLAR, TANK SETTING
$1.13¢564
1
#14
17634-KPS-900
BRACKET, FR. FUEL TANK
$2.59¢1 294
1
#15
84706-415-000
COLLAR
$2.77¢1 386
1
#16
90040-GHR-660
BOLT, FLANGE (6X16)
$2.17¢1 087
1
#17
90103-KV3-830
SCREW A, COWL SETTING
$3.36¢1 679
1
#18
90137-KA3-830
BOLT, FLANGE (6X40)
$3.36¢1 679
1
#19
90503-898-000
WASHER, TANK CUSHION
$2.69¢1 346
1
#20
90522-KF0-000
COLLAR, SIDE COVER SETTING
$4.99¢2 496
1
#21
90651-KPS-A11
CLAMP, TUBE (D10.0)
$2.43¢1 213
1
#22
90653-HC4-900
CLIP, SPLASH GUARD
$0.70¢351
1
#23
93500-06018-0A
SCREW, PAN (6X18)
$1.36¢678
1
