FRONT BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

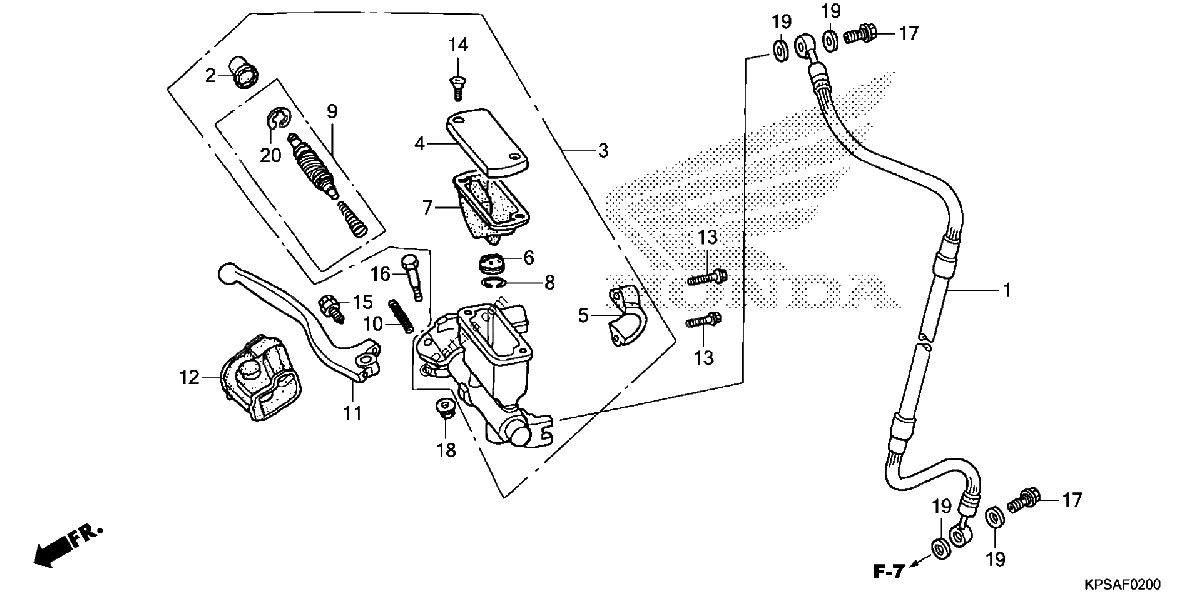

Diagrama de FRONT BRAKE MASTER CYLINDER

Repuestos

#1
45125-KPS-901
HOSE, FR. BRAKE
$60.32¢30 159
1
#2
45504-KN5-006
BOOT
$13.41¢6 704
1
#3
45510-KPT-305
MASTER CYLINDER SET, FR. (COO)
$139.25¢69 627
1
#4
45513-KCE-671
CAP, MASTER CYLINDER
$24.58¢12 288
1
#5
45517-GW0-751
HOLDER, MASTER CYLINDER
$13.25¢6 624
1
#6
45518-KA3-731
SEPARATOR
$13.02¢6 509
1
#7
45520-KA3-731
DIAPHRAGM
$14.49¢7 245
1
#8
45523-KA3-731
RING
$3.36¢1 679
1
#9
45530-KPS-901
MASTER CYLINDER SET
$132.40¢66 200
1
#10
53174-KN5-006
SPRING, BRAKE LEVER
$3.36¢1 679
1
#11
53175-KPT-305
LEVER, R. HANDLEBAR (COO)
$19.65¢9 827
1
#12
53176-ML3-791
COVER, R. HANDLE LEVER
$7.57¢3 783
1
#13
90040-GHR-690
BOLT, FLANGE (6X22)
$1.17¢586
1
#14
90104-KRM-R80
SCREW, FLAT (4X12)
$1.07¢535
1
#14
93600-04012-0G
SCREW, FLAT (4X12)
$1.07¢535
1
#15
90111-ML3-791
BOLT SET, ADJUSTER
$7.37¢3 686
1
#16
90114-166-006
BOLT, HANDLE LEVER PIVOT
$7.24¢3 622
1
#17
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#18
90208-GHR-630
NUT, FLANGE (6MM)
$0.74¢368
1
#18
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
#19
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#20
90651-MA5-671
CIRCLIP
$2.85¢1 426
1
