THERMOSTAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

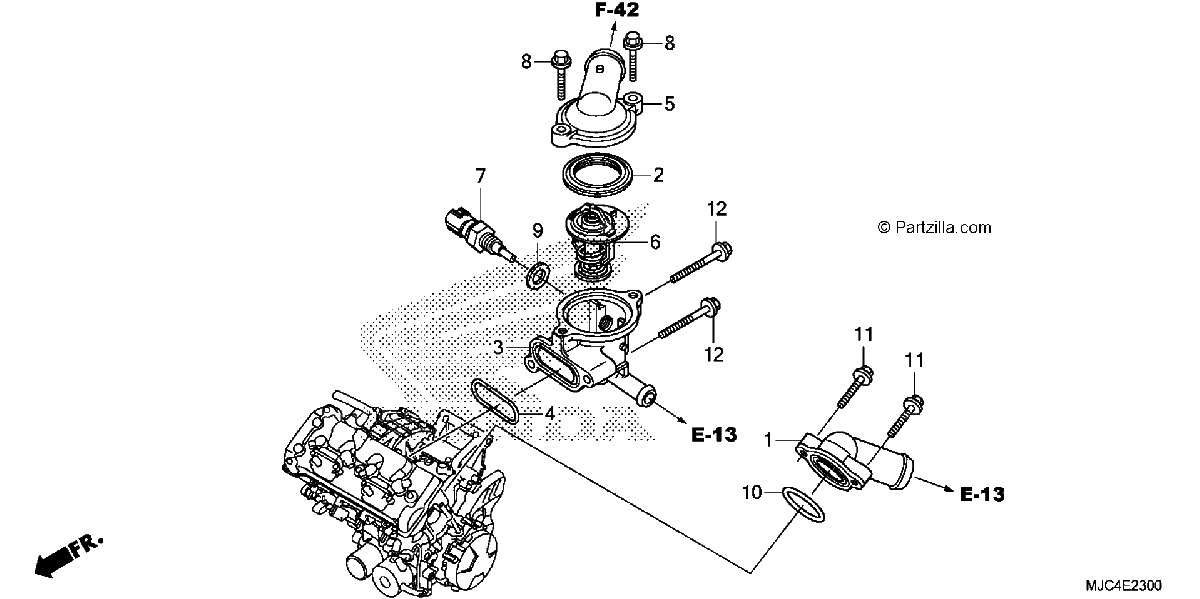

Diagrama de THERMOSTAT

Repuestos

#1
19063-MFJ-D00
JOINT, WATER
$37.40¢18 700
1
#001
19063-MFJ-D00
JOINT, WATER
$37.40¢18 700
1
#002
19305-KV3-010
RUBBER, THERMOSTAT
$7.35¢3 675
1
#2
19305-KV3-010
RUBBER, THERMOSTAT
$7.35¢3 675
1
#003
19310-MFJ-305
CASE, THERMOSTAT
$50.20¢25 100
1
#3
19310-MFJ-305
CASE, THERMOSTAT
$50.20¢25 100
1
#4
19312-MBW-000
GASKET, THERMOSTAT CASE
$4.53¢2 263
1
#004
19312-MBW-000
GASKET, THERMOSTAT CASE
$4.53¢2 263
1
#5
19315-MFJ-D00
COVER, THERMOSTAT
$81.89¢40 944
1
#005
19315-MFJ-D00
COVER, THERMOSTAT
$81.89¢40 944
1
#006
19320-MFJ-D01
THERMOSTAT
$40.03¢20 013
1
#6
19320-MFJ-D01
THERMOSTAT
$40.03¢20 013
1
#7
37870-KRJ-901
SENSOR ASSY., WATER TEMPERATURE
$35.96¢17 981
1
#007
37870-KRJ-901
SENSOR ASSY., WATER TEMPERATURE
$35.96¢17 981
1
#008
90018-ZE1-000
BOLT, FLANGE (6X23) (CT200)
$2.15¢1 075
1
#8
90018-ZE1-000
BOLT, FLANGE (6X23) (CT200)
$2.15¢1 075
1
#9
90454-MC7-000
WASHER, SPECIAL (12MM)
$3.36¢1 681
1
#009
90454-MC7-000
WASHER, SPECIAL (12MM)
$3.36¢1 681
1
#010
91356-425-003
O-RING (30MM)
$3.65¢1 825
1
#10
91356-425-003
O-RING (30MM)
$3.65¢1 825
1
#010
91356-425-005
O-RING (29.7X2.4) (NOK)
$3.65¢1 825
1
#10
91356-425-005
O-RING (29.7X2.4) (NOK)
$3.65¢1 825
1
#11
95701-06025-00
BOLT, FLANGE (6X25)
$2.31¢1 156
1
#011
95701-06025-00
BOLT, FLANGE (6X25)
$2.31¢1 156
1
#012
95701-06035-00
BOLT, FLANGE (6X35)
$2.41¢1 206
1
#12
95701-06035-00
BOLT, FLANGE (6X35)
$2.41¢1 206
1
