CARBURETOR

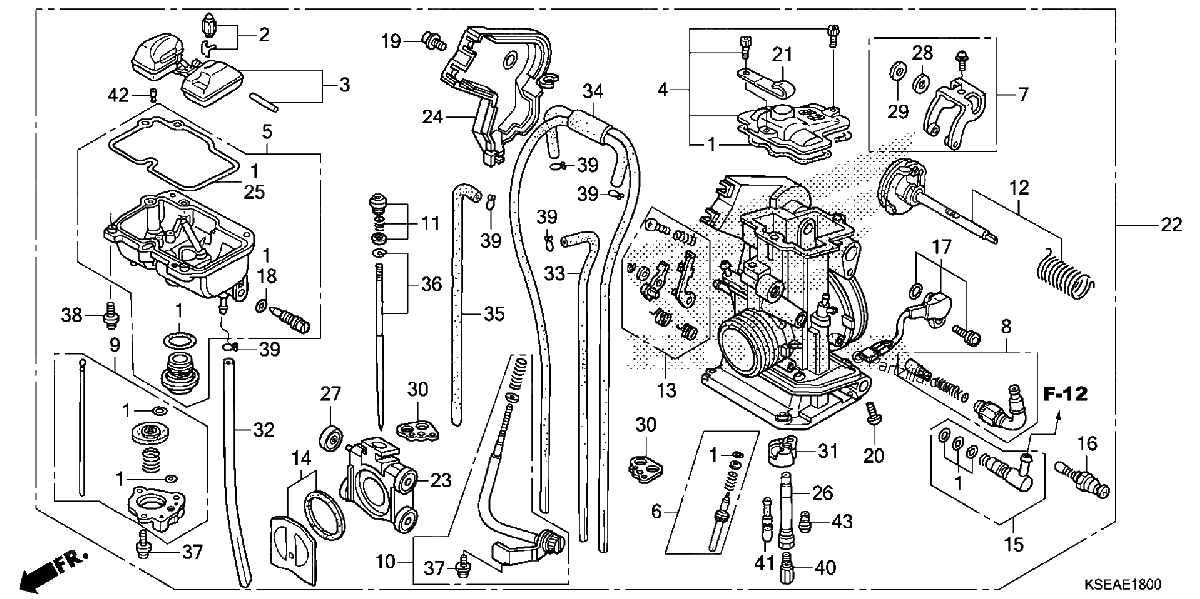

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
GASKET SET
$30.50¢15 250
#2
VALVE SET, FLOAT
$21.45¢10 725
#3
FLOAT SET
$35.41¢17 706
#4
TOP SET
$54.01¢27 006
#5
CHAMBER SET, FLOAT
$108.79¢54 394
#6
SCREW SET A
$34.25¢17 125
#7
ARM SET, LINK
$21.92¢10 962
#8
START SET, HOT
$34.01¢17 006
#9
PUMP SET, DIAPHRAGM
$75.00¢37 500
#10
SCREW SET B
$54.18¢27 088
#11
SCREW SET, JET NEEDLE
$14.86¢7 431
#12
SHAFT SET, THROTTLE
$113.07¢56 537
#13
LEVER SET, PUMP
$36.67¢18 338
#14
VALVE SET, FLOATING
$179.86¢89 931
#15
JOINT SET, FUEL
$9.61¢4 806
#16
VALVE SET, STARTER
$34.05¢17 025
#17
SENSOR ASSY., THROTTLE
$154.43¢77 213
#18
O-RING (1.3X4.3)
$3.20¢1 600
#19
BOLT, COVER
$4.94¢2 469
#20
SCREW, PAN
$1.95¢975
#21
CLIP
$9.68¢4 838
#22
CARBURETOR ASSY. (FCR08D A)
$1496.64¢748 319
#23
VALVE, THROTTLE
$316.79¢158 394
#24
COVER, THROTTLE
$29.50¢14 750
#25
GASKET, FLOAT CHAMBER
$15.26¢7 631
#26
HOLDER, NEEDLE JET
$15.35¢7 675
#27
ROLLER
$9.94¢4 969
#28
WASHER, PLAIN (PO)
$2.03¢1 013
#29
WASHER, PLAIN (SUS)
$1.80¢900
#30
BINDER
$6.38¢3 188
#31
PLATE, BUFFER
$13.08¢6 538
#32
TUBE, OVERFLOW
$15.64¢7 819
#33
TUBE, AIR VENT
$7.69¢3 844
#34
TUBE, AIR VENT
$15.88¢7 938
#35
TUBE, AIR VENT
$7.69¢3 844
#36
NEEDLE SET, JET (NMQT)
$40.29¢20 144
#37
SCREW-WASHER (4X8)
$1.47¢737
#37
SCREW-WASHER (4X8)
$1.47¢737
#38
SCREW-WASHER (4X14)
$1.35¢675
#38
SCREW-WASHER (4X14)
$1.35¢675
#39
CLIP, TUBE (B7)
$1.54¢769
#40
JET, MAIN (#140)
$10.00¢5 000
#41
JET, SLOW (#38)
$15.31¢7 656
#41
JET, SLOW (#38)
$15.31¢7 656
#41
JET, SLOW (#38)
$15.31¢7 656
#42
JET, LEAK (#70)
$16.57¢8 288
#42
JET, LEAK (#75)
$16.50¢8 250
#42
JET, LEAK (#65)
$10.39¢5 194
#42
JET, LEAK (#60)
$10.74¢5 369
#42
JET, LEAK (#55)
$11.15¢5 575
#43
JET, BY-STARTER (#68)
$14.04¢7 019
