REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

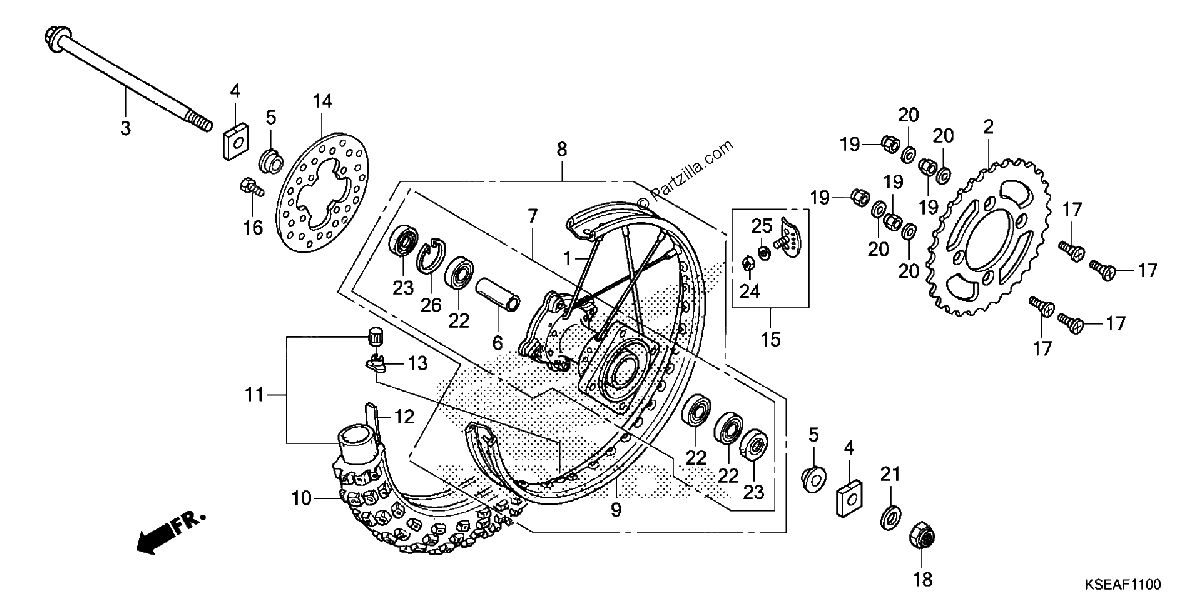

Diagrama de REAR WHEEL

Repuestos

#1
06420-KSE-670
SPOKE SET, RR.
$3.94¢1 969
1
#2
41201-GBF-830
SPROCKET, FINAL (49T) (SUNSTAR)
$142.40¢71 200
1
#2
41201-GBF-K00
SPROCKET, FINAL (50T) (SUNSTAR)
$142.40¢71 200
1
#2
41201-KSE-670
SPROCKET, FINAL DRIVEN (50T)
$69.67¢34 838
1
#2
41203-GBF-830
SPROCKET, FINAL (51T) (SUNSTAR)
$146.64¢73 319
1
#3
42301-KSE-000
AXLE, RR. WHEEL
$32.00¢16 000
1
#4
42305-KSE-000
COLLAR, RR. AXLE
$20.81¢10 406
1
#5
42311-KSE-000
COLLAR, RR. WHEEL SIDE
$18.46¢9 231
1
#6
42620-KSE-000
COLLAR, RR. WHEEL DISTANCE
$11.11¢5 556
1
#7
42635-KSE-670
HUB SUB-ASSY., RR.
$275.71¢137 856
1
#8
42650-KSE-670
WHEEL SUB-ASSY., RR.
$645.09¢322 544
1
#9
42701-KSE-671
RIM, RR. WHEEL
$255.88¢127 938
1
#10
42711-KSE-F11
TIRE, RR. (90/100-14 49M) (DUNLOP)
$120.38¢60 188
1
#11
42712-GS2-701
TUBE, TIRE (90/100-14) (DUNLOP)
$38.34¢19 169
1
#12
42713-GS2-701
FLAP, TIRE (1.60X14) (DUNLOP)
$10.26¢5 131
1
#13
42714-KA3-710
CAP, VALVE
$12.15¢6 075
1
#14
43351-KSE-000
DISK, RR. BRAKE
$207.85¢103 925
1
#15
44715-MA0-770
STOPPER, BEAD (1.60)
$42.71¢21 356
1
#16
90105-KAE-870
BOLT, DISK (6X17)
$3.65¢1 825
1
#17
90125-KA4-000
SCREW, FLAT (8X31)
$3.74¢1 869
1
#18
90305-GW2-711
NUT, U (16MM)
$19.01¢9 506
1
#19
90309-ML3-791
NUT, U (8MM) (FUSE RASHI)
$5.29¢2 644
1
#20
90465-MC4-000
WASHER (8MM)
$3.24¢1 619
1
#21
90501-GBM-750
WASHER (16MM)
$1.31¢656
1
#22
91051-KSE-003
BEARING, RADIAL BALL (6003)
$13.99¢6 994
1
#23
91205-VM6-003
DUST SEAL (23X35X7)
$11.21¢5 606
1
#24
94001-08000-0S
NUT, HEX. (8MM)
$1.68¢838
1
#25
94111-08000
WASHER, SPRING (8MM)
$1.21¢606
1
#26
94520-35000
CIRCLIP, INNER (35MM)
$2.50¢1 250
1
