AIR CLEANER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

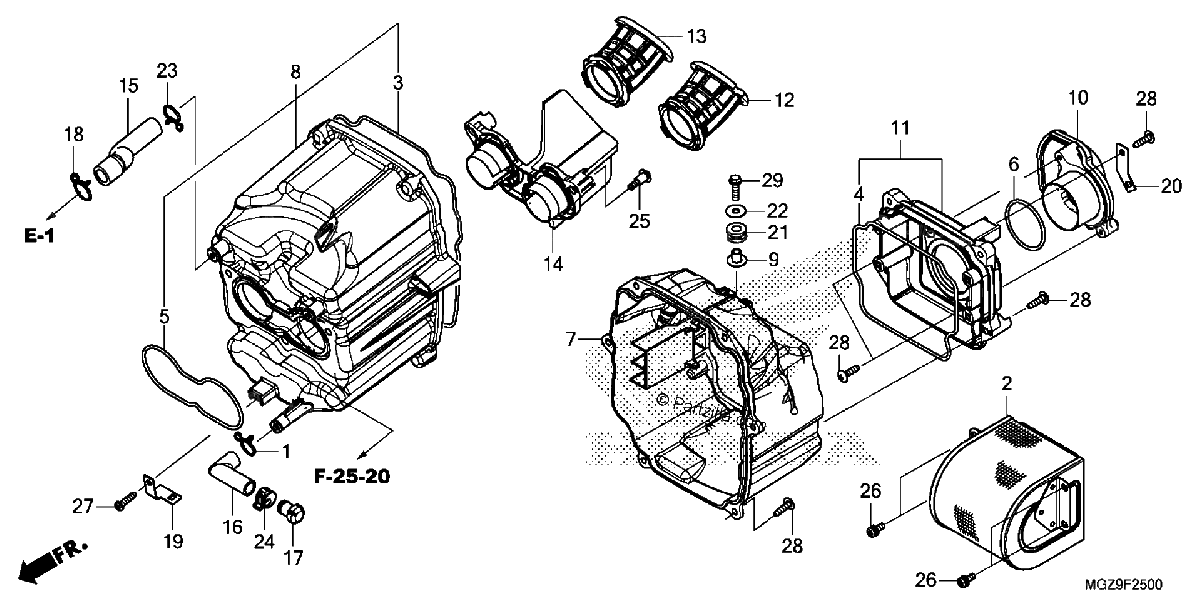

Diagrama de AIR CLEANER

Repuestos

#1
15771-KV6-000
CLIP, OIL DRAIN TUBE
$4.16¢2 081
1
#2
17211-MGZ-D00
ELEMENT, AIR CLEANER
$16.77¢8 384
1
#3
17213-MGZ-D00
SEAL, AIR CLEANER
$3.58¢1 788
1
#4
17214-MGZ-D00
SEAL, AIR CLEANER LID
$2.13¢1 064
1
#5
17215-MGZ-D00
SEAL, THROTTLE BODY
$2.12¢1 058
1
#6
17216-MGZ-D00
SEAL, AIR CLEANER DUCT
$2.09¢1 047
1
#7
17220-MGZ-D00
COVER, AIR CLEANER
$19.02¢9 510
1
#8
17225-MGZ-D00
CASE SUB-ASSY., AIR CLEANER
$37.16¢18 578
1
#9
17232-KYJ-900
COLLAR, AIR CLEANER MOUNTING
$1.03¢518
1
#10
17240-MGZ-A00
DUCT, AIR CLEANER
$3.69¢1 846
1
#11
17245-MGZ-D00
LID SUB-ASSY., AIR CLEANER
$11.86¢5 928
1
#12
17251-MGZ-A00
FUNNEL, L. AIR
$13.32¢6 658
1
#13
17252-MGZ-A00
FUNNEL, R. AIR
$13.32¢6 658
1
#14
17253-MGZ-D00
FUNNEL, AIR
$10.09¢5 043
1
#15
17265-MGZ-D00
TUBE, BREATHER
$6.28¢3 140
1
#16
17366-428-670
TUBE A, DRAIN
$9.94¢4 968
1
#17
17370-382-870
PLUG, BREATHER TUBE
$4.17¢2 087
1
#18
17724-102-700
CLIP, SUB-TANK HOSE
$4.89¢2 444
1
#19
32150-MGZ-J00
STAY, ENGINE SUB-HARNESS
$2.18¢1 092
1
#20
32207-MGZ-J00
STAY, HARNESS
$1.00¢500
1
#21
83545-KCJ-690
RUBBER, SIDE COVER
$1.66¢828
1
#22
90538-KSH-900
WASHER, SPECIAL (6MM)
$0.62¢311
1
#23
90646-657-000
CLIP, AIR HOSE (16MM)
$8.18¢4 088
1
#24
91406-MS8-000
CLAMP, TUBE (D14.5)
$4.34¢2 168
1
#25
91508-MM5-000
SCREW, PAN (5MM)
$4.55¢2 277
1
#26
93893-05014-08
SCREW-WASHER (5X14)
$1.59¢793
1
#27
93901-25320
SCREW, TAPPING (5X16)
$0.60¢299
1
#28
93903-25480
SCREW, TAPPING (5X20)
$0.79¢397
1
#29
96001-06020-04
BOLT, FLANGE (6X20)
$1.12¢558
1
