FRONT BRAKE MASTER CYLINDER STD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

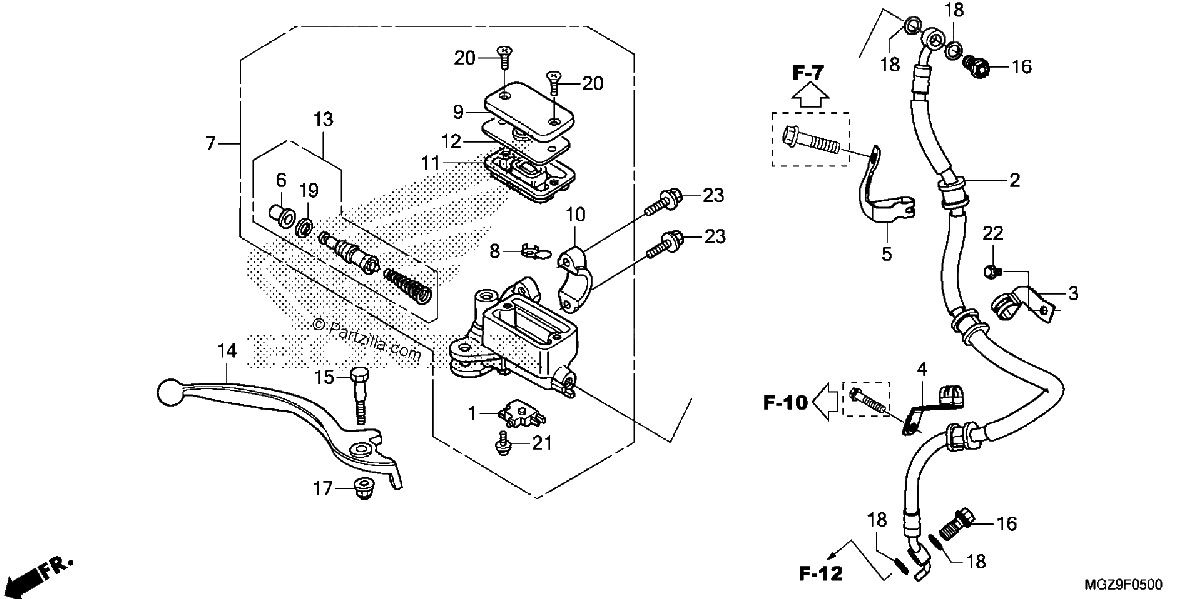

Diagrama de FRONT BRAKE MASTER CYLINDER STD

Repuestos

#1
35340-MGS-D31
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
1
#2
45125-MGZ-J81
HOSE, FR. BRAKE
$39.00¢19 500
1
#3
45155-MGZ-J00
CLAMP A, Front BRAKE HOSE
$2.92¢1 463
1
#4
45156-MGZ-J00
CLAMP B, Front BRAKE HOSE
$3.75¢1 875
1
#5
45157-MGZ-J40
CLAMP C, Front BRAKE HOSE
$4.61¢2 306
1
#6
45504-410-003
BOOT
$14.24¢7 119
1
#7
45510-MGZ-305
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)
$156.44¢78 219
1
#8
45512-MA6-006
PROTECTOR
$5.20¢2 600
1
#9
45513-HR0-305
CAP, MASTER CYLINDER (COO)
$5.04¢2 519
1
#9
45513-KK1-771
CAP, MASTER CYLINDER
$5.04¢2 519
1
#10
45517-166-006
HOLDER, MASTER CYLINDER
$15.74¢7 869
1
#11
45520-MG7-006
DIAPHRAGM
$12.31¢6 156
1
#12
45521-HA2-006
PLATE, DIAPHRAGM
$12.60¢6 300
1
#13
45530-471-831
MASTER CYLINDER SET
$46.40¢23 200
1
#14
53175-KYJ-305
LEVER, R. HANDLEBAR (COO)
$19.06¢9 531
1
#15
90114-166-006
BOLT, HANDLE LEVER PIVOT
$7.88¢3 938
1
#16
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#17
90202-KCW-870
NUT, CAP (6MM)
$3.65¢1 825
1
#18
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#19
90651-MA5-671
CIRCLIP
$3.10¢1 550
1
#20
93600-04012-0G
SCREW, FLAT (4X12)
$1.16¢581
1
#20
93600-04012-1G
SCREW, FLAT (4X12)
$1.16¢581
1
#21
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#21
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
#22
96001-06010-07
BOLT, FLANGE (6X10)
$2.09¢1 044
1
#23
96001-06022-07
BOLT, FLANGE (6X22)
$2.38¢1 188
1
