TAILLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

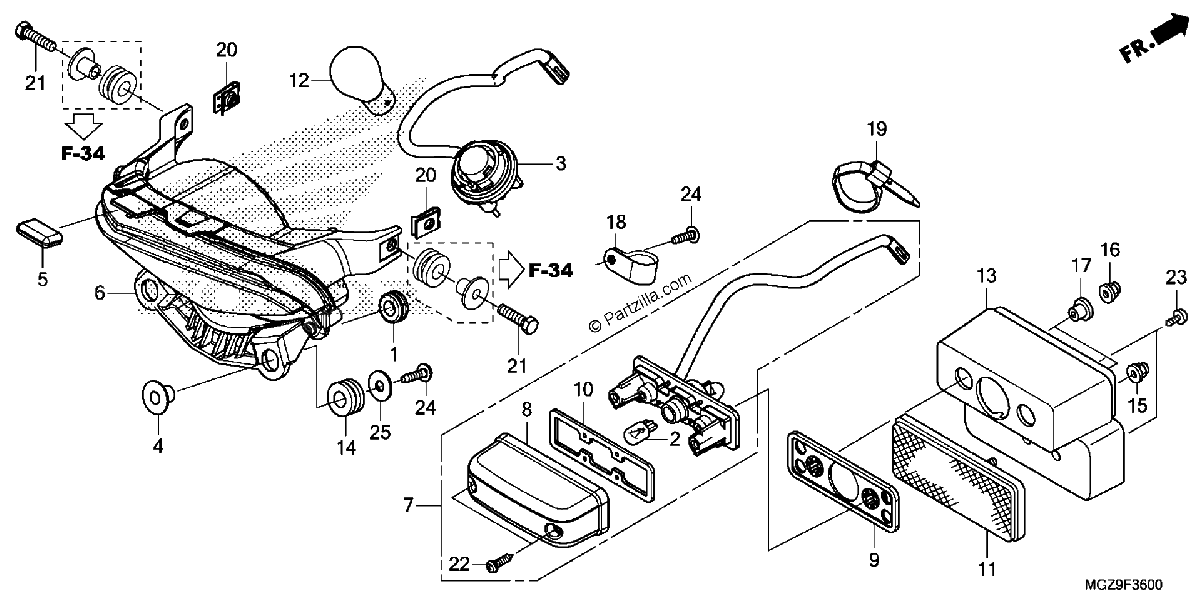

Diagrama de TAILLIGHT

Repuestos

#1
11344-MB0-000
GROMMET A, RR. COVER (8X16X6.6)
$3.65¢1 825
1
#2
33301-SA0-741
BULB (12V 5W) (STANLEY)
$4.61¢2 306
1
#3
33703-MGZ-J01
SOCKET, TAILLIGHT
$21.48¢10 738
1
#4
33705-MGZ-J00
COLLAR, TAILLIGHT
$1.95¢975
1
#5
33706-MFN-D00
SUSPENSION, TAILLIGHT
$1.15¢575
1
#6
33710-MGZ-305
TAILLIGHT UNIT (COO)
$74.35¢37 175
1
#7
33720-MGZ-305
LIGHT ASSY., LICENSE (12V 5W) (COO)
$66.92¢33 463
1
#8
33722-K26-305
COVER, LICENSE (COO)
$13.20¢6 600
1
#8
33722-KWN-901
COVER, LICENSE
$13.20¢6 600
1
#9
33728-KPP-T00
RUBBER, LICENSE LIGHT
$5.51¢2 756
1
#10
33729-MCZ-003
GASKET, LENS
$12.19¢6 094
1
#11
33741-KPL-902
REFLECTOR, REFLEX
$8.94¢4 469
1
#12
34906-KSS-C01
BULB, TAILLIGHT (12V 21/5W) (KOITO)
$12.56¢6 281
1
#13
80201-KYJ-920
BRACKET, LICENSE LIGHT
$9.95¢4 975
1
#14
83545-KCJ-690
RUBBER, SIDE COVER
$1.80¢900
1
#15
90301-KWN-901
NUT, U (5MM)
$0.86¢431
1
#16
90302-KVB-T01
NUT, U (5MM)
$2.31¢1 156
1
#17
90505-MGZ-A00
COLLAR
$2.24¢1 119
1
#18
90628-750-000
CLIP (14MM)
$2.84¢1 419
1
#19
90652-KT1-771
BAND, WIRE (BLACK)
$5.42¢2 713
1
#20
90677-KAN-T00
NUT, CLIP (5MM)
$0.83¢413
1
#21
92101-05020-0A
BOLT, HEX. (5X20)
$1.50¢750
1
#22
93901-24480
SCREW, TAPPING (4X16)
$1.06¢531
1
#23
93903-24380
SCREW, TAPPING (4X12)
$1.16¢581
1
#24
93903-24420
SCREW, TAPPING (4X16)
$1.16¢581
1
#25
94103-05000
WASHER, PLAIN (5MM)
$0.76¢381
1
