WATER PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

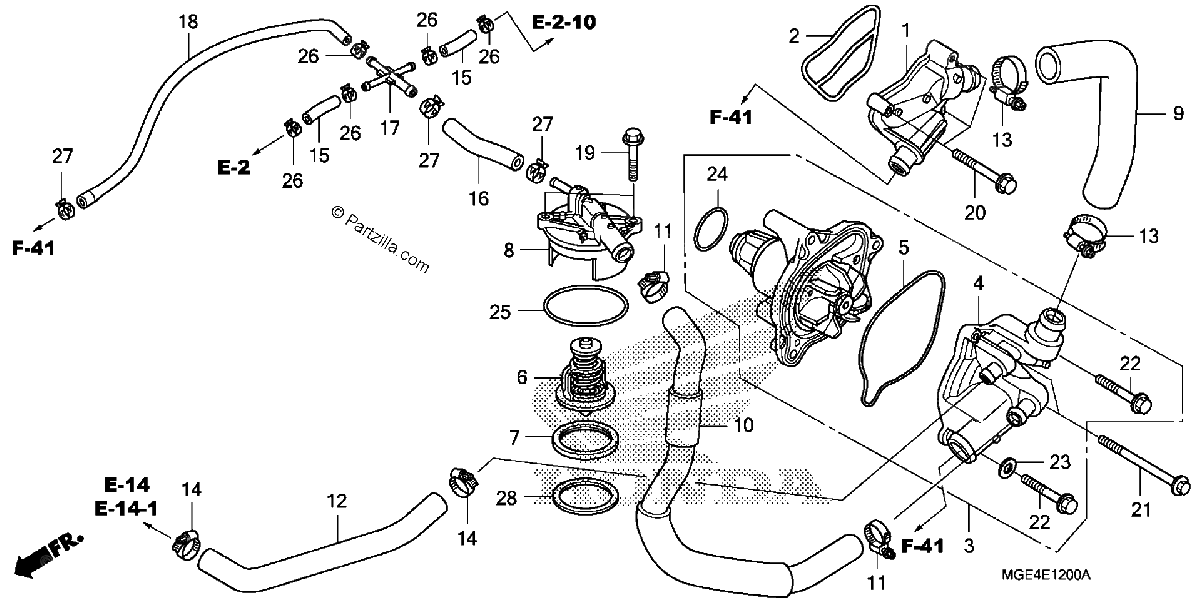

Diagrama de WATER PUMP

Repuestos

#1
19063-MGE-000
JOINT, WATER
$74.88¢37 438
1
#2
19064-MGE-000
GASKET, WATER JOINT
$9.43¢4 715
1
#3
19200-MGE-000
WATER PUMP ASSY.
$348.09¢174 047
1
#4
19220-MGE-000
COVER, WATER PUMP
$132.49¢66 246
1
#5
19226-MGE-000
GASKET, WATER PUMP COVER
$10.48¢5 238
1
#6
19300-MAT-761
THERMOSTAT
$58.28¢29 141
1
#7
19305-MCA-A00
RUBBER, THERMOSTAT
$9.45¢4 727
1
#8
19315-MGE-000
COVER, THERMOSTAT
$84.19¢42 096
1
#9
19501-MGE-000
HOSE A, WATER
$26.81¢13 403
1
#10
19503-MGE-000
HOSE, WATER (LOWER)
$59.63¢29 814
1
#11
19504-KY1-003
CLAMP, WATER HOSE (25MM)
$11.07¢5 537
1
#12
19504-MGE-000
HOSE A, OIL COOLER WATER
$14.18¢7 090
1
#13
19504-ZG8-000
BAND, WATER HOSE
$7.13¢3 565
1
#14
19505-KS6-700
CLAMP A, WATER HOSE
$13.74¢6 871
1
#15
19515-MGE-000
TUBE A, WATER BREATHER
$3.92¢1 961
1
#16
19516-MGE-000
TUBE, B WATER BREATHER
$5.13¢2 565
1
#17
19518-MGE-000
JOINT, WATER HOSE FOUR-WAY
$6.46¢3 231
1
#18
19519-MGE-000
TUBE, WATER
$29.60¢14 800
1
#19
90016-GHB-660
BOLT, FLANGE (6X22)
$2.59¢1 294
1
#20
90016-GHB-690
BOLT, FLANGE (6X32)
$2.59¢1 294
1
#21
90016-GHB-760
BOLT, FLANGE (6X65)
$2.96¢1 478
1
#22
90021-MGE-000
BOLT, FLANGE (6X25) (CT200)
$2.28¢1 138
1
#23
90463-ML7-000
WASHER, SEALING (6.5MM)
$3.36¢1 679
1
#24
91302-MB0-013
O-RING (32.95X2.62) (ARAI)
$3.36¢1 679
1
#25
91315-MGE-000
O-RING (63.5X1.9)
$4.01¢2 007
1
#26
95002-41050-08
CLAMP, TUBE (D10.5)
$2.77¢1 386
1
#27
95002-41200-08
CLAMP, TUBE (D12)
$2.77¢1 386
1
#28
19306-MGE-000
WASHER (48X57.4X1.6)
$6.24¢3 122
1
