GEARSHIFT DRUM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

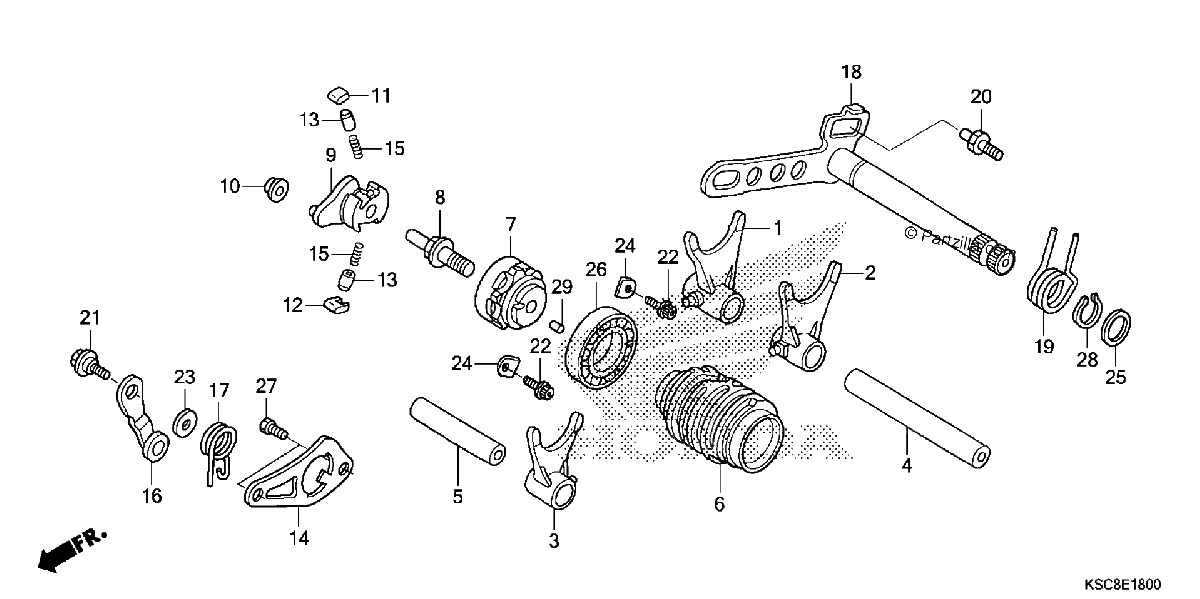

Diagrama de GEARSHIFT DRUM

Repuestos

#001
24211-KSC-670
FORK, R. GEARSHIFT
$69.53¢34 765
1
#1
24211-KSC-670
FORK, R. GEARSHIFT
$69.53¢34 765
1
#002
24221-KSC-670
FORK, L. GEARSHIFT
$69.53¢34 765
1
#2
24221-KSC-670
FORK, L. GEARSHIFT
$69.53¢34 765
1
#3
24231-KSC-670
FORK, CENTER GEARSHIFT
$69.53¢34 765
1
#003
24231-KSC-670
FORK, CENTER GEARSHIFT
$69.53¢34 765
1
#4
24241-KSC-670
SHAFT A, SHIFT FORK
$34.41¢17 204
1
#004
24241-KSC-670
SHAFT A, SHIFT FORK
$34.41¢17 204
1
#5
24242-KSC-670
SHAFT B, SHIFT FORK
$31.18¢15 588
1
#005
24242-KSC-670
SHAFT B, SHIFT FORK
$31.18¢15 588
1
#6
24311-KRN-A00
DRUM, GEARSHIFT
$91.11¢45 557
1
#006
24311-KRN-A00
DRUM, GEARSHIFT
$91.11¢45 557
1
#007
24312-KA3-741
CENTER, GEARSHIFT DRUM
$69.17¢34 586
1
#7
24312-KA3-741
CENTER, GEARSHIFT DRUM
$69.17¢34 586
1
#8
24315-HA0-000
PIN, SHIFTER
$13.45¢6 727
1
#008
24315-HA0-000
PIN, SHIFTER
$13.45¢6 727
1
#009
24321-KZ4-620
SHIFTER, DRUM
$69.08¢34 540
1
#9
24321-KZ4-620
SHIFTER, DRUM
$69.08¢34 540
1
#10
24322-MM4-000
COLLAR, SHIFTER
$5.70¢2 852
1
#010
24322-MM4-000
COLLAR, SHIFTER
$5.70¢2 852
1
#11
24324-KA3-711
PAWL A, RATCHET
$14.24¢7 119
1
#011
24324-KA3-711
PAWL A, RATCHET
$14.24¢7 119
1
#012
24325-KA3-711
PAWL B, RATCHET
$14.24¢7 119
1
#12
24325-KA3-711
PAWL B, RATCHET
$14.24¢7 119
1
#13
24326-KBH-901
PLUNGER, PAWL
$6.49¢3 243
1
#013
24326-KBH-901
PLUNGER, PAWL
$6.49¢3 243
1
#014
24328-KRN-670
PLATE, GUIDE
$15.66¢7 831
1
#14
24328-KRN-670
PLATE, GUIDE
$15.66¢7 831
1
#15
24329-KA3-740
SPRING, PAWL PLUNGER
$3.36¢1 679
1
#015
24329-KA3-740
SPRING, PAWL PLUNGER
$3.36¢1 679
1
#016
24430-KA3-740
STOPPER, DRUM
$23.37¢11 684
1
#16
24430-KA3-740
STOPPER, DRUM
$23.37¢11 684
1
#017
24435-KZ4-690
SPRING, DRUM STOPPER
$5.81¢2 904
1
#17
24435-KZ4-690
SPRING, DRUM STOPPER
$5.81¢2 904
1
#018
24610-KRN-730
SPINDLE, GEARSHIFT
$76.72¢38 358
1
#18
24610-KRN-730
SPINDLE, GEARSHIFT
$76.72¢38 358
1
#019
24651-MEB-670
SPRING, GEARSHIFT RETURN
No Disponible
1
#19
24651-MEB-670
SPRING, GEARSHIFT RETURN
No Disponible
1
#019
24651-MEB-671
SPRING, GEARSHIFT RETURN
$4.89¢2 444
1
#20
24652-HA0-000
PIN, GEARSHIFT RETURN SPRING
$9.15¢4 577
1
#020
24652-HA0-000
PIN, GEARSHIFT RETURN SPRING
$9.15¢4 577
1
#21
90022-MG8-000
PIVOT, SHIFT DRUM STOPPER ARM
$2.94¢1 472
1
#021
90022-MG8-000
PIVOT, SHIFT DRUM STOPPER ARM
$2.94¢1 472
1
#22
90071-MF5-000
BOLT, FLANGE SOCKET (6X14)
$3.74¢1 869
1
#022
90071-MF5-000
BOLT, FLANGE SOCKET (6X14)
$3.74¢1 869
1
#23
90435-HB3-000
WASHER (6.1MM)
$3.36¢1 679
1
#023
90435-HB3-000
WASHER (6.1MM)
$3.36¢1 679
1
#24
90441-KRM-840
PLATE, BEARING HOLDER
$0.71¢357
1
#024
90441-KRM-840
PLATE, BEARING HOLDER
$0.71¢357
1
#025
90451-155-000
WASHER (14MM)
$4.22¢2 110
1
#25
90451-155-000
WASHER (14MM)
$4.22¢2 110
1
#026
91004-KY4-900
BEARING, RADIAL BALL (6905U)
$24.44¢12 219
1
#26
91004-KY4-900
BEARING, RADIAL BALL (6905U)
$24.44¢12 219
1
#027
93301-06016-0A
BOLT, HEX. (6X16)
$1.74¢868
1
#27
93301-06016-0A
BOLT, HEX. (6X16)
$1.74¢868
1
#028
94510-14000
CIRCLIP, OUTER (14MM)
$1.21¢604
1
#28
94510-14000
CIRCLIP, OUTER (14MM)
$1.21¢604
1
#29
96220-40080
ROLLER (4X8)
$0.60¢299
1
#029
96220-40080
ROLLER (4X8)
$0.60¢299
1
