CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

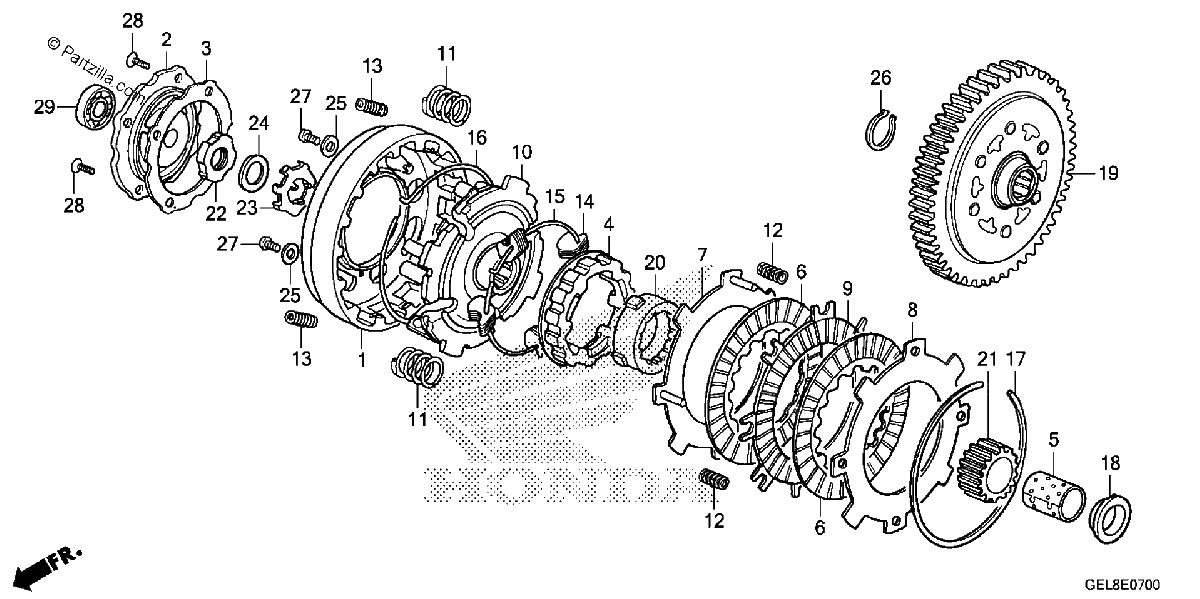

Diagrama de CLUTCH

Repuestos

#1
22101-178-000
CLUTCH OUTER
$63.43¢31 717
1
#2
22111-178-010
COVER, CLUTCH (OUTER)
$13.01¢6 503
1
#3
22119-GW8-681
GASKET, CLUTCH COVER (OUTER)
$3.36¢1 679
1
#4
22120-GCF-670
CENTER, CLUTCH
$63.91¢31 953
1
#5
22131-035-030
GUIDE, CLUTCH CENTER
$25.62¢12 811
1
#6
22201-GW8-681
DISK A, CLUTCH FRICTION
$10.82¢5 411
1
#7
22310-GB0-910
PLATE A, CLUTCH
$15.69¢7 843
1
#8
22321-041-000
PLATE B, CLUTCH
$10.58¢5 290
1
#8
22321-046-020
PLATE B, CLUTCH
$10.58¢5 290
1
#9
22331-GW8-681
DISK B, CLUTCH FRICTION
$10.82¢5 411
1
#10
22351-GB2-710
PLATE, DRIVE
$73.09¢36 547
1
#11
22401-GW8-670
SPRING, CLUTCH
$4.98¢2 490
1
#12
22411-092-010
SPRING, CLUTCH FREE
$2.66¢1 328
1
#13
22421-040-000
SPRING, CLUTCH DAMPER
$2.42¢1 208
1
#14
22531-178-000
WEIGHT, CLUTCH
$1.30¢650
1
#15
22535-033-000
RING, CLUTCH WEIGHT CENTER
$6.58¢3 289
1
#16
22536-033-000
RING, CLUTCH WEIGHT STOPPER
$6.58¢3 289
1
#17
22901-001-000
SET-RING (102MM)
$4.75¢2 375
1
#18
22911-GEL-A80
COLLAR (17MM)
$5.16¢2 582
1
#19
23110-GEL-A80
GEAR, PRIMARY DRIVEN (69T)
$154.48¢77 240
1
#20
23112-GB0-910
OUTER, DRIVE GEAR
$34.14¢17 072
1
#21
23121-GEL-A80
GEAR, PRIMARY DRIVE (17T)
$55.75¢27 876
1
#22
90231-KVR-C00
NUT, LOCK (14MM)
$3.36¢1 679
1
#23
90431-GEL-A80
WASHER, LOCK (14MM)
$2.98¢1 489
1
#24
90432-KVR-C00
WASHER B, LOCK
$6.24¢3 122
1
#25
90483-041-000
WASHER, STOPPER
$2.28¢1 138
1
#26
90601-KYY-900
CIRCLIP (17MM)
$3.36¢1 679
1
#27
93500-05010-0A
SCREW, PAN (5X10)
$1.07¢535
1
#28
93600-05010-0A
SCREW, FLAT (5X10)
$0.92¢460
1
#29
96100-60000-00
BEARING, RADIAL BALL (6000)
$9.06¢4 531
1
