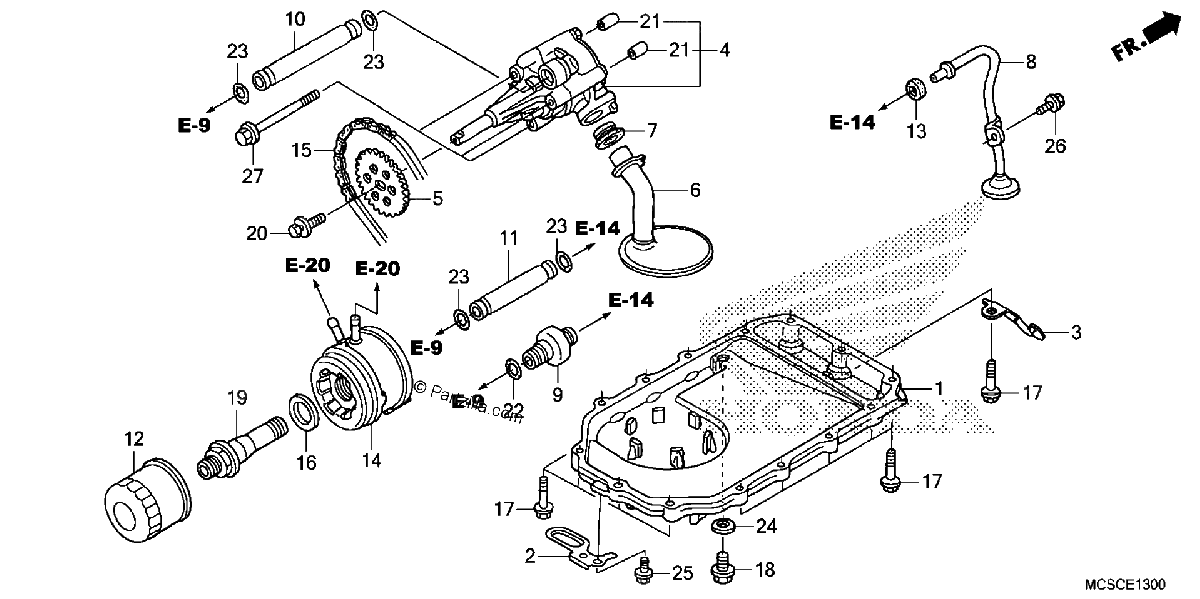

OIL PUMP OIL PAN
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
PAN, OIL
$312.99¢156 494
#2
CLAMP A, DRAIN HOSE
$5.16¢2 581
#3
CLAMP, TUBE
$5.22¢2 613
#4
PUMP ASSY., OIL
$257.01¢128 506
#5
SPROCKET, OIL PUMP DRIVEN (30T)
$54.84¢27 419
#6
STRAINER, OIL
$47.76¢23 881
#7
GASKET, OIL STRAINER
$8.01¢4 006
#8
PIPE, OIL SCAVENGING
$69.23¢34 613
#9
VALVE ASSY., RELIEF
$52.50¢26 250
#10
PIPE A, OIL PASSAGE
$18.24¢9 119
#11
PIPE B, OIL PASSAGE
$16.15¢8 075
#12
FILTER, OIL (TOYO ROKI)
$17.98¢8 988
#13
SEAL, RING
$3.50¢1 750
#14
COOLER, OIL
$358.18¢179 088
#15
CHAIN, WATER PUMP DRIVE (70L)
$39.35¢19 675
#16
WASHER, SPRING (24MM)
$16.76¢8 381
#17
BOLT, FLANGE (6X28) (NSHF)
$4.04¢2 019
#18
BOLT, DRAIN PLUG (14MM)
$3.75¢1 875
#19
BOLT, OIL COOLER
$40.80¢20 400
#20
BOLT-WASHER (6X12)
$6.20¢3 100
#21
PIN, DOWEL (8X14)
$4.01¢2 006
#22
O-RING (14.7X2.2) (ARAI)
$4.45¢2 225
#22
O-RING (14.8X2.2)
$4.45¢2 225
#23
OIL SEAL, PASSAGE PIPE (20.3MM)
$3.65¢1 825
#24
WASHER, DRAIN PLUG (14MM)
$0.80¢400
#25
BOLT, FLANGE (6X10)
$1.63¢813
#26
BOLT, FLANGE (6X14)
$1.23¢613
#27
BOLT, FLANGE (6X80)
$3.01¢1 506
