FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

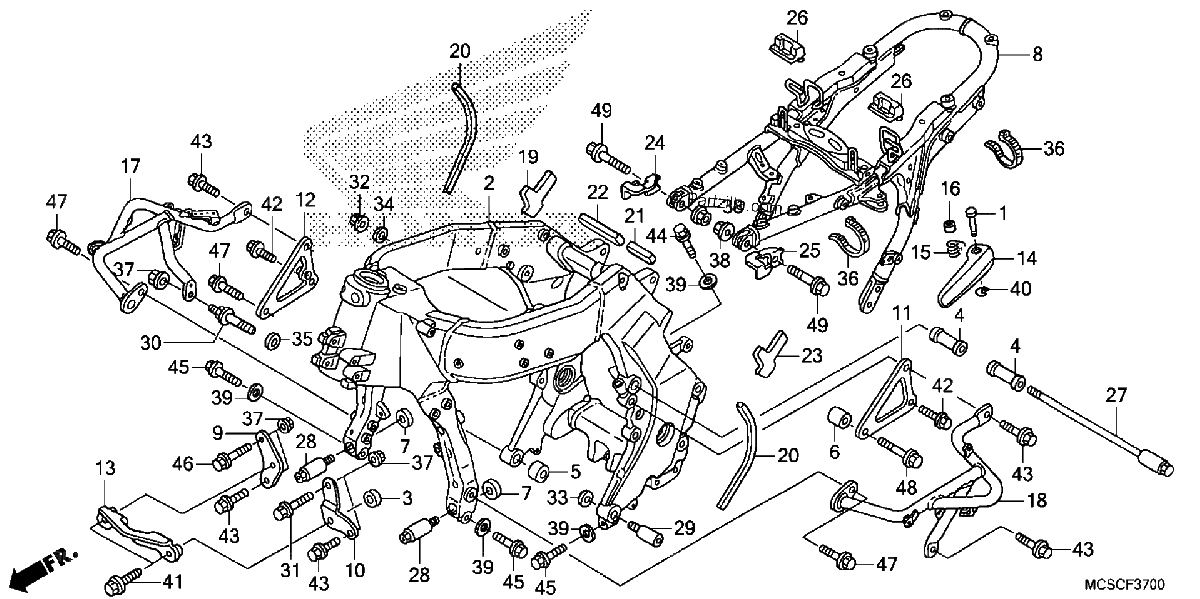

Diagrama de FRAME

Repuestos

#1
28321-427-770
PIN, KICK STARTER
$8.11¢4 054
1
#2
50100-MCS-L02ZA
FRAME *NH146M* (ACCURATE SILVER METALLIC)
$3254.68¢1 627 342
1
#3
50190-MCS-G00
COLLAR, FR. ENGINE HANGER
$5.93¢2 967
1
#4
50191-MCS-G03
COLLAR, RR. ENGINE HANGER (UPPER)
$12.78¢6 388
1
#5
50192-MCS-G02
COLLAR, RR. ENGINE HANGER (LOWER)
$4.96¢2 478
1
#6
50193-MCS-G00
COLLAR, L. RR. ENGINE HANGER CENTER
$3.63¢1 817
1
#7
50216-MCS-G02
COLLAR, FR. ENGINE HANGER (LOWER)
$5.05¢2 524
1
#8
50240-MCS-G03
RAIL, SEAT
$646.51¢323 254
1
#9
50310-MCS-G00
PLATE, R. FR. ENGINE HANGER
$11.14¢5 572
1
#10
50311-MCS-G00
PLATE, L. FR. ENGINE HANGER
$16.90¢8 452
1
#11
50312-MCS-G00
PLATE, RR. ENGINE HANGER
$22.91¢11 454
1
#12
50312-MCS-L00
PLATE, RR. ENGINE HANGER
$28.37¢14 185
1
#13
50318-MCS-G02
PLATE, CROSS HANGER
$22.65¢11 327
1
#14
50400-MT3-000ZE
GRIP, MAIN STAND *NH105* (MAT BLACK)
$58.39¢29 193
1
#15
50617-MM5-000
SPRING, R. STEP RETURN
$5.35¢2 674
1
#16
53103-GN5-900
COLLAR, HANDLE SETTING
$7.11¢3 553
1
#17
64206-MCS-L01
GUARD, R. ENGINE
$189.28¢94 639
1
#18
64216-MCS-G00
GUARD, L. ENGINE
$161.98¢80 989
1
#19
64324-MCS-G00
MAT, R. FRAME
$17.28¢8 642
1
#20
64363-MCS-G00
MAT A, HEAT GUARD
$4.81¢2 403
1
#21
64364-MCS-G00
MAT B, HEAT GUARD
$2.21¢1 104
1
#22
64365-MCS-G00
MAT C, HEAT GUARD
$3.63¢1 817
1
#23
64374-MCS-G00
MAT, L. FRAME
$17.28¢8 642
1
#24
77116-MCS-G00
PLATE, R. SEAT STOPPER
$5.73¢2 864
1
#25
77117-MCS-G00
PLATE, L. SEAT STOPPER
$5.73¢2 864
1
#26
77205-MCS-G00
RUBBER, SEAT SETTING
$7.67¢3 835
1
#27
90102-MCS-G00
BOLT, ENGINE MOUNTING (10X328)
$59.80¢29 900
1
#28
90112-MCS-G04
BOLT, FLANGE (12X36)
$35.05¢17 526
1
#29
90119-MCS-G02
BOLT, SOCKET (12X26.5)
$24.75¢12 374
1
#30
90134-MCS-G01
BOLT, FLANGE (12X67)
$15.84¢7 918
1
#31
90150-GN1-000
BOLT, FLANGE (8X47)
$6.69¢3 347
1
#32
90304-GE8-003
NUT, U (10MM) (FUSE RASHI)
$4.09¢2 047
1
#33
90401-ZG5-000
WASHER, PLAIN (12MM)
$4.39¢2 197
1
#34
90405-752-830
WASHER (10.5X27)
$9.84¢4 922
1
#34
90405-758-L00
WASHER (10.5X27X4)
$9.84¢4 922
1
#35
90440-GT4-970
WASHER, PLAIN (12MM)
$3.09¢1 547
1
#36
90679-SG9-E01
BAND, SUCTION HOSE (BLACK)
$4.21¢2 105
1
#37
94050-08000
NUT, FLANGE (8MM)
$1.06¢529
1
#38
94050-10000
NUT, FLANGE (10MM)
$1.75¢874
1
#39
94102-08000
WASHER, PLAIN (8MM)
$1.06¢529
1
#40
94540-06018
E-RING (6MM)
$3.36¢1 679
1
#41
95701-08040-00
BOLT, FLANGE (8X40)
$1.41¢707
1
#42
96300-08020-00
BOLT, FLANGE (8X20)
$1.86¢932
1
#43
96300-08025-00
BOLT, FLANGE (8X25)
$1.92¢960
1
#44
96300-08035-00
BOLT, FLANGE (8X35)
$2.32¢1 162
1
#45
95701-08040-08
BOLT, FLANGE (8X40)
$2.50¢1 248
1
#45
96300-08040-08
BOLT, FLANGE (8X40)
$2.50¢1 248
1
#46
96300-08050-00
BOLT, FLANGE (8X50)
$2.66¢1 328
1
#47
96300-10025-00
BOLT, FLANGE (10X25)
$2.83¢1 414
1
#48
96300-10050-00
BOLT, FLANGE (10X50)
$1.91¢954
1
#49
96400-10065-00
BOLT, FLANGE (10X65)
$3.43¢1 713
1
