REAR FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

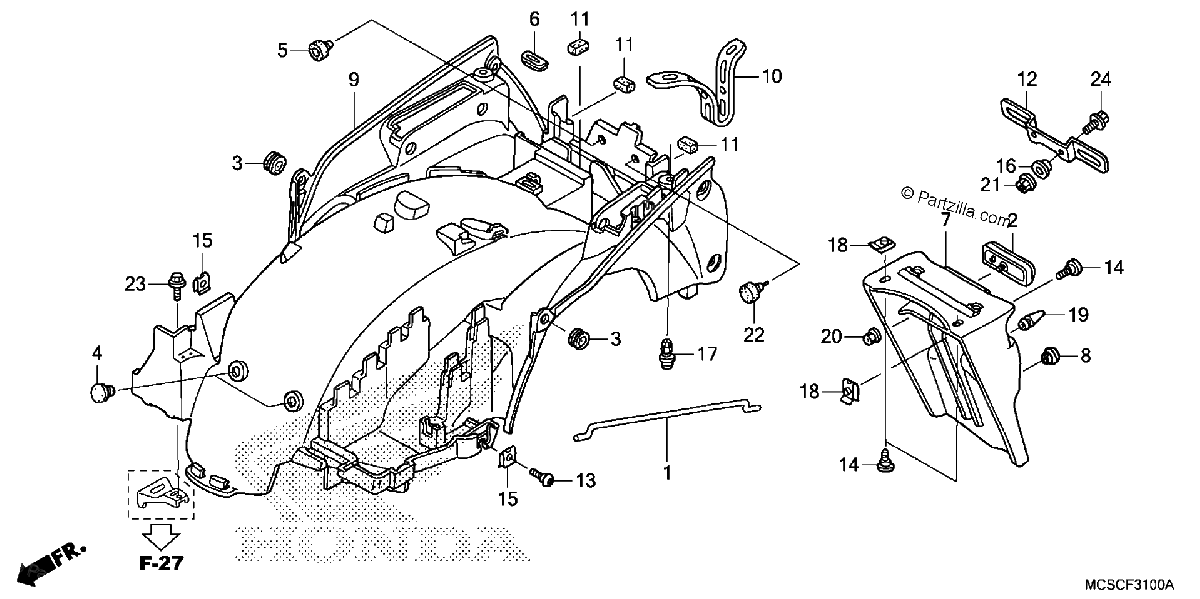

Diagrama de REAR FENDER

Repuestos

#1
17891-MCJ-750
ROD, TANK OPEN
$17.61¢8 803
1
#2
33741-MS6-921
REFLECTOR, REFLEX (STANLEY)
$16.31¢8 153
1
#3
36130-ZA8-801
GROMMET, TUBE
$2.93¢1 466
1
#4
50318-041-600
PLUG, HOLE
$2.50¢1 248
1
#5
77206-GF0-000
RUBBER, SEAT CUSHION
$6.08¢3 042
1
#6
77309-KK6-000
GROMMET, TOOL TRAY
$3.21¢1 604
1
#7
80100-MCS-770
FENDER A, RR.
$47.95¢23 978
1
#8
80103-192-600
PLUG, RR. FENDER
$4.75¢2 375
1
#9
80106-MCS-D90
FENDER B, RR.
$171.17¢85 583
1
#10
80109-MCS-D90
BAND, UNIT
$8.26¢4 129
1
#11
83605-MCS-G00
SEAL, RUBBER
$2.21¢1 104
1
#12
84700-MCS-770
BRACKET, NUMBER PLATE
$16.10¢8 050
1
#13
90106-MBL-610
SCREW, SPECIAL (6MM)
$2.64¢1 322
1
#14
90106-MBY-000
SCREW, SPECIAL (5X12)
$3.16¢1 581
1
#15
90320-747-000
NUT, SPRING (6MM)
$2.64¢1 322
1
#16
90556-KR3-000
WASHER, CHAIN SLIDER
$3.66¢1 829
1
#17
90657-SB0-003
CLIP, SPLASH SHIELD
$5.88¢2 938
1
#18
90677-KAN-961
NUT, CLIP (5MM)
$4.54¢2 271
1
#19
90899-KL8-000
PLUG, CONE
$3.86¢1 932
1
#20
94050-05000
NUT, FLANGE (5MM)
$1.54¢771
1
#21
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
#22
95011-62000
RUBBER B, STAND STOPPER
$1.59¢793
1
#23
96001-06012-00
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#24
96001-06016-00
BOLT, FLANGE (6X16)
$1.24¢621
1
