ALTERNATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

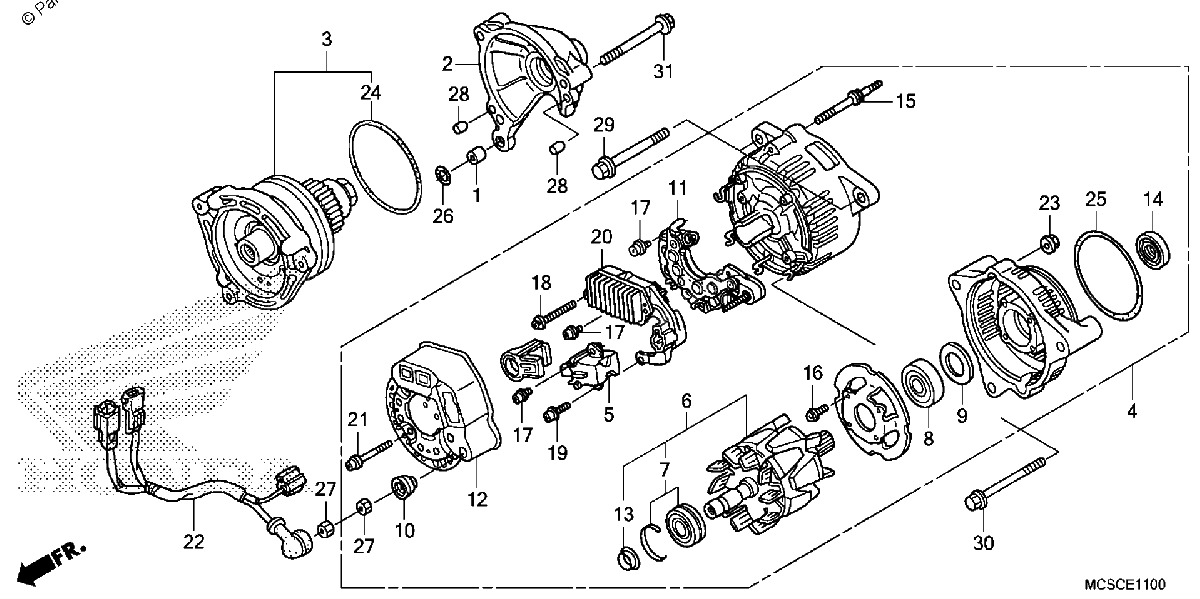

Diagrama de ALTERNATOR

Repuestos

#1
11104-MCS-000
ORIFICE (1.2MM)
$2.83¢1 414
1
#2
11203-MCS-000
HOLDER, ALTERNATOR BEARING
$97.39¢48 697
1
#3
13430-MCS-020
GEAR ASSY., ALTERNATOR DRIVEN
$522.34¢261 171
1
#4
31100-MCS-003
ALTERNATOR ASSY.
$1124.04¢562 022
1
#4
31100-MCS-013
ALTERNATOR ASSY.
$1124.04¢562 022
1
#5
31105-MAJ-G41
HOLDER ASSY., BRUSH
$49.81¢24 903
1
#6
31110-MCS-003
ROTOR ASSY.
$482.15¢241 074
1
#7
31111-MAJ-G41
BEARING, RR.
$34.33¢17 164
1
#8
31114-MCS-003
BEARING, FR.
$13.82¢6 911
1
#8
31114-MCS-013
BEARING, FR.
$13.82¢6 911
1
#9
31116-MCS-003
COVER, BEARING
$12.68¢6 342
1
#10
31119-MAJ-G41
BUSH, INSULATION
$8.61¢4 307
1
#11
31127-MCS-003
RECTIFIER ASSY.
$263.44¢131 721
1
#12
31135-MAJ-G41
COVER, RR. END
$28.83¢14 415
1
#13
31138-PD1-004
COVER, BEARING
$11.82¢5 911
1
#14
31141-MCS-003
OIL SEAL
$7.67¢3 835
1
#15
31145-PE9-941
BOLT, STUD
$7.06¢3 530
1
#16
31146-MAJ-G41
SCREW
$3.79¢1 897
1
#17
31147-PT0-003
SCREW-WASHER
$3.81¢1 903
1
#18
31148-PD1-004
SCREW-WASHER (4X25)
$4.05¢2 024
1
#19
31149-PZ1-003
SCREW
$2.20¢1 098
1
#20
31150-PZ3-003
REGULATOR ASSY.
$388.62¢194 310
1
#21
31153-PZ1-003
BOLT
$2.48¢1 242
1
#22
32130-MCS-000
SUB-HARNESS, ALTERNATOR
$28.69¢14 346
1
#23
90231-PD1-014
NUT-WASHER (5MM)
$2.94¢1 472
1
#24
91303-MCS-003
O-RING (95.5X2.4)
$7.29¢3 645
1
#25
91304-MAJ-G41
O-RING
$6.92¢3 461
1
#26
91305-422-000
O-RING (9.8X2.4)
$3.07¢1 535
1
#27
94001-06080-0S
NUT, HEX. (6MM)
$1.47¢736
1
#28
94302-08100
PIN B, DOWEL (8X10)
$2.66¢1 328
1
#29
95701-08065-00
BOLT, FLANGE (8X65)
$2.04¢1 018
1
#30
95701-08085-00
BOLT, FLANGE (8X85)
$3.09¢1 547
1
#31
95701-08090-00
BOLT, FLANGE (8X90)
$3.68¢1 840
1
