FRONT BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

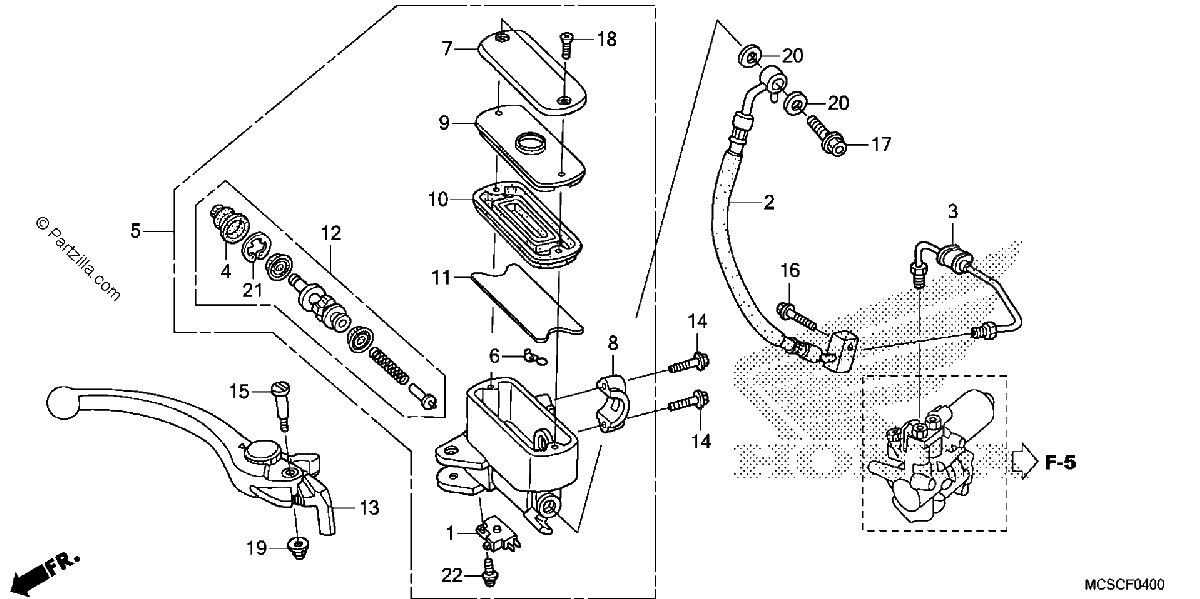

Diagrama de FRONT BRAKE MASTER CYLINDER

Repuestos

#1
35340-MM5-600
SWITCH Assembly., Front STOP
$25.14¢12 569
1
#2
45125-MCS-G02
HOSE A, FR. BRAKE
$92.85¢46 425
1
#3
45126-MCS-G02
PIPE A, FR. BRAKE
$17.21¢8 606
1
#4
45504-MCF-006
BOOT
$15.29¢7 644
1
#5
45510-MCS-305
MASTER CYLINDER SUB-ASSY., FR. (COO)
$347.25¢173 625
1
#6
45512-MA6-006
PROTECTOR
$5.20¢2 600
1
#7
45513-MR1-016
CAP, MASTER CYLINDER (NISSIN)
$35.54¢17 769
1
#8
45517-MCS-761
HOLDER, MASTER CYLINDER
$14.69¢7 344
1
#9
45518-MM5-006
PLATE, DIAPHRAGM
$12.36¢6 181
1
#10
45520-MM5-006
DIAPHRAGM
$17.68¢8 838
1
#11
45523-MN5-006
FLOAT, FR. MASTER CYLINDER (NISSIN)
$5.45¢2 725
1
#12
45530-MCS-R01
MASTER CYLINDER SET
$65.16¢32 581
1
#13
53170-MCS-305
LEVER ASSY., R. HANDLE (COO)
$66.51¢33 256
1
#14
96001-06022-00
BOLT, FLANGE (6X22)
$1.60¢800
1
#14
90010-GHB-660
BOLT, FLANGE (6X22)
$1.60¢800
1
#15
90114-MCF-006
BOLT, HANDLE LEVER
$7.05¢3 525
1
#16
90114-MCS-G00
BOLT, FLANGE (6X28)
$1.80¢900
1
#17
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#18
90158-MT7-000
SCREW, FLAT
$2.76¢1 381
1
#19
90201-415-000
NUT, CAP (6MM)
$2.76¢1 381
1
#20
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#21
90651-MCF-006
CIRCLIP
$2.91¢1 456
1
#22
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#22
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
