REAR CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

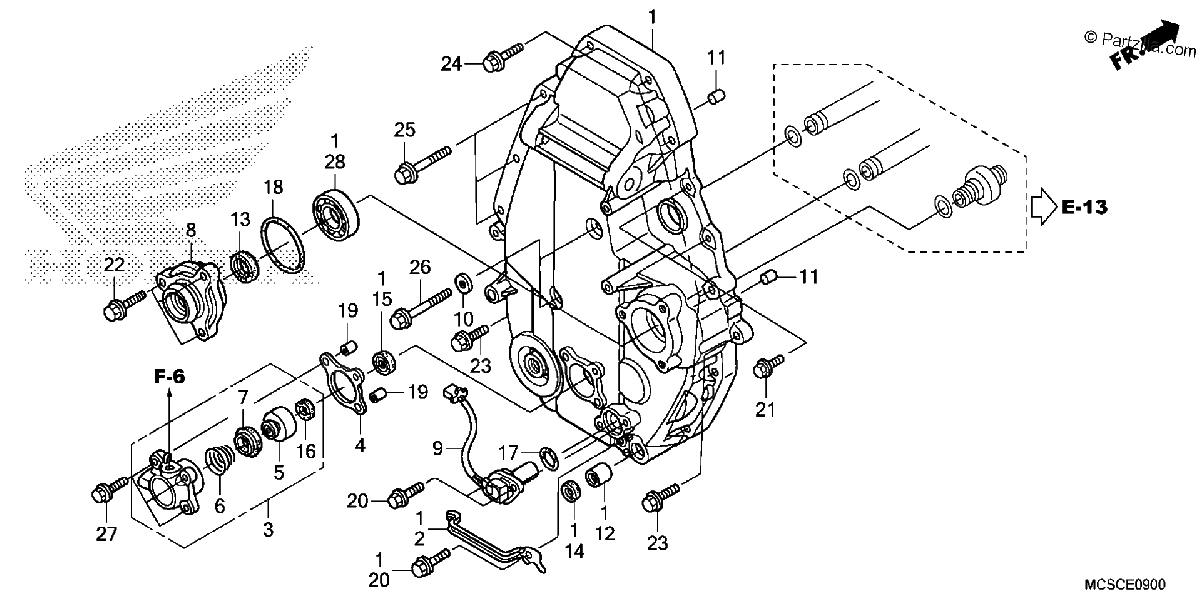

Diagrama de REAR CRANKCASE COVER

Repuestos

#1
21110-MCS-D80
CASE, RR.
$660.51¢330 256
1
#2
21114-MCS-000
CLAMP B, DRAIN HOSE
$7.95¢3 975
1
#3
22860-MCS-000
CYLINDER ASSY., CLUTCH SLAVE
$109.76¢54 881
1
#4
22862-MGJ-D00
GASKET, SLAVE CYLINDER
$6.04¢3 019
1
#5
22863-MJ8-003
PISTON, SLAVE CYLINDER
$30.94¢15 469
1
#6
22864-MT7-016
SPRING, SLAVE CYLINDER
$7.52¢3 762
1
#7
22865-MJ8-003
CUP, SLAVE CYLINDER
$13.35¢6 675
1
#8
23751-MCS-000
HOLDER, FINAL SHAFT BEARING
$36.34¢18 169
1
#9
37700-MCS-003
SENSOR ASSY., SPEED
$165.93¢82 963
1
#10
90463-MCS-000
WASHER, SEALING (8.5MM)
$2.89¢1 444
1
#11
90701-MV9-670
PIN, DOWEL (10X16)
$5.21¢2 606
1
#12
91106-MCF-003
BEARING, NEEDLE (14X22X16)
$14.57¢7 288
1
#13
91201-MV1-003
OIL SEAL (28X45X7)
$8.89¢4 444
1
#14
91203-KK3-830
OIL SEAL (14X22X5)
$4.63¢2 313
1
#15
91204-MB0-013
OIL SEAL (8X25X8) (ARAI)
$4.91¢2 456
1
#16
91209-MB0-003
OIL SEAL (8X18X5)
$4.91¢2 456
1
#17
91302-MAL-601
O-RING (18.1X3.6)
$4.28¢2 138
1
#18
91351-881-000
O-RING (66MM)
$5.58¢2 788
1
#19
94301-08100
PIN, DOWEL (8X10)
$2.89¢1 444
1
#20
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
#21
95701-06020-00
BOLT, FLANGE (6X20)
$2.27¢1 138
1
#22
95701-08028-00
BOLT, FLANGE (8X28)
$1.79¢894
1
#23
95701-08032-00
BOLT, FLANGE (8X32)
$1.79¢894
1
#24
95701-08040-00
BOLT, FLANGE (8X40)
$1.54¢769
1
#25
95701-08075-00
BOLT, FLANGE (8X75)
$3.44¢1 719
1
#26
95701-08085-00
BOLT, FLANGE (8X85)
$3.36¢1 681
1
#27
96001-06022-00
BOLT, FLANGE (6X22)
$1.60¢800
1
#28
96100-62063-00
BEARING, RADIAL BALL (6206)
$25.10¢12 550
1
