FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

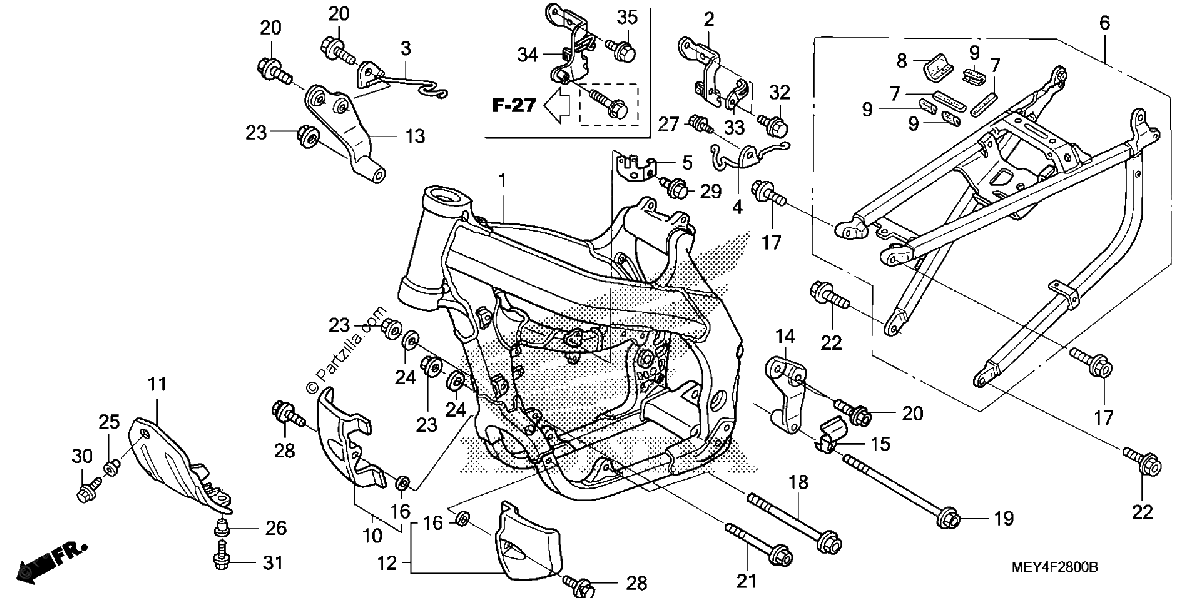

Diagrama de FRAME

Repuestos

#1
50100-MEY-A20
FRAME
$3624.78¢1 812 388
1
#3
50170-MEY-670
GUIDE, CLUTCH CABLE
$11.19¢5 594
1
#4
50171-MEY-670
GUIDE, BREATHER
$14.04¢7 019
1
#5
50180-MEY-A20
STAY, CONNECTOR
$10.51¢5 256
1
#6
50200-MEY-A20
FRAME, RR.
$843.01¢421 506
1
#7
50283-KSC-300
RUBBER, BATTERY
$1.74¢869
1
#8
50283-MEY-670
RUBBER, BATTERY
$1.47¢737
1
#9
50283-MR7-300
RUBBER, SEAT RAIL
$3.65¢1 825
1
#10
50356-MEY-670
GUARD, R. ENGINE
$26.09¢13 044
1
#11
50357-MEY-670
GUARD, CENTER ENGINE
$41.19¢20 594
1
#12
50360-MEY-670
GUARD, L. ENGINE
$27.31¢13 656
1
#13
50407-MEY-670
PLATE, R. HEAD HANGER
$102.17¢51 088
1
#14
50408-MEY-670
PLATE, L. HEAD HANGER
$94.10¢47 050
1
#15
50410-MEN-670
GUIDE, FUEL TUBE
$10.93¢5 463
1
#16
50618-KE8-000
COLLAR (6.5X11X3)
$3.65¢1 825
1
#17
90122-KRN-000
BOLT, FLANGE (10X26)
$3.17¢1 588
1
#18
90101-MEN-670
BOLT, FLANGE (10X132)
$7.21¢3 606
1
#19
90102-MEY-670
BOLT, FLANGE (10X172)
$10.80¢5 400
1
#20
90103-MEB-670
BOLT, FLANGE (8X18)
$2.52¢1 263
1
#21
90104-MEY-670
BOLT, FLANGE (10X126)
$8.69¢4 344
1
#22
90122-KRN-000
BOLT, FLANGE (10X26)
$3.17¢1 588
1
#23
90302-KZ3-J40
NUT, FLANGE (10MM)
$3.50¢1 750
1
#24
90410-HC4-000
WASHER (10MM)
$4.63¢2 313
1
#25
90503-MEY-670
COLLAR, FR. ENGINE GUARD
$4.45¢2 225
1
#26
90504-MEY-670
COLLAR, ENGINE GUARD
$3.81¢1 906
1
#27
93401-05010-00
BOLT-WASHER (5X10)
$1.31¢656
1
#28
93404-06020-00
BOLT-WASHER (6X20)
$2.09¢1 044
1
#29
96001-06010-00
BOLT, FLANGE (6X10)
$2.09¢1 044
1
#30
96001-06020-00
BOLT, FLANGE (6X20)
$1.60¢800
1
#31
96001-06020-00
BOLT, FLANGE (6X20)
$1.60¢800
1
#34
50131-MEY-A20
STAY, IGNITION COIL
$23.84¢11 919
1
#35
96001-06012-00
BOLT, FLANGE (6X12)
$2.31¢1 156
1
