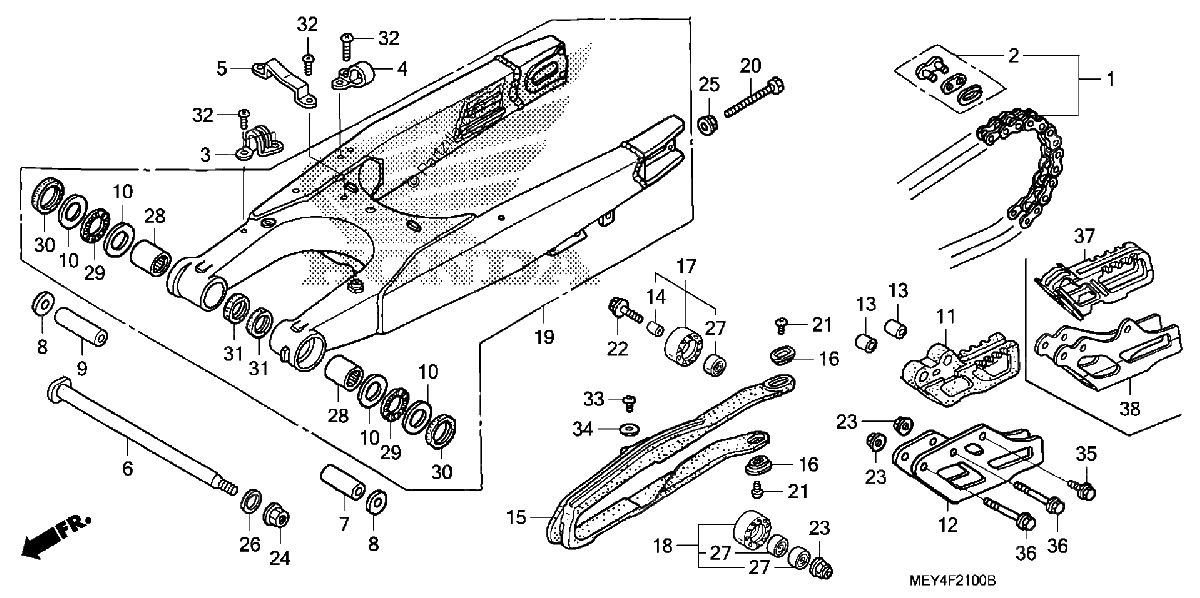

SWINGARM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CHAIN, DRIVE (DID520MXV-120ZB) (DAIDO)
$265.94¢132 969
#2
MASTER LINK
$13.38¢6 688
#3
GUIDE, BRAKE HOSE
$10.76¢5 381
#4
GUIDE, RR. BRAKE HOSE
$4.68¢2 338
#5
GUIDE, BRAKE HOSE
$5.64¢2 819
#6
SHAFT, SWINGARM PIVOT
$29.70¢14 850
#7
COLLAR, SWINGARM (46MM)
$29.24¢14 619
#8
COLLAR, SWINGARM PIVOT SIDE
$4.97¢2 488
#9
COLLAR, SWINGARM SIDE (54MM)
$19.63¢9 813
#10
WASHER, SWINGARM SIDE
$3.91¢1 956
#14
COLLAR, CHAIN TENSIONER
$3.50¢1 750
#15
SLIDER, CHAIN
$79.67¢39 838
#16
WASHER, CHAIN SLIDER
$3.33¢1 663
#17
ROLLER, CHAIN (42MM)
$45.86¢22 931
#18
ROLLER, CHAIN (LOWER)
$41.86¢20 931
#19
SWINGARM SUB-ASSY., RR.
$1313.33¢656 663
#20
BOLT, HEX. (8X47.5)
$3.65¢1 825
#21
SCREW, PAN (5X8)
$3.36¢1 681
#22
BOLT, FLANGE (8X32)
$2.63¢1 313
#23
NUT, U (6MM) (FUSE RASHI)
$4.94¢2 469
#24
NUT, U HEX. (14MM)
$7.05¢3 525
#25
NUT, HEX. (8MM)
$4.13¢2 063
#26
WASHER (26X14X2.8)
$8.05¢4 025
#26
WASHER (14MM)
$8.05¢4 025
#27
BEARING, RADIAL BALL (608UU)
$21.89¢10 944
#28
BEARING, NEEDLE (22X29X30) (NTN)
$50.32¢25 162
#29
BEARING, NEEDLE THRUST
$15.63¢7 813
#30
DUST SEAL (30X37X4)
$10.15¢5 075
#31
DUST SEAL (22X29X4) (ARAI)
$7.18¢3 588
#32
SCREW, PAN (5X8)
$1.13¢563
#33
SCREW, PAN (5X8)
$1.16¢581
#34
WASHER, PLAIN (5MM)
$1.21¢606
#35
BOLT, FLANGE (6X12)
$2.31¢1 156
#36
BOLT, FLANGE (6X45)
$2.52¢1 263
#37
GUIDE, CHAIN
$40.20¢20 100
#38
PLATE, CHAIN GUIDE
$55.03¢27 513
