HANDLEBAR TOP BRIDGE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

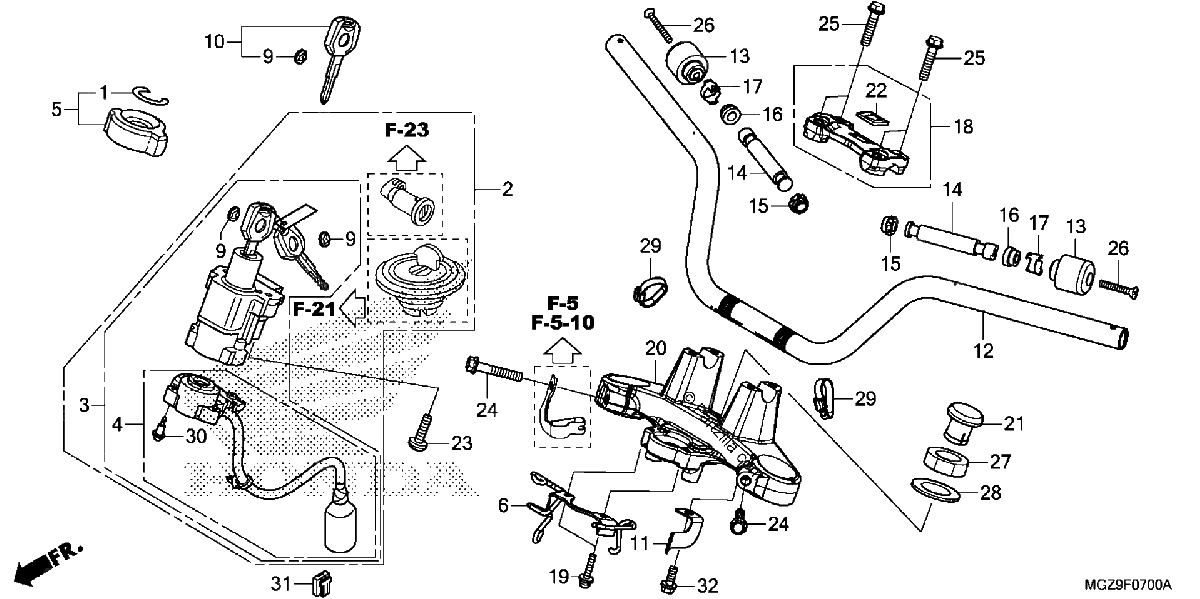

Diagrama de HANDLEBAR TOP BRIDGE

Repuestos

#1
30433-MBW-602
SEAL, IGNITION SWITCH
$3.65¢1 825
1
#001
30433-MBW-602
SEAL, IGNITION SWITCH
$3.65¢1 825
1
#2
35010-MGZ-A00
LOCK SET
$314.45¢157 225
1
#002
35010-MGZ-A00
LOCK SET
$314.45¢157 225
1
#002
35010-MGZ-A01
LOCK SET
$314.45¢157 225
1
#2
35010-MGZ-A01
LOCK SET
$314.45¢157 225
1
#3
35100-MGZ-A01
SWITCH Assembly., COMBINATION & LOCK
$388.84¢194 419
1
#003
35100-MGZ-A01
SWITCH Assembly., COMBINATION & LOCK
$388.84¢194 419
1
#3
35100-MGZ-A02
SWITCH Assembly., COMBINATION & LOCK (MSDS)
$388.84¢194 419
1
#003
35100-MGZ-A02
SWITCH Assembly., COMBINATION & LOCK (MSDS)
$388.84¢194 419
1
#004
35101-MGZ-J01
BASE, CONTACT
$54.81¢27 406
1
#4
35101-MGZ-J01
BASE, CONTACT
$54.81¢27 406
1
#5
35106-MAT-A00
COVER, COMBINATION SWITCH
$12.21¢6 106
1
#005
35106-MAT-A00
COVER, COMBINATION SWITCH
$12.21¢6 106
1
#006
35106-MGZ-J01
GUIDE, CABLE
$19.10¢9 550
1
#6
35106-MGZ-J01
GUIDE, CABLE
$19.10¢9 550
1
#009
35113-MFJ-D01
EMBLEM, KEY
$3.65¢1 825
1
#9
35113-MFJ-D01
EMBLEM, KEY
$3.65¢1 825
1
#010
35121-MGS-A31
KEY, BLANK
$27.43¢13 713
1
#10
35121-MGS-A31
KEY, BLANK
$27.43¢13 713
1
#11
35910-MGZ-J00
GUIDE, L. FR. WIRE
$3.04¢1 519
1
#011
35910-MGZ-J00
GUIDE, L. FR. WIRE
$3.04¢1 519
1
#12
53100-MGZ-307ZA
HANDLEBAR NH303M (COO)(MAT AXIS GRAY METALLIC)
$54.52¢27 263
1
#012
53100-MGZ-307ZA
HANDLEBAR NH303M (COO)(MAT AXIS GRAY METALLIC)
$54.52¢27 263
1
#13
53104-MGZ-J80
WEIGHT, HANDLEBAR
$11.50¢5 750
1
#013
53104-MGZ-J80
WEIGHT, HANDLEBAR
$11.50¢5 750
1
#14
53105-MGZ-J80
WEIGHT B, HANDLEBAR
$8.22¢4 113
1
#014
53105-MGZ-J80
WEIGHT B, HANDLEBAR
$8.22¢4 113
1
#015
53106-KR3-770
RUBBER A, HANDLE WEIGHT
$4.76¢2 381
1
#15
53106-KR3-770
RUBBER A, HANDLE WEIGHT
$4.76¢2 381
1
#16
53107-MY1-000
RUBBER B, HANDLE WEIGHT
$8.49¢4 244
1
#016
53107-MY1-000
RUBBER B, HANDLE WEIGHT
$8.49¢4 244
1
#017
53108-KR3-770
RING, HANDLE WEIGHT SNAP
$7.55¢3 775
1
#17
53108-KR3-770
RING, HANDLE WEIGHT SNAP
$7.55¢3 775
1
#018
53130-MGS-D30ZB
HOLDER ASSY., HANDLE (UPPER) *NH303M* (MAT AXIS GRAY METALLIC)
$48.71¢24 356
1
#18
53130-MGS-D30ZB
HOLDER ASSY., HANDLE (UPPER) *NH303M* (MAT AXIS GRAY METALLIC)
$48.71¢24 356
1
#19
53192-MFL-000
SCREW-WASHER (5X25)
$2.38¢1 188
1
#019
53192-MFL-000
SCREW-WASHER (5X25)
$2.38¢1 188
1
#020
53230-MGZ-J40
BRIDGE, FORK TOP
$128.61¢64 306
1
#20
53230-MGZ-J40
BRIDGE, FORK TOP
$128.61¢64 306
1
#021
53232-MJ4-670
CAP, STEERING STEM NUT
$15.70¢7 850
1
#21
53232-MJ4-670
CAP, STEERING STEM NUT
$15.70¢7 850
1
#22
86150-KPG-901
EMBLEM, PRODUCT (MARUI)
$4.39¢2 194
1
#022
86150-KPG-901
EMBLEM, PRODUCT (MARUI)
$4.39¢2 194
1
#022
86150-KPG-902
EMBLEM, PRODUCT (UEHARA)
$5.16¢2 581
1
#22
86150-KPG-902
EMBLEM, PRODUCT (UEHARA)
$5.16¢2 581
1
#23
90107-MBG-000
BOLT, ONE-WAY (8MM)
$3.65¢1 825
1
#023
90107-MBG-000
BOLT, ONE-WAY (8MM)
$3.65¢1 825
1
#024
90108-KZZ-900
BOLT, FLANGE (8X40)
$0.94¢469
1
#24
90108-KZZ-900
BOLT, FLANGE (8X40)
$0.94¢469
1
#25
90111-362-000
BOLT, FLANGE (8X36)
$5.83¢2 913
1
#025
90111-362-000
BOLT, FLANGE (8X36)
$5.83¢2 913
1
#26
90191-MGZ-J00
SCREW, OVAL (6X60)
$1.85¢925
1
#026
90191-MGZ-J00
SCREW, OVAL (6X60)
$1.85¢925
1
#027
90304-KGA-900
NUT, STEERING STEM
$3.69¢1 844
1
#27
90304-KGA-900
NUT, STEERING STEM
$3.69¢1 844
1
#028
90503-KGA-900
WASHER, STEERING STEM
$1.93¢963
1
#28
90503-KGA-900
WASHER, STEERING STEM
$1.93¢963
1
#29
90650-KW3-000
BAND, WIRE
$5.42¢2 713
1
#029
90650-KW3-000
BAND, WIRE
$5.42¢2 713
1
#030
91059-KY2-711
SCREW, TAPPING (3X16)
$3.65¢1 825
1
#30
91059-KY2-711
SCREW, TAPPING (3X16)
$3.65¢1 825
1
#031
91554-SM4-003
HOLDER, BRACKET (RED)
$10.06¢5 031
1
#31
91554-SM4-003
HOLDER, BRACKET (RED)
$10.06¢5 031
1
#032
95701-08018-00
BOLT, FLANGE (8X18)
$2.31¢1 156
1
#32
95701-08018-00
BOLT, FLANGE (8X18)
$2.31¢1 156
1
