REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

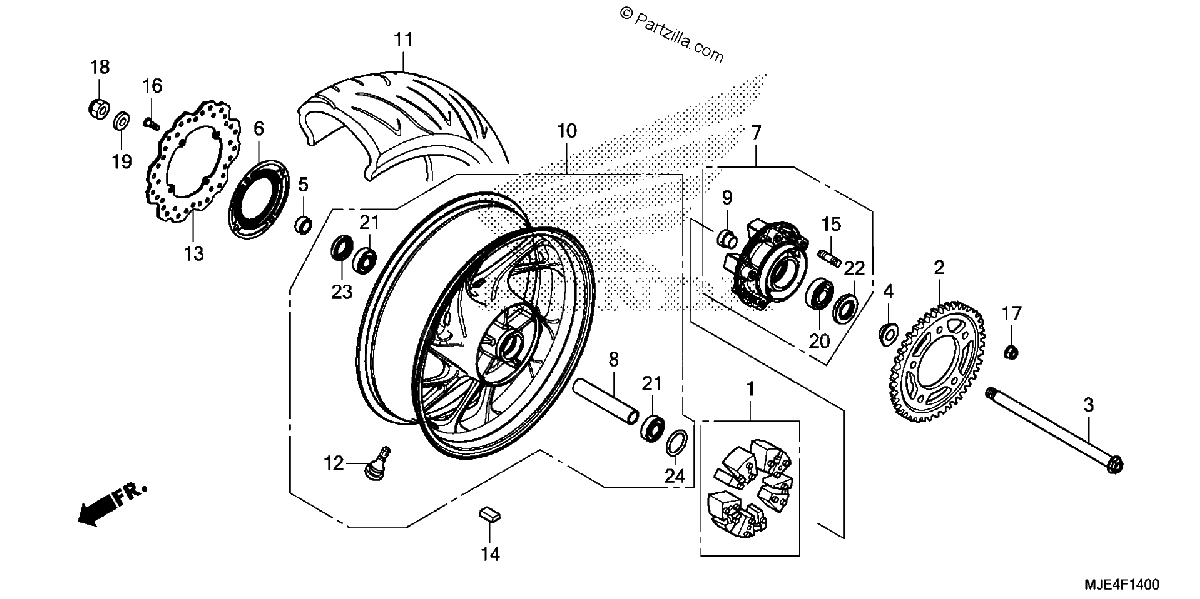

Diagrama de REAR WHEEL

Repuestos

#001
06410-MER-D00
DAMPER SET, WHEEL
$107.21¢53 607
1
#1
06410-MER-D00
DAMPER SET, WHEEL
$107.21¢53 607
1
#2
41201-MBZ-G01
SPROCKET, FINAL DRIVEN (42T)
$59.68¢29 842
1
#002
41201-MBZ-G01
SPROCKET, FINAL DRIVEN (42T)
$59.68¢29 842
1
#003
42301-MJE-D00
AXLE, RR. WHEEL
$38.34¢19 171
1
#3
42301-MJE-D00
AXLE, RR. WHEEL
$38.34¢19 171
1
#004
42311-MER-D00
COLLAR, L. RR. WHEEL SIDE
$22.11¢11 057
1
#4
42311-MER-D00
COLLAR, L. RR. WHEEL SIDE
$22.11¢11 057
1
#5
42312-MER-D00
COLLAR, Rear BRAKE SIDE
$12.91¢6 457
1
#005
42312-MER-D00
COLLAR, Rear BRAKE SIDE
$12.91¢6 457
1
#7
42615-MJE-D00
FLANGE SUB-Assembly., Rear DRIVEN
$157.02¢78 511
1
#007
42615-MJE-D00
FLANGE SUB-Assembly., Rear DRIVEN
$157.02¢78 511
1
#8
42620-MJE-D00
COLLAR, Front AXLE DISTANCE (Rear.)
$13.33¢6 664
1
#008
42620-MJE-D00
COLLAR, Front AXLE DISTANCE (Rear.)
$13.33¢6 664
1
#9
42625-MER-D00
COLLAR B, RR. WHEEL DISTANCE
$22.06¢11 029
1
#009
42625-MER-D00
COLLAR B, RR. WHEEL DISTANCE
$22.06¢11 029
1
#010
42650-MJE-305ZA
WHEEL SUB-ASSY., RR. (TYPE1) (COO)
$1294.30¢647 151
1
#10
42650-MJE-305ZA
WHEEL SUB-ASSY., RR. (TYPE1) (COO)
$1294.30¢647 151
1
#11
42711-MJE-D01
TIRE, Rear. (180/55ZR17) (M/C 73W) (DUNLOP)
$354.30¢177 152
1
#011
42711-MJE-D01
TIRE, Rear. (180/55ZR17) (M/C 73W) (DUNLOP)
$354.30¢177 152
1
#11
42711-MJE-D02
TIRE, Rear. (180/55ZR17) (M/C 73W) (METZELER) (NOT AVAILABLE)
No Disponible
1
#011
42711-MJE-D02
TIRE, Rear. (180/55ZR17) (M/C 73W) (METZELER) (NOT AVAILABLE)
No Disponible
1
#011
42711-MJE-D03
TIRE, RR. (180/55ZR17) (M/C 73W) (DUNLOP)
No Disponible
1
#012
42753-K38-901
VALVE, RIM
$0.66¢328
1
#012
42753-KWF-901
VALVE, RIM (TRITON)
$0.66¢328
1
#12
42753-KWF-901
VALVE, RIM (TRITON)
$0.66¢328
1
#012
42753-ML7-003
VALVE, RIM (BS)
$13.60¢6 802
1
#12
42753-ML7-003
VALVE, RIM (BS)
$13.60¢6 802
1
#012
42753-ML7-004
VALVE, RIM (DUNLOP)
$13.60¢6 802
1
#12
42753-ML7-004
VALVE, RIM (DUNLOP)
$13.60¢6 802
1
#12
42753-MR4-901
VALVE, RIM (SCHRADER)
$13.60¢6 802
1
#012
42753-MR4-901
VALVE, RIM (SCHRADER)
$13.60¢6 802
1
#013
43251-MGZ-J02
DISK, Rear BRAKE (SUNSTAR)
$90.24¢45 120
1
#013
43251-MGZ-J01
DISK, Rear BRAKE (SUNSTAR)
$90.24¢45 120
1
#13
43251-MGZ-J01
DISK, Rear BRAKE (SUNSTAR)
$90.24¢45 120
1
#014
44721-SEA-N02
WEIGHT, BALANCE (10G) (TOHO ZINK)
$5.01¢2 507
1
#14
44721-SEA-N02
WEIGHT, BALANCE (10G) (TOHO ZINK)
$5.01¢2 507
1
#014
44722-SEA-N02
WEIGHT, BALANCE (20G) (TOHO ZINK)
$5.84¢2 921
1
#14
44722-SEA-N02
WEIGHT, BALANCE (20G) (TOHO ZINK)
$5.84¢2 921
1
#14
44723-SEA-N02
WEIGHT, BALANCE (30G) (TOHO ZINK)
$7.11¢3 553
1
#014
44723-SEA-N02
WEIGHT, BALANCE (30G) (TOHO ZINK)
$7.11¢3 553
1
#014
44726-SEA-N02
WEIGHT, BALANCE (5G) (TOHO ZINK)
$1.06¢529
1
#14
44726-SEA-N02
WEIGHT, BALANCE (5G) (TOHO ZINK)
$1.06¢529
1
#014
44727-SEA-N02
WEIGHT, BALANCE (15G) (TOHO ZINK)
$3.12¢1 558
1
#14
44727-SEA-N02
WEIGHT, BALANCE (15G) (TOHO ZINK)
$3.12¢1 558
1
#014
44728-SEA-N02
WEIGHT, BALANCE (25G) (TOHO ZINK)
$6.64¢3 318
1
#14
44728-SEA-N02
WEIGHT, BALANCE (25G) (TOHO ZINK)
$6.64¢3 318
1
#15
90102-MAS-000
BOLT, STUD (12X25)
$4.47¢2 237
1
#015
90102-MAS-000
BOLT, STUD (12X25)
$4.47¢2 237
1
#016
90105-MGS-D30
BOLT, DISK (8X25)
$3.36¢1 679
1
#16
90105-MGS-D30
BOLT, DISK (8X25)
$3.36¢1 679
1
#17
90306-KGH-901
NUT, U (12MM) (FUJI SEIMITSU)
$3.04¢1 518
1
#017
90306-KGH-901
NUT, U (12MM) (FUJI SEIMITSU)
$3.04¢1 518
1
#018
90306-MJE-D01
NUT, U (18MM)
$9.79¢4 893
1
#18
90306-MJE-D01
NUT, U (18MM)
$9.79¢4 893
1
#19
90401-MAS-000
WASHER (20X31.5X2)
$3.58¢1 788
1
#019
90401-MAS-000
WASHER (20X31.5X2)
$3.58¢1 788
1
#20
91051-MAS-003
BEARING, RADIAL BALL (6322)
$42.76¢21 379
1
#020
91051-MAS-003
BEARING, RADIAL BALL (6322)
$42.76¢21 379
1
#021
91053-MGS-D31
BEARING, RADIAL BALL (6204UU)
$13.90¢6 952
1
#21
91053-MGS-D31
BEARING, RADIAL BALL (6204UU)
$13.90¢6 952
1
#022
91252-MAS-003
DUST SEAL (30X56X7.5)
$12.95¢6 474
1
#22
91252-MAS-003
DUST SEAL (30X56X7.5)
$12.95¢6 474
1
#023
91253-MAE-003
DUST SEAL (30X47X7.5)
$17.03¢8 516
1
#23
91253-MAE-003
DUST SEAL (30X47X7.5)
$17.03¢8 516
1
#24
91351-MGS-D30
O-RING (55X2)
$3.36¢1 679
1
#024
91351-MGS-D30
O-RING (55X2)
$3.36¢1 679
1
