CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

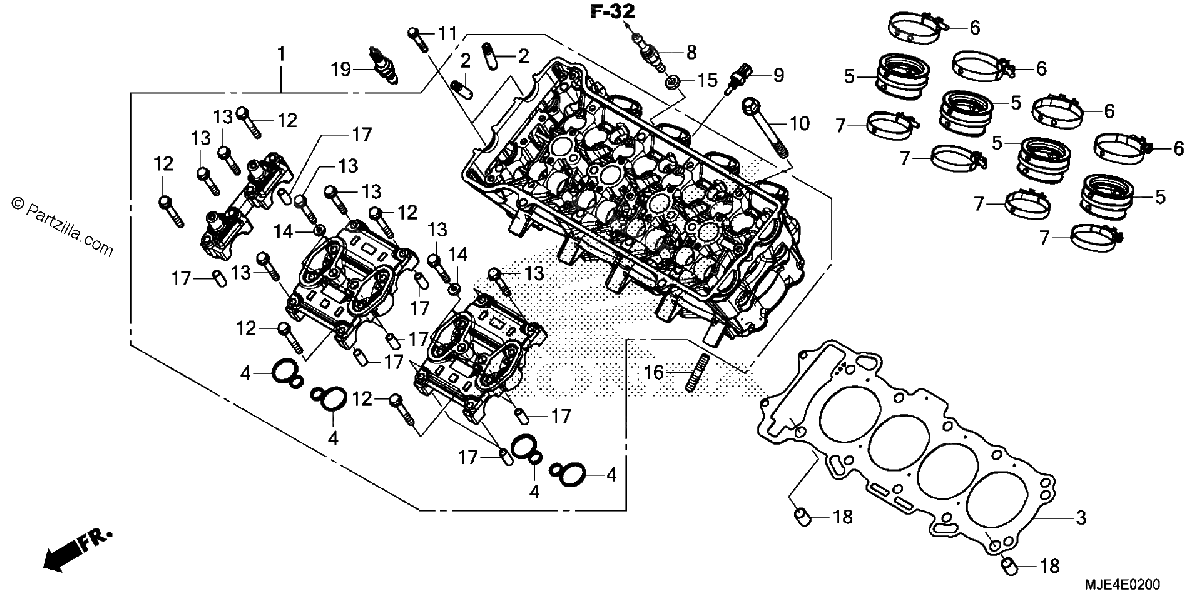

Diagrama de CYLINDER HEAD

Repuestos

#001
12010-MJE-D00
CYLINDER HEAD ASSY.
$976.47¢488 237
1
#1
12010-MJE-D00
CYLINDER HEAD ASSY.
$976.47¢488 237
1
#2
12205-KYJ-305
GUIDE, EX. VALVE (OVER SIZE)
$22.50¢11 250
1
#002
12205-KYJ-305
GUIDE, EX. VALVE (OVER SIZE)
$22.50¢11 250
1
#003
12251-MJE-D01
GASKET, CYLINDER HEAD
$54.21¢27 106
1
#3
12251-MJE-D01
GASKET, CYLINDER HEAD
$54.21¢27 106
1
#004
12395-MBW-003
GASKET, PLUG HOLE
$5.64¢2 819
1
#4
12395-MBW-003
GASKET, PLUG HOLE
$5.64¢2 819
1
#5
16211-MJE-D00
INSULATOR, THROTTLE BODY
$65.00¢32 500
1
#005
16211-MJE-D00
INSULATOR, THROTTLE BODY
$65.00¢32 500
1
#006
16217-MJE-D00
BAND A, INSULATOR
$9.45¢4 725
1
#6
16217-MJE-D00
BAND A, INSULATOR
$9.45¢4 725
1
#007
16218-MJE-D00
BAND B, INSULATOR
$9.00¢4 500
1
#7
16218-MJE-D00
BAND B, INSULATOR
$9.00¢4 500
1
#008
19410-MJE-D00
JOINT, BLEEDING
$69.10¢34 550
1
#8
19410-MJE-D00
JOINT, BLEEDING
$69.10¢34 550
1
#009
37870-MGS-D31
SENSOR ASSY., WATER TEMPERATURE
$58.26¢29 131
1
#9
37870-MGS-D31
SENSOR ASSY., WATER TEMPERATURE
$58.26¢29 131
1
#10
90007-MGZ-J00
BOLT-WASHER (9X100)
$6.27¢3 137
1
#010
90007-MGZ-J00
BOLT-WASHER (9X100)
$6.27¢3 137
1
#11
90011-MGZ-J00
BOLT, FLANGE (6X35)
$0.61¢306
1
#011
90011-MGZ-J00
BOLT, FLANGE (6X35)
$0.61¢306
1
#012
90017-MA6-000
BOLT, FLANGE (6X45.5)
$4.06¢2 031
1
#12
90017-MA6-000
BOLT, FLANGE (6X45.5)
$4.06¢2 031
1
#13
90019-KYJ-900
BOLT, FLANGE (6X39.5)
$1.06¢531
1
#013
90019-KYJ-900
BOLT, FLANGE (6X39.5)
$1.06¢531
1
#014
90463-ML7-000
WASHER, SEALING (6.5MM)
$3.65¢1 825
1
#14
90463-ML7-000
WASHER, SEALING (6.5MM)
$3.65¢1 825
1
#15
90544-439-930
GASKET (SHOWA)
$2.75¢1 375
1
#015
90544-439-930
GASKET (SHOWA)
$2.75¢1 375
1
#16
92900-08022-3E
BOLT, STUD (8X22)
$2.97¢1 487
1
#016
92900-08022-3E
BOLT, STUD (8X22)
$2.97¢1 487
1
#17
94301-08200
PIN, DOWEL (8X20)
$2.89¢1 444
1
#017
94301-08200
PIN, DOWEL (8X20)
$2.89¢1 444
1
#018
94301-12160
PIN A, DOWEL (12X16)
$2.92¢1 463
1
#18
94301-12160
PIN A, DOWEL (12X16)
$2.92¢1 463
1
#19
98059-59910
SPARK PLUG (CR9EH9) (NGK)
$9.51¢4 756
1
#019
98059-59910
SPARK PLUG (CR9EH9) (NGK)
$9.51¢4 756
1
#19
98059-59916
SPARK PLUG (CR9EH-9) (NGK)
$9.51¢4 756
1
#019
98059-59916
SPARK PLUG (CR9EH-9) (NGK)
$9.51¢4 756
1
#019
98059-59926
SPARK PLUG (U27FER9) (DENSO)
$9.51¢4 756
1
#19
98059-59926
SPARK PLUG (U27FER9) (DENSO)
$9.51¢4 756
1
