FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

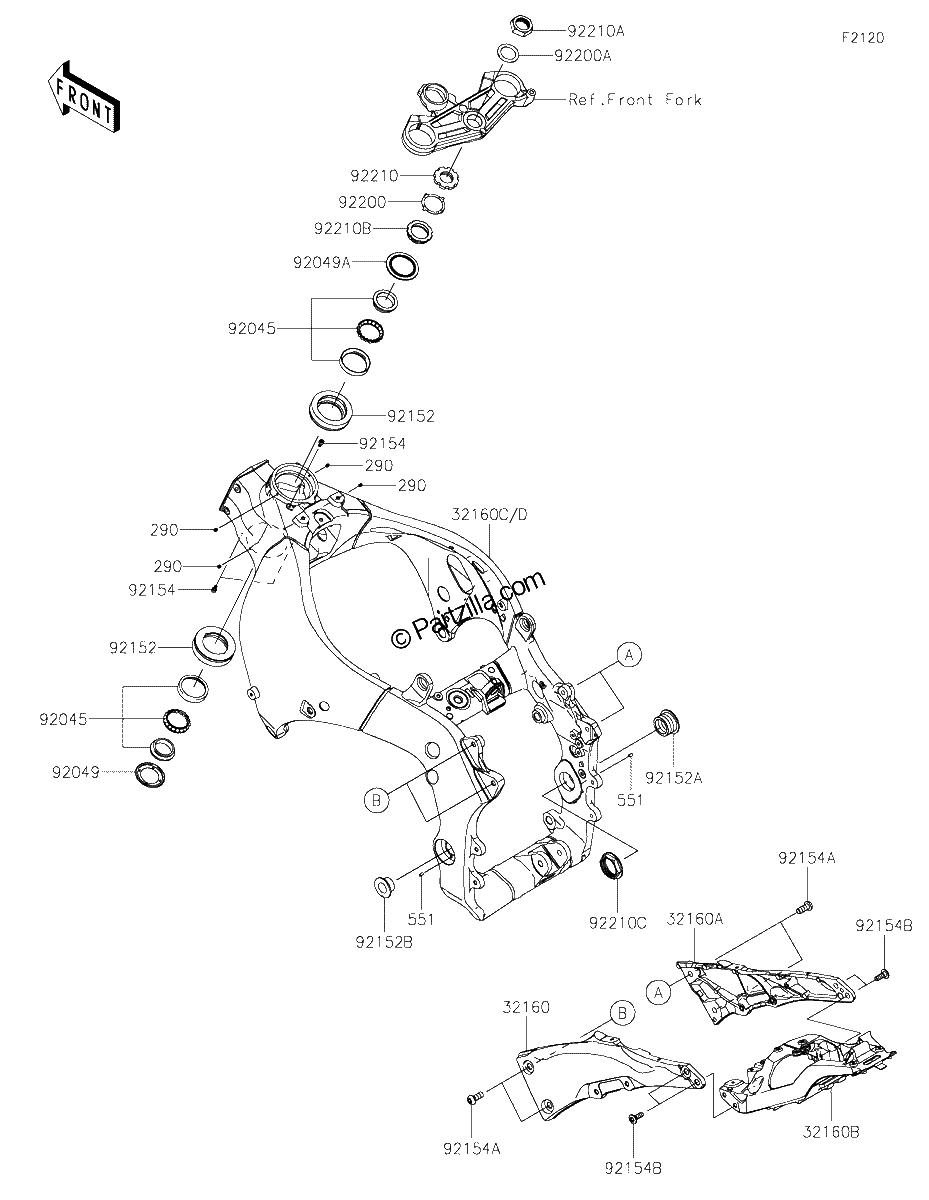

Diagrama de FRAME

Repuestos

#290
290Q0506
SCREW SET SOCKET,5X6
$3.85¢1 925
1
#551
551R0408
PIN DOWEL
$5.34¢2 669
1
#32160
32160-0885-18R
FRAME COMP,Rear,Left Hand,F S BLACK
$311.00¢155 500
1
#32160D
32160-1872-18R
FRAME COMP,MAIN,F S BLACK
$2887.29¢1 443 644
1
#32160C
32160-1872
FRAME-COMP,MAIN
$2887.29¢1 443 644
1
#32160B
32160-1865
FRAME-COMP,RR
$254.31¢127 156
1
#32160A
32160-0886-18R
FRAME COMP,Rear,Right Hand,F S BLACK
$311.00¢155 500
1
#92045
92045-1384
BEARING BALL,SF07A17PX1V1
$52.01¢26 006
1
#92049A
92049-0742
SEAL-OIL,43X55.5X8.6
$19.64¢9 819
1
#92049
92049-0022
SEAL-OIL,DS35X55X4
$17.09¢8 544
1
#92152B
92152-2812
COLLAR,PIVOT,LH
$53.10¢26 550
1
#92152A
92152-2811
COLLAR,PIVOT,RH
$85.71¢42 856
1
#92152
92152-2165
COLLAR,55X77X18.5
$144.47¢72 238
1
#92154B
92154-1901
BOLT,SOCKET,8X23
$3.57¢1 787
1
#92154A
92154-1900
BOLT,SOCKET,10X25
$4.92¢2 463
1
#92154
92154-1642
BOLT,SOCKET,5X10
$1.55¢775
1
#92200A
92200-0595
WASHER,28.5X40X1.6
$4.30¢2 150
1
#92200
92200-0036
WASHER
$4.96¢2 481
1
#92210B
92210-0823
NUT,35MM
$26.72¢13 362
1
#92210A
92210-0209
NUT,28MM
$20.36¢10 181
1
#92210
92210-0095
NUT,35MM
$17.94¢8 969
1
#92210C
92210-1441
NUT,38MM
$60.46¢30 231
1
